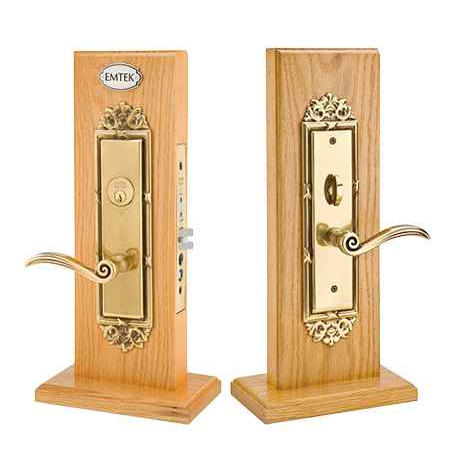

Emtek 3507 Regency Mortise Entrance Lockset - Entry Set

Yes, handing is required on every 3507 mortise order. The choices are LH, RH, LHR and RHR, with the reverse (R) options being the ones for out-swing doors. Mortise lock bodies are not field reversible here, so pick by standing outside the door: if the hinges are on your left and the door swings away from you, that is LH; hinges left and swinging toward you is LHR.

The 3507 is offered in 2-1/2 inch and 2-3/4 inch backsets, and the lock case is cut for standard mortise door prep to ANSI A115.1. If the door already carries an A115.1 mortise pocket, match your existing backset measurement (center of the knob or lever spindle to the door edge) and the case will seat in the same pocket. A 2-1/2 inch body will not line up in a pocket machined for 2-3/4 inch.

F20 is the entrance function: the outside knob or lever is locked or unlocked by key or by the inside turn piece, and it stays as you set it. F13 is dormitory function, where the outside trim relocks itself once the door closes so nobody can leave the entry unlocked by accident. Both are offered on the 3507 Regency set, and it is an order-time choice, not something you change later.

The mortise lock in the 3507 Regency entrance set carries a UL 180 minute fire rating, so it suits openings calling for a 3 hour rated lock. Bear in mind the rating covers the lock, not the door assembly, so the door, frame and closer still have to satisfy the opening's rating on their own.

Standard build is for a 1-3/4 inch door, which is the usual thickness for an exterior entry door. Thicker doors are handled, but the thickness has to be called out on the order so the spindles and screw lengths come correct. There is a door thickness field on the order for exactly that.

The 3507 uses a Schlage C keyway, so it takes standard SC1 blanks and can be keyed into an existing Schlage C system. It is a single cylinder lock, keyed outside with a turn piece inside. Keying to a code is available at order time, along with keyed alike or keyed different if you are doing several openings.

The Baldwin 6301 entry/apartment mortise lock body is the nearest decorative-brand counterpart. Like the Emtek 3507, it is an entrance-function mortise lock, and it shares the 2-1/2 inch backset that the 3507 also offers alongside 2-3/4 inch. Baldwin lists the 6301 for doors 1-3/4 inch and over, while the 3507 is built around 1-3/4 inch standard with thicker doors specified at order. The 6301 comes as knob by knob; a lever by lever version is the 6301LS. The Emtek 3507 differs in that it is sold as a complete set including latch and strike plate, with trim chosen from brass knobs, crystal and porcelain knobs, or levers.

The Emtek 3507 Regency is an entry-function residential mortise set, offered in F20 Entrance and F13 Dormitory functions. For a storeroom opening, the Accentra 8805FL is a Grade 1 storeroom mortise lock from the 8800 series with an Arcadia lever, and the Cal-Royal NM8080 is a Grade 1 storeroom mortise lockset with an interchangeable core option for doors 1-3/4 inch thick. Baldwin's 6310 is an entry/storeroom mortise lock body on a 2-1/2 inch backset for doors 1-3/8 inch and over if you want a decorative look on a storeroom function.

The Emtek 3507 Regency is a residential entry mortise set, UL listed with ANSI F20 or F13 function and a UL 180 minute fire rating. If the drawing calls out a Grade 1 office or entrance mortise lockset, the Cal-Royal NM8050 is a heavy duty Grade 1 office/entrance mortise lockset with auxiliary deadlatch for 1-3/4 inch doors, and the Hager 3850E is a Grade 1 office mortise lock with lever and escutcheon, non-keyed, on a 2-3/4 inch backset for doors 1-3/4 inch to 2-1/2 inch. The BEST 45HCAC is a heavy duty public entrance mortise lock body in the 45H series with field reversible operation.

It ships as a complete set, lock body, latch and strike plate included. What you do choose separately is the interior trim style, since the 3507 accepts any Emtek brass knob, crystal or porcelain knob, or lever.

The 3507 is a residential set. It is solid brass with a UL listed mortise body, which makes it a good fit for a house, a condo unit or a boutique multi-family entry where appearance matters. For a commercial opening taking real traffic, a Grade 1 body is the better call, for instance the Cal-Royal NM8050 office/entrance mortise lockset with auxiliary deadlatch, or a Corbin Russwin ML2000 Series body.

Yes. Keyed alike and keyed different are both order options on the 3507, and you can supply a key code so the new sets match an existing Schlage C system already running in the building. For a property manager standardizing a set of unit doors, order them keyed alike in one finish and vary only the interior trim if you want.

Baldwin's 6301 entry/apartment mortise lock body is the closest cross-brand match, offered knob by knob or lever by lever with a 2-1/2 inch backset and rated for doors 1-3/4 inch and over. Baldwin also lists the 6310 entry/storeroom body at the same 2-1/2 inch backset, for 1-3/8 inch doors and over, if you want the outside trim to stay locked at all times.

The Emtek 3507 Regency is an entry set in F20 Entrance or F13 Dormitory function, so it does not cover classroom security. For classroom openings, the Corbin Russwin ML2003 is a Grade 1 mortise classroom lockset in the ML2000 series for 1-3/4 inch doors, the Cal-Royal NM8070 is a Grade 1 classroom mortise lockset with auxiliary deadlatch, and the Marks USA LA318GJ adds a classroom security indicator with an ANSI strike and steel escutcheon measuring 8-1/2 inch H x 2-3/4 inch W x 7/16 inch.

The Emtek 3507 Regency is a keyed single-cylinder entry mortise set, so it is intended for exterior and main entry openings rather than bed and bath privacy. For privacy, the Cal-Royal NM8440 is a Grade 1 privacy mortise lockset with deadbolt for 1-3/4 inch doors, and the Hager 3840S in the 3800 series is a Grade 1 privacy mortise lock with a 2-3/4 inch backset for doors 1-3/4 inch to 2 inch.

The Emtek 3507 Regency is a keyed entry mortise set, so a non-keyed opening needs a different lock. The Hager 3810E is a Grade 1 passage mortise lock with escutcheon on a 2-3/4 inch backset for doors 1-3/4 inch to 2-1/2 inch, with the 3810S being the rose-trim version of the same passage lock. Schlage's PM010 is a Grade 1 non-keyed passage latch mortise lock for 1-3/4 inch doors, and the Falcon MA101 is a Grade 1 heavy-duty mortise passage lock with field reversible operation, which avoids the handing call the 3507 requires.

No - the Emtek 3507 Regency is a mechanical, non-electronic mortise set using a Schlage C keyway. For credential or code access on a mortise prep, the Accentra nexTouch NTM623-NR is a Grade 1 mortise lock with a capacitive touchscreen keypad and cylinder override, the Schlage CO-100 is a standalone electronic mortise lock with keypad reader for 1-3/4 inch doors, and the Dormakaba E-Plex E5086 is a Grade 1 pushbutton and card mortise lock in entry/egress configuration.

No. The Sargent 4874 is a double cylinder mortise deadbolt in the 4870 series with a 2-3/4 inch backset - it is deadbolt only, with no latch or handle trim. The Emtek 3507 Regency is a complete single-cylinder entry set that includes latch and strike plate and takes a knob or lever trim, on a 2-1/2 inch or 2-3/4 inch backset. The Kaba Ilco 185 series is likewise a deadbolt-function mortise lock, listed with no handing, where the 3507 requires left or right handing to be specified.

Yes. The Emtek 3507 Regency requires left or right handing to be specified, and is offered in LH, LHR out-swing, RH, and RHR out-swing. If you would rather not commit to a hand at order, the BEST 45HCAC heavy duty public entrance mortise lock body in the 45H series is field reversible, and the Falcon MA101 Grade 1 heavy duty mortise passage lock is also field reversible - though the Falcon is passage rather than keyed entry.

The Emtek 3507 Regency is a residential decorative brass entry set with knob or lever trim, which is not an anti-ligature design. For those openings the TownSteel MRX-L-01 is a Grade 1 heavy duty stainless steel anti-ligature lever mortise lockset in passage function for 1-3/4 inch doors, the MRX-A-01 is the arch-trim version in satin stainless, and the Marks USA 5PDN is a Grade 1 hospital passage mortise push/pull paddleset that is ligature resistant and ADA compliant in satin stainless steel.

Close to ninety knob and lever styles pair with the 3507, spanning modern bar levers (L-Square, T-Bar, R-Bar in faceted, hammered, knurled, Tribeca, straight knurled and white marble), traditional knobs like Egg, Melon, Providence and Waverly, crystal knobs such as Bristol, Windsor, Georgetown and Old Town, and levers from Cortina and Milano to Rope, Rustic and Santa Fe. That is what lets one entry set match the interior style already on the rest of the doors.

Seven finishes: French Antique (US7), Oil Rubbed Bronze (US10B), Pewter (US15A), Polished Brass Lifetime (US3), Polished Chrome (US26), Satin Nickel (US15) and Unlacquered Brass (US3NL). Unlacquered Brass has no clear coat and will darken and patina with handling, which is what people want on a period entry. Polished Brass Lifetime is the one that stays bright.

No, the 3507 Regency is a mechanical key-operated mortise entrance set with no electronic option. If you need code or credential access in a mortise pocket, look at the Dormakaba E-Plex 2066 pushbutton mortise lock or the Schlage CO-100 standalone electronic mortise lock, both of which are electronic mortise bodies rather than trim swaps.
