Emtek Emtek 4314 Wilmington Single Cylinder Entrance Handleset - Brass Tubular EMTEK-4314

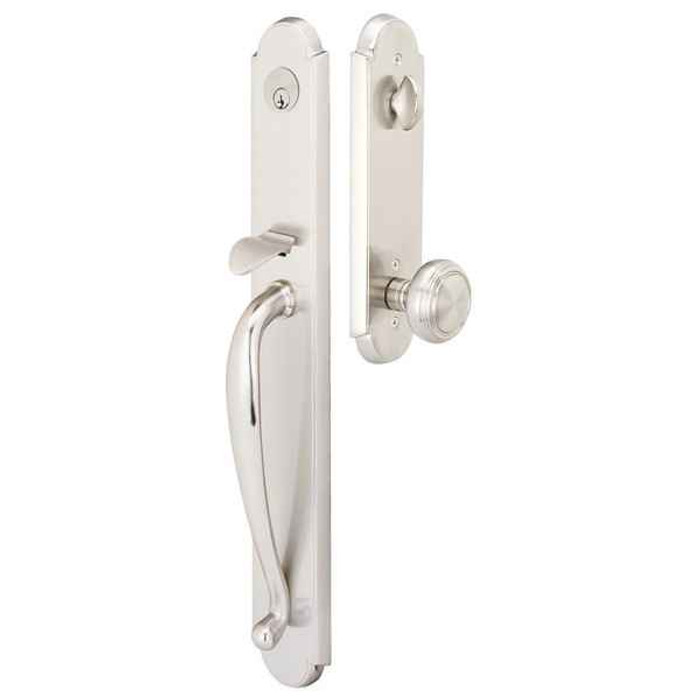

Emtek 4314 Wilmington Single Cylinder Entrance Handleset - Brass Tubular

(No reviews yet) Write a Review

Model: 4314-US15
From the Brass Collection
$684.00
$547.20
Selected Finish is
Selected Knob or Lever Style for Inside Trim is
Selected Handing is
Selected Backset is
Selected FREE KEYING Options is
  • Emtek Emtek 443 Interconnect Device EMTEK-443

In Stock (leaves warehouse same day if ordered before 3pm ET)

$684.00
$547.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek 4314 Wilmington Single Cylinder Entrance Handleset - Brass Tubular

  • Can be ordered with any Brass Knob or Lever for the inside trim
  • Sold as a complete set. Includes Latch and Strike Plate
  • Standard 2-1/8" Door Prep. Door Prep 5-1/2" Center-to-Center
  • Schlage C Keyway
  • Standard latch is for 2-3/8" backset. Specify 2-3/4" backset if required
  • Handing required if Lever used on inside or if Interconnect device is specified

Weiser® (WR5) Keyway

Specify by adding "W" to the beginning of Product Code for Weiser (WR5) Keyway.
No upcharge for cylinder substitution. Can be keyed into existing Weiser system.





Specifications:

  • Backset: 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 2"
  • Keyway: Schlage C
  • Handing: Required – specify left or right

Product Specs

Subcategory:
Handlesets
Collection:
Brass
Product Type:
Handlesets
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Keyed Function:
Single Cylinder
Commercial/Residential:
Residential
Lock Type:
Tubular
Keyed:
Yes
Lock Function:
Entry
Series:
Wilmington
Theme:
American Classic
Electronic:
No
Handle Type:
Handleset
MAP Policy:
Yes
Product Model:
4314
(CTC) Center-to-Center:
5-1/2"
Product Function:
Entry
Product Style:
American Classic
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 4314-US15 – Frequently Asked Questions

1) Will the Emtek 4314 Wilmington handleset fit my door prep, or do I need to redrill?
The Wilmington 4314 uses a standard 2-1/8 inch cross bore with 5-1/2 inch center-to-center spacing between the deadbolt and the knob or lever bore. That is the common residential handleset prep, so on most doors already set up for a two-bore handleset it drops straight in. Backset is your call at order time: 2-3/8 or 2-3/4 inches. Door thickness range is 1-3/8 to 2 inches.
2) Can I key the Emtek Wilmington handleset into my existing Schlage keys?
The 4314 ships standard with a Schlage C keyway, so it keys into an existing Schlage C system. If your building is on Weiser, order the Weiser (WR5) keyway version instead and it keys into that system, with no upcharge for the cylinder substitution. Keyed different and keyed alike are both offered, and you can supply a key code at order time.
3) Do I have to specify handing on the Emtek 4314 Wilmington entrance handleset?
Handing is required on the Wilmington 4314, left or right. It matters whenever a lever is used on the inside trim, or when the 443 interconnect device is specified. Stand outside the door: the side the hinges are on is the hand. Get it wrong with a lever and the lever points the wrong way.
4) What comes in the box with the Emtek Wilmington 4314 handleset, and what else do I need to buy?
Sold as a complete set: exterior handle, latch, and strike plate. What you must choose is the inside trim, since the Wilmington 4314 can be ordered with any Emtek brass knob or lever, from the Ace Knob and Spoke Knob through the Stuttgart, Athena, Luzern and Milano levers, and crystal knobs like Windsor and Bristol. Backset, handing, and keying are the other order-form decisions.
5) Will the Emtek Wilmington handleset work on a 2 inch thick door?
Yes. The Wilmington 4314 covers 1-3/8 through 2 inch doors, which takes in standard 1-3/4 inch exterior doors as well as heavier custom slabs. Enter your actual door thickness on the order. If your door runs thicker than 2 inches, look at a handleset rated past that, such as the Weslock 1411 Traditionale Colonial, listed for 1-3/4 to 2-1/4 inches.
6) Is this Emtek handleset a tubular lock or a mortise lock?
Tubular. The Wilmington 4314 is a bored tubular handleset, so it installs into a standard 2-1/8 inch cross bore rather than a routed mortise pocket. That makes it a far easier retrofit on an existing bored door, and it is why the prep is the same as most residential handlesets. If your door is already mortised, a tubular set will not fill that pocket and you want a mortise entry trim, like the Baldwin Estates 6542 Tremont.
7) Which backset should I order, 2-3/8 or 2-3/4?
Measure from the door edge to the center of the bore. 2-3/8 inches is the more common residential dimension and is what the standard latch on the Wilmington 4314 is set up for; 2-3/4 is the other standard and has to be specified at order time or you will get the 2-3/8 latch. On a retrofit, pull the old latch and measure rather than guessing, since the two are not interchangeable in a fixed bore.
8) What should be used instead of the Emtek 4314 Wilmington when keypad or app entry is needed at the front door?
The Emtek 4314 Wilmington is a mechanical, non-electronic handleset. For an electronic opening, the Kwikset 815SCEHFL-CP913CNT San Clemente handleset pairs a Halifax lever interior with a contemporary SmartCode keypad electronic deadbolt on a 1-3/4 inch door. The Yale Real Living BYRD226CBARX Assure Lock adds Wi-Fi and Bluetooth touchscreen control with the Ridgefield handleset for doors 1-3/4 inch to 2-1/4 inch, and the BYRD256 CBARX is the key-free Wi-Fi version with the Ridgefield passage handleset.
9) What is a comparable single cylinder brass entrance handleset to the Emtek 4314 Wilmington if a different look is wanted?
The Deltana 803871B Hanover handleset is a solid brass entry handleset, and Deltana also builds the 815871 St. Ann and 825871 Kingston as solid brass entry handlesets. All three carry the entry function the Emtek 4314 Wilmington carries, and the 4314 is a brass tubular handleset in the Wilmington series. The choice between them is the exterior plate styling and the inside trim program rather than the function.
10) The door is 2-1/4 inches thick. What handleset works instead of the Emtek 4314 Wilmington?
The Emtek 4314 Wilmington is built for doors 1-3/8 inch to 2 inch. For a 2-1/4 inch door, the Weslock 1411 Traditionale Colonial single cylinder keyed entry handleset with Eleganti knob covers 1-3/4 inch to 2-1/4 inch. If a touchscreen deadbolt is acceptable at that opening, the Yale Real Living BYRD226NRRX Assure Lock standalone touchscreen deadbolt with Ridgefield handleset also covers 1-3/4 inch to 2-1/4 inch.
11) Which entrance handleset carries an ANSI grade rating when the Emtek 4314 Wilmington is specified as residential?
The Emtek 4314 Wilmington is a residential handleset. Where a facility spec calls for a graded product, the Schlage Residential F60 Addison single cylinder keyed entry handleset with Accent lever is Grade 2 and fits doors 1-3/8 inch to 1-3/4 inch, and the Master Lock HDLBA0615/4D single cylinder deadbolt handleset is Grade 2. The Kwikset 687AMD Amador and 687BW Belleview single cylinder handlesets are Grade 3.
12) What is the difference between the Emtek 4314 Wilmington and the Baldwin Estates 6542 Tremont entry trim?
The Emtek 4314 Wilmington is a tubular lock with a 2-1/8 inch cross bore and a 2-3/8 inch or 2-3/4 inch backset, sold complete with latch and strike. The Baldwin Estates 6542 Tremont is mortise entry trim for a 1-3/4 inch door, offered in single cylinder as the 6542ENTR and double cylinder as the 6542DBLC. A tubular prep and a mortise pocket are not interchangeable openings, so the 6542 is not a drop-in for a door bored for the 4314.
13) Which handlesets look like the Emtek 4314 Wilmington but will not lock a door?
The Emtek 4314 Wilmington is a keyed single cylinder entry handleset. The Weslock 6695 Belmont handleset with Impresa knob and the Weslock 2815 Hillcrest handleset with New Heaven lever are both dummy function, meaning surface-mounted trim with no latch or key. The Schlage Residential JE285 Barcelona handleset with Seville lever is a non-keyed entry function. Any of those match the handleset appearance without securing the opening.
14) Is the Emtek 4314 Wilmington a single cylinder or double cylinder handleset, and what does that mean for a glass sidelite?
Single cylinder: key outside, thumbturn inside. That is the usual entry setup and it is what most residential codes want for egress. If there is glass within reach of the interior thumbturn and you want to remove that reach-through risk, a single cylinder is not the answer you are after, look at a double cylinder entry trim such as the Baldwin Estates 6542 Tremont double cylinder mortise trim.
15) What is the difference between a standard entry handleset and one with an interconnect device?
Straight entry, the deadbolt and the knob or lever operate separately, so you turn the thumbturn and the handle. With the Emtek 443 interconnect device added, the inside lever retracts the latch and the deadbolt in one motion, which is what people want on a main entry or where single-motion egress is expected. Adding the interconnect makes handing mandatory, and it is not available with the double cylinder configuration.
16) What is a comparable solid brass entry handleset if the Emtek Wilmington is not the right look?
Deltana's solid brass entry handlesets cover similar ground: the 803871B Hanover, 815871 St. Ann, and 825871 Kingston are all solid brass entry function, and the Deltana 810871 Montego carries the same 1-3/8 to 2 inch door thickness range as the Wilmington 4314. What the Emtek keeps that those do not advertise is the free choice of inside knob or lever across roughly ninety styles, plus Schlage C or Weiser keying without an upcharge.
17) Is there a simpler single cylinder handleset than the Emtek 4314 Wilmington for a rental turn?
The Emtek 4314 Wilmington is ordered with handing, backset, keyway and an inside knob or lever selected separately. For a straightforward swap with fewer build choices, the Weslock 2810 Hillcrest handleset with Hudson knob is a single cylinder unit for doors 1-3/8 inch to 2 inch, the same door thickness range the 4314 covers, and the Pamex FS7P31 Lexington single cylinder handleset in satin nickel is an entry function for doors 1-3/8 inch to 1-3/4 inch.
18) Is the Kwikset 687AMD Amador a full replacement for the Emtek 4314 Wilmington?
Not on its own. The Emtek 4314 Wilmington is sold as a complete set with the latch and strike plate and takes an inside brass knob or lever. The Kwikset 687AMD Amador single cylinder handleset is exterior only, in both the SMT SmartKey build and the SMC build with SC1 keyway SmartKey, and both are Grade 3 for a 1-3/4 inch door. Interior trim has to be sourced separately with the 687AMD.
19) What is an alternative to the Emtek 4314 Wilmington with the interior knob already paired?
The Emtek 4314 Wilmington takes any brass knob or lever for the inside trim, chosen at order. If a preset pairing is preferred, the Baldwin Wesley handleset comes matched with the Alcott knob as the 180WYHXATK or with the Carnaby knob as the 180WYHXCYK, both entrance function. The Weslock 2810 Hillcrest arrives paired with the Hudson knob.
20) What is the difference between adding the Emtek 443 interconnect device to the 4314 Wilmington and buying a factory interconnected lock?
The Emtek 4314 Wilmington accepts the Emtek 443 interconnect device as an option, and handing must be specified when an interconnect device is ordered. A factory-built alternative is the Schlage Residential JI18/19, an interconnected passage lock with keyed deadbolt and Torino lever in satin stainless steel, Grade 2, for doors 1-3/8 inch to 1-3/4 inch. The 4314 route keeps the brass handleset appearance and finish range; the JI18/19 arrives as one assembled interconnected unit.
21) Which handleset matches the Emtek 4314 Wilmington door thickness range most closely?
The Emtek 4314 Wilmington fits doors 1-3/8 inch to 2 inch. The Deltana 810871 Montego handleset covers the identical 1-3/8 inch to 2 inch range, as does the Weslock 2810 Hillcrest single cylinder handleset. That matters on older or non-standard doors where a peer rated only to 1-3/4 inch, such as the Pamex FS7P31 Lexington, runs out of throw.
22) What finishes does the Emtek 4314 Wilmington handleset come in?
Ten, and each is offered in both Schlage and Weiser keyway: Oil Rubbed Bronze (US10B), Polished Nickel Lifetime (US14), Satin Nickel (US15), Pewter (US15A), Flat Black (US19), Polished Chrome (US26), Polished Brass Lifetime (US3), Unlacquered Brass (US3NL), Satin Brass (US4), and French Antique (US7). Unlacquered brass is the one to pick if you want the handle to patina rather than stay bright. A split finish can also be requested if the exterior handle and interior trim need to differ.
