Emtek 4321 Orleans Double Cyli...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$583.00
$466.40
Emtek Emtek 4321 Orleans Double Cylinder Entrance Handleset - Brass Tubular EMTEK-4321

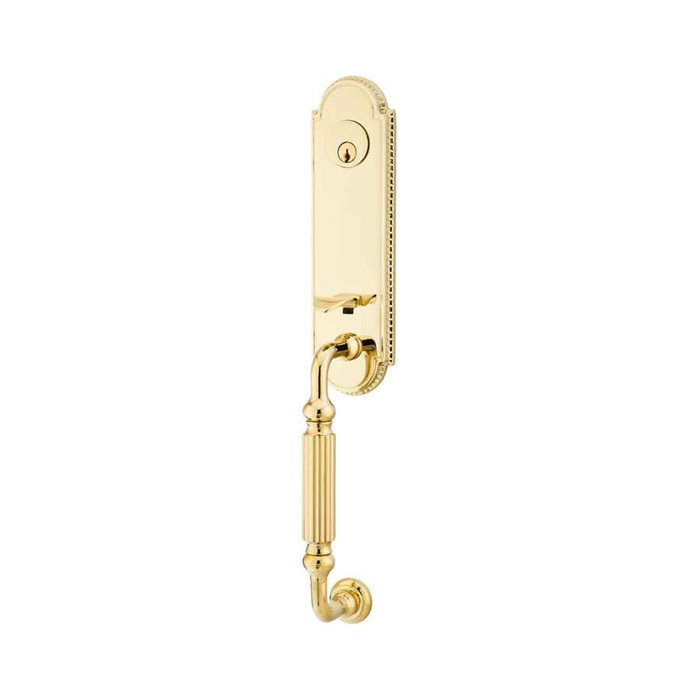

Emtek 4321 Orleans Double Cylinder Entrance Handleset - Brass Tubular

(No reviews yet) Write a Review

Model: 4321-US15
From the Brass Collection
$583.00
$466.40
Selected Finish is
Selected Knob or Lever Style for Inside Trim is
Selected Handing is
Selected Backset is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$583.00
$466.40
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek 4321 Orleans Double Cylinder Entrance Handleset - Brass Tubular

  • Can be ordered with any Brass Knob or Lever for the inside trim
  • Sold as a complete set. Includes Latch and Strike Plate
  • Standard 2-1/8" Door Prep. Door Prep 5-1/2" Center-to-Center
  • Schlage C Keyway
  • Standard latch is for 2-3/8" backset. Specify 2-3/4" backset if required
  • Handing required if Lever used on inside

Weiser® (WR5) Keyway

Specify by adding "W" to the beginning of Product Code for Weiser (WR5) Keyway.
No upcharge for cylinder substitution. Can be keyed into existing Weiser system.





Specifications:

  • Backset: 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 2"
  • Keyway: Schlage C
  • Handing: Required – specify left or right

Product Specs

Subcategory:
Handlesets
Collection:
Brass
Product Type:
Handlesets
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Keyed Function:
Double Cylinder
Commercial/Residential:
Residential
Lock Type:
Tubular
Keyed:
Yes
Lock Function:
Entry
Series:
Orleans
Theme:
American Designer
Electronic:
No
Handle Type:
Handleset
MAP Policy:
Yes
Product Model:
4321
(CTC) Center-to-Center:
5-1/2"
Product Function:
Double Cylinder
Product Style:
American Designer
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 4321-US15 – Frequently Asked Questions

1) What is a double cylinder entrance handleset and should I use one on my front door?
Double cylinder means the deadbolt takes a key on both sides, inside and out, with no thumbturn. Buyers choose it when the door has glass or a sidelite next to the lock, so nobody can break the glass and turn the bolt by hand. The trade-off is that you must have a key in hand to get out, which many local codes restrict on a dwelling exit door. If that is a concern, a single cylinder entry handleset with an inside thumbturn is the version to order instead.
2) Do I have to specify handing when ordering an Emtek Orleans handleset?
Handing is required, right hand or left hand. It matters because the inside trim on the Orleans set can be a lever, and a lever has to point the correct way on the door. Stand outside the door: if the hinges are on your right, it is right hand. If you pick a knob for the inside instead of a lever, the handing is far less critical, but the order still asks for it.
3) Can the Emtek 4321 be keyed alike with the Schlage locks already on my building?
The 4321 Orleans ships standard with a Schlage C keyway, so it keys into an existing Schlage C system. If your property is on Weiser, order the Weiser WR5 keyway version instead, which keys into an existing Weiser system at no upcharge for the cylinder substitution. Both keyways are offered across all seven finishes. Keyed alike and keyed different are both available, and you can supply an existing key code on the order.
4) Does the Emtek Orleans handleset come with a latch and strike, or do I order those separately?
It is sold as a complete set with the latch and strike plate included. The standard latch is 2-3/8 inch backset; if your door is bored at 2-3/4 inches, specify that backset on the order and the correct latch comes with it. What you do choose separately is the inside knob or lever, which is a required selection.
5) How do I know whether to order the 2-3/8 or 2-3/4 inch backset on a handleset?
Measure from the edge of the door to the center of the bore hole. 2-3/8 inches is the common residential backset and it is what the Orleans 4321 ships with by default; 2-3/4 inches is the other standard and has to be called out on the order. Getting this wrong means the latch will not reach the bore, so measure the existing door before ordering rather than assuming.
6) My door is thicker than 2 inches. Will an Emtek Orleans handleset still work?
No. Above 2 inches you are past what the 4321 Orleans covers. For a heavy door in the 1-3/4 to 2-1/4 inch range, the Weslock 1411 Traditionale Colonial handleset is listed to 2-1/4 inches, as is the Yale Real Living Ridgefield handleset if an electronic touchscreen deadbolt suits the opening. Measure the actual slab, not the frame, before you order.
7) Can I replace an existing Schlage or Kwikset handleset with the Emtek Orleans without redrilling the door?
If the existing set uses a standard 2-1/8 inch cross bore with 5-1/2 inch center-to-center spacing between the handle bore and the deadbolt, the Orleans 4321 lands on the same prep. That is the common residential handleset layout, so most swaps go in without new holes. What you do need to confirm is the backset, 2-3/8 or 2-3/4 inches, and the door thickness, since the Orleans covers 1-3/8 to 2 inches. Some handleset designs use a different CTC, so measure hole center to hole center before pulling the old set.
8) What is the closest solid brass handleset to the Emtek 4321 Orleans if I want a different look on the same door?
The Deltana 815871 St. Ann and the Deltana 825871 Kingston are both solid brass entry handlesets, as is the Deltana 803871B Hanover. All three are entry function like the Emtek 4321 Orleans, which is a brass tubular handleset with an entry lock function. The Orleans differs in that its keyed function is double cylinder, meaning it takes a key on both the outside and the inside face rather than a thumbturn indoors.
9) What handleset should I use instead of the Emtek 4321 Orleans if I do not want a key required from the inside?
The Emtek 4321 Orleans is a double cylinder set, keyed from both sides. If the opening needs key-outside only, the Schlage Residential F60 Addison with Accent lever is an entrance-function keyed handleset covering 1-3/8 inch to 1-3/4 inch doors, and the Weslock 2810 Hillcrest with Hudson knob is a single cylinder handleset covering 1-3/8 inch to 2 inch doors. The Baldwin Estates 6542 Tremont is offered in both a double cylinder and a single cylinder entry mortise trim, both for 1-3/4 inch doors.
10) Is the Baldwin Estates 6542 Tremont a drop-in substitute for the Emtek 4321 Orleans?
No. The Emtek 4321 Orleans is a tubular lockset using a 2-1/8 inch cross bore and a 2-3/8 inch or 2-3/4 inch backset. The Baldwin Estates 6542 Tremont Double Cylinder is mortise trim, which mounts to a mortise lock body pocketed into the door edge, and it is specified for a 1-3/4 inch door. Both are double cylinder entry, but the door prep is not the same and one cannot replace the other without reworking the door.
11) Which handleset carries an ANSI grade if my spec calls for one, since the Emtek 4321 Orleans is a residential set?
The Emtek 4321 Orleans is a residential handleset. Where a graded product is required, the Master Lock HDLB Series HDLBA0615/4D single cylinder deadbolt handleset is Grade 2 entrance function, and the Schlage Residential F60 Addison with Accent lever is Grade 2 entrance function for 1-3/8 inch to 1-3/4 inch doors. The Kwikset 687AMD Amador single cylinder handleset is Grade 3 entrance function for 1-3/4 inch doors.
12) Can I pick the inside knob or lever on the Emtek 4321 Orleans, or is it fixed?
The inside trim is your choice and it is a required selection on the order. Any Emtek brass knob or lever pairs with the Orleans exterior plate, which is why the option list runs to roughly ninety styles, from plain Round and Egg knobs to crystal knobs like Windsor and Georgetown, contemporary bar levers such as T-Bar Knurled and L-Square Tribeca, and traditional levers like Rope and Ribbon & Reed. Pick a lever and the handing becomes critical.
13) What finishes does the Emtek Orleans 4321 handleset come in, and can I match it to other hardware in the house?
Seven finishes: Oil Rubbed Bronze (US10B), Satin Nickel (US15), Pewter (US15A), Polished Chrome (US26), Polished Brass Lifetime (US3), Unlacquered Brass (US3NL), and French Antique (US7). The US number is the standard finish code, so matching to hinges or other trim is a matter of matching the code. Unlacquered brass is the one that changes: it has no clear coat and will patina with handling. There is also a split finish option if you want the exterior plate in one finish and the inside trim in another.
14) Is the Emtek 4321 Orleans handleset suitable for a commercial entrance?
It is a residential product. The 4321 Orleans is a tubular bored lockset in solid brass, built for a house or a residential unit door, not for the cycle counts of a commercial storefront or a school entrance. For a commercial opening you want a Grade 1 or Grade 2 device rather than a residential handleset. Among residential handlesets with a stated grade, the Schlage F60 Addison is Grade 2 and the Master Lock HDLB Series single cylinder deadbolt handleset is also Grade 2.
15) What else could I buy instead of the Emtek Orleans if I need a double cylinder entry handleset?
Within double cylinder specifically, the Baldwin Estates 6542 Tremont Double Cylinder Entry Mortise Trim is the closest peer, but note the difference in type: the Baldwin is mortise trim for a mortise lock body and it is listed for 1-3/4 inch doors only, where the Orleans is a tubular set covering 1-3/8 to 2 inches. If your door is prepped for a bore rather than a mortise pocket, the Orleans is the one that drops in. Most of the other handlesets in the same class, like the Deltana Montego 810871 and the Weslock 2810 Hillcrest, are single cylinder or non-keyed and will not give you a key on the inside.
16) I need to key several units alike. Can Emtek handlesets be keyed to an existing code?
Yes. Keyed alike and keyed different are both order options on the 4321 Orleans, and you can enter an existing key code on the order so the new sets work on the keys already in circulation. The cylinder is Schlage C standard, or Weiser WR5 if that is what your buildings run. Order all units in one go under the same keying instruction so they cut to the same bitting.
17) What handleset covers the same 1-3/8 inch to 2 inch door thickness as the Emtek 4321 Orleans?
The Emtek 4321 Orleans covers 1-3/8 inch to 2 inch doors. The Deltana 810871 Montego handleset covers the identical 1-3/8 inch to 2 inch range, as do the Weslock 2810 Hillcrest single cylinder with Hudson knob and the Weslock 2815 Hillcrest dummy, both in the Premiere Essentials line. The Pamex FS7P31 Lexington single cylinder entry handleset covers 1-3/8 inch to 1-3/4 inch, so it stops short of a full 2 inch door.
18) I want a keypad or smart handleset instead of a keyed one like the Emtek 4321 Orleans - what are the options?
The Emtek 4321 Orleans is a keyed, non-electronic handleset. For an electronic opening, the Kwikset 815SCEHFL-CP913CNT San Clemente handleset with Halifax lever pairs with a Contemporary SmartCode keypad electronic deadbolt and ships with an RCAL latch and RCS strike for a 1-3/4 inch door. The Yale Real Living BYRD226CBARX Assure Lock with Ridgefield handleset is a Wi-Fi and Bluetooth touchscreen deadbolt for 1-3/4 inch to 2-1/4 inch doors, and the BYRD256 CBARX pairs a key free touchscreen deadbolt with a Ridgefield passage handleset over the same thickness range.
19) The Emtek 4321 Orleans uses a Schlage C keyway - what else can I key into an existing Schlage system?
The Emtek 4321 Orleans ships standard with a Schlage C keyway, and can be ordered with a Weiser WR5 keyway to key into an existing Weiser system. Among other handlesets, the Kwikset 687AMD SMC Amador single cylinder handleset uses an SC1 keyway with SmartKey, while the Kwikset 687AMD SMT and the Kwikset 687BW SMT Belleview are SmartKey sets; all three are Grade 3 entrance handlesets, exterior only, for 1-3/4 inch doors.
20) I need a matching handleset for a door that does not lock - what pairs with an entry set like the Emtek 4321 Orleans?
The Emtek 4321 Orleans is an entry function keyed handleset, so it is not the part for an inactive or non-latching leaf. For that opening, the Weslock 2815 Hillcrest with New Heaven lever and the Weslock 6695 Belmont with Impresa knob are dummy handlesets, both for 1-3/8 inch to 2 inch doors, the same thickness range the Orleans covers. The Schlage Residential JE285 Barcelona with Seville lever is a non-keyed entry handleset, Grade 2, for 1-3/8 inch to 1-3/4 inch doors.
21) Do the Kwikset Amador and Belleview handlesets include the interior trim the way the Emtek 4321 Orleans does?
No. The Emtek 4321 Orleans is sold as a complete set including the latch and strike plate, with the inside knob or lever chosen as part of the order. The Kwikset 687AMD Amador and the Kwikset 687BW Belleview single cylinder keyed entry handlesets are exterior only, so interior trim is a separate purchase. Both are Grade 3 entrance function for 1-3/4 inch doors.
22) Can I use the Schlage JI18/19 interconnected lock in place of the Emtek 4321 Orleans on an entry door?
They do different jobs. The Emtek 4321 Orleans is a double cylinder entry handleset, keyed on both faces. The Schlage Residential JI18/19 is an interconnected passage lock with a keyed deadbolt and Torino lever, Grade 2, for 1-3/8 inch to 1-3/4 inch doors, so its lever is passage function and the security comes from the deadbolt above it. For a handleset-format entry set with a lever inside, the Schlage Residential F60 Addison with Accent lever is Grade 2 entrance function over the same thickness range.
23) Is the Emtek 4321 Orleans handleset solid brass or plated?
Solid brass, both the material and the substrate. That matters on an exterior door in a coastal or high-humidity setting, where a plated zinc casting fails at the plating long before the brass would. It is also why the unlacquered brass option is offered at all, since a solid brass part can be left to patina rather than being sealed.
24) Which other handlesets let me pick the interior knob the way the Emtek 4321 Orleans does?
The Emtek 4321 Orleans can be ordered with any brass knob or lever for the inside trim, with handing specified when a lever is used inside. Baldwin builds the Wesley handleset in fixed interior pairings instead: the 180WYHXATK comes with the Alcott knob and the 180WYHXCYK with the Carnaby knob, both entrance function. Weslock pairs the 2810 Hillcrest with the Hudson knob and the 1411 Traditionale Colonial with the Eleganti knob, both single cylinder keyed entry.
