Emtek Emtek 454414 Rectangular Sectional Grip by Grip Entrance Handleset - Sandcast Bronze Tubular - Double Cylinder EMTEK-454414

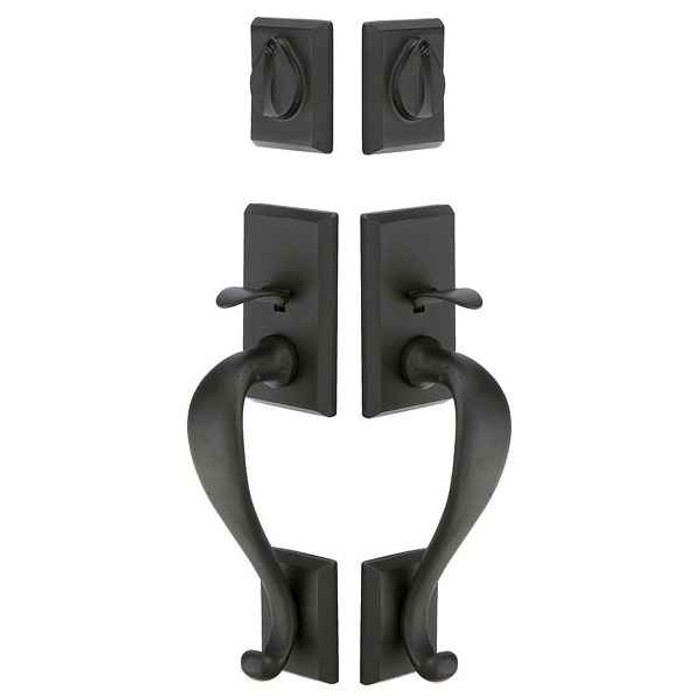

Emtek 454414 Rectangular Sectional Grip by Grip Entrance Handleset - Sandcast Bronze Tubular - Double Cylinder

(No reviews yet) Write a Review

Model: 454414-MB
From the Sandcast Bronze Collection
$1,129.00
$903.20
Selected Finish is
Selected Backset is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,129.00
$903.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek 454414 Rectangular Sectional Grip by Grip Entrance Handleset - Sandcast Bronze Tubular - Double Cylinder

  • Handing Not Required
  • Standard door thickness of 1-3/4”. Specify if thicker.
  • Standard latch is for 2-3/8” backset. Specify 2-3/4”backset if required.
  • Grip by Grip is a custom function made to order and requires an additional 2-3 day lead time.


Weiser® (WR5) Keyway
• Specify by adding “W” to the beginning of product code.
• No upcharge for cylinder substitution. Can be keyed into existing Weiser® system





Specifications:

  • Backset: 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 2"
  • Keyway: Schlage C
  • Handing: Required – specify left or right

Product Specs

Subcategory:
Grip by Grip Entrance Handlesets
Collection:
Sandcast Bronze
Product Type:
Grip by Grip Entrance Handlesets
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Keyed Function:
Double Cylinder
Commercial/Residential:
Residential
Lock Type:
Tubular
Keyed:
Yes
Lock Function:
Entry
Series:
Rectangular
Theme:
Rustic Living
Electronic:
No
Handle Type:
Handleset
MAP Policy:
Yes
Product Model:
454414
(CTC) Center-to-Center:
5-1/2"
Product Function:
Double Cylinder
Product Shape:
Rectangular
Product Style:
Sandcast Bronze
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 454414-MB – Frequently Asked Questions

1) Will the Emtek 454414 grip by grip handleset fit a 1-3/4 inch entry door?
Yes. The 454414 covers doors from 1-3/8 inch up to 2 inch thick, so a standard 1-3/4 inch entry door is right in the middle of the range. The latch ships set up for 1-3/4 inch as standard, so if your door is thicker than that, state the actual thickness on the order.
2) Does this Emtek handleset drop into an existing 2-1/8 inch bore?
It does. The 454414 is a tubular lockset prepped for a 2-1/8 inch cross bore, which is the standard residential door prep, so on most existing entry doors you are only matching the backset and the bolt hole rather than re-boring the door.
3) What does grip by grip double cylinder mean on an Emtek entry handleset?
Grip by grip means you get a full gripped handle on both the outside and the inside of the door instead of a grip outside and a lever or knob inside. Double cylinder means it is keyed on both sides, so there is no thumbturn: you need a key to retract the deadbolt from inside as well as out. That is often chosen for doors with glass next to them, and it is worth thinking through for an occupied bedroom-level exit before you commit.
4) Can I key this Emtek handleset into my existing Schlage or Weiser keys?
Standard cylinders are Schlage C keyway, so it can be keyed to an existing Schlage C system. A Weiser WR5 keyway is available instead at no upcharge, which lets it key into an existing Weiser system. You also choose keyed different or keyed alike, and you can supply a key code to have it cut to match what you already carry.
5) What is the center-to-center measurement on the Emtek 454414 handleset?
Center to center is 5-1/2 inches between the deadbolt bore and the latch bore. That is the number to check against an existing handleset footprint, because if your door is bored at a different spacing the plate will not line up over both holes.
6) What finishes does the Emtek 454414 sandcast bronze handleset come in?
Three finishes: Flat Black Bronze (FB), Medium Bronze (MB), and Tumbled White Bronze (TWB). All are sandcast solid bronze, so the finish develops over time with handling rather than staying uniform like a plated brass part. A split finish (different finish inside versus outside) can also be specified.
7) Is the Emtek 454414 handleset suitable for a commercial building entrance?
It is a residential-grade product. The 454414 is a bored tubular entry handleset in sandcast bronze aimed at houses and custom residential work, not at high-traffic commercial openings or fire-rated doors. For an apartment community's leasing office or a storefront, look at a Grade 1 or Grade 2 commercial mortise or cylindrical lock instead.
8) Is this Emtek handleset a sectional or a single-piece plate design?
It is a sectional design. The grip and the deadbolt escutcheon mount as separate pieces rather than on one continuous backplate, which gives a shorter visual footprint on the stile and is the usual choice on doors where a full-length plate would crowd glass or a narrow rail. The style is Emtek's Rectangular series in the Sandcast Bronze collection.
9) Is the Emtek 454414 an electronic or smart lock?
No, it is purely mechanical. The 454414 is key operated on both sides with no keypad, motor, or wiring, so there is nothing to power and no app to configure. If a client wants code or phone access on that opening, this is the wrong family to start from.
