Emtek 5312 Modern Rectangular ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$476.00
$380.80
Emtek Emtek 5312 Modern Rectangular Two-Point Lockset - Brass Tubular - Single Cylinder EMTEK-5312

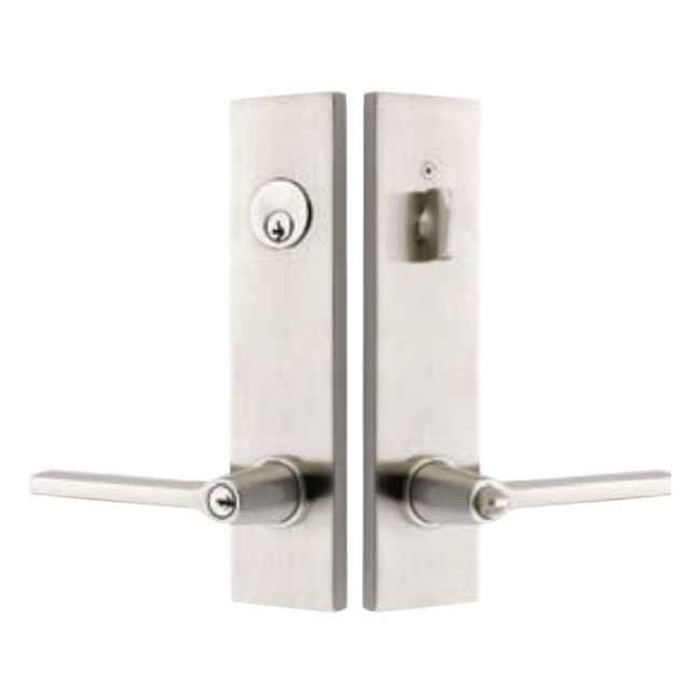

Emtek 5312 Modern Rectangular Two-Point Lockset - Brass Tubular - Single Cylinder

(No reviews yet) Write a Review

Model: EMTEK 5312-ROU-US26
From the Brass Collection
$476.00
$380.80
Selected Key In Knob/Lever Style is
Selected Finish is
Selected Backset is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$476.00
$380.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek 5312 Modern Rectangular Two-Point Lockset - Brass Tubular - Single Cylinder

  • Can be ordered with any Key in Knob or Lever Style
  • Sold as complete set. Includes Latch and Strike Plates
  • Standard Door Thickness: 1-1/4" to 1-3/4"
  • Inside Passage Half Spindle
  • 1" Wood Screws
  • Threaded Tubes and Machine Screws
  • Supplied upon request for Hollow-Core Doors
  • Full-Lip Strike Plate
  • Handing Required for Leversets
  • Standard latch is for 2-3/8” backset. Specify 2-3/4”backset if required
  • Any Key In Knob/Lever style options listed on this page can be used with Annapolis trim style

Weiser® (WR5) Keyway

  • Specify by adding “W” to the beginning of product code.
  • No upcharge for cylinder substitution (Standard is Schlage C Keyway)
  • Can be keyed into existing Weiser® system





Specifications:

  • Keyway: Schlage C (standard)
  • Material: Brass
  • Keys Included: 2

Product Specs

Subcategory:
Two-Point Locksets
Collection:
Brass
Product Type:
Sideplate Locksets
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Keyed Function:
Single Cylinder
Commercial/Residential:
Residential
Lock Type:
Tubular
Keyed:
Yes
Lock Function:
Entry
Series:
Modern Rectangular
Theme:
Contemporary
Electronic:
No
Handle Type:
Knob or Lever
MAP Policy:
Yes
Product Model:
5312
Product Function:
Entry
Product Shape:
Rectangular
Product Style:
Contemporary
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek EMTEK 5312-ROU-US26 – Frequently Asked Questions

1) Will the Emtek 5312 Modern Rectangular lockset fit my door thickness?
The 5312 handles doors from 1-1/4 to 1-3/4 inches as standard, which covers a normal 1-3/4 inch exterior door and most older 1-3/8 inch interior slabs. It ships with threaded tubes and machine screws plus 1 inch wood screws, and hollow-core door hardware is supplied on request rather than in the standard box, so say so at time of order if the door is hollow-core.
2) What backset do I need to order for an Emtek 5312 two-point lockset?
Backset is a required choice on the 5312, either 2-3/8 or 2-3/4 inches, and 2-3/8 is what ships if you say nothing. Measure from the door edge to the center of the existing bore: those are the two standard residential backsets, and picking the wrong one means the latch will not line up with your prep.
3) Can the Emtek 5312 be keyed to match my existing Weiser or Schlage keys?
Both keyways are available. Standard is Schlage C, and a Weiser WR5 cylinder can be substituted at no upcharge so the lock keys into an existing Weiser system. Two keys come with the set. If you are doing several openings, keyed alike is an option alongside keyed different, and there is a keying-to-code field on the order for matching an existing key code.
4) Do I have to specify handing on an Emtek 5312 lockset?
Handing matters if you choose a lever. Any of the lever trims (Cortina, Hanover, Helios, Luzern, Rope Lever) requires handing at time of order. Pick one of the knob trims (Egg, Providence, Rope Knob, Round, Waverly) and handing is not required. Stand outside the door: if the hinges are on your right, it is a right-hand door.
5) What is a two-point lockset and do I still need a separate deadbolt?
A two-point set puts the keyed cylinder and the knob or lever on one continuous sideplate, so the deadbolt and the latch mount together as a single unit on the door rather than as two separate bores with two separate rosettes. You do not add a stand-alone deadbolt on top of it. The 5312 is the single cylinder version: key outside, thumbturn inside. It is a residential entry lock, not a commercial-grade one.
6) I need a two-point lockset that keys from both sides for a glass-panel door. What should I use instead of the Emtek 5312?
The 5312 is a single cylinder set, so the inside is a thumbturn and cannot be keyed. For an opening where the inside has to be keyed as well, the Omnia D12036AC is a double cylinder deadbolt lever lockset in solid brass with a sideplate design. That is the configuration used where breakable glass sits next to the lock and a turn on the inside would be reachable. Check your local code first, since double cylinder deadbolts are restricted on some egress doors.
7) What is the difference between the Emtek 5312 two-point lockset and the Omnia D12036A?
Both are two-point sideplate sets that combine a keyed deadbolt with a lever on one plate, and both are solid brass. The Emtek 5312 is a single cylinder entry set in tubular brass, keyed on the outside with a thumbturn inside, and it can be ordered with a knob or a lever on the trim. The Omnia D12036A is described as a single cylinder deadbolt lever lockset in solid brass, so it is lever trim. Choose on trim style and finish range rather than on function, since both give you key outside and turn inside.
8) What comes in the box with the Emtek 5312, and do I need to buy anything else?
It ships as a complete set: exterior and interior trim, latch, and strike plates, including a full-lip strike, plus an inside passage half spindle, 1 inch wood screws, and threaded tubes with machine screws. Two keys are included. Nothing further is needed for a standard wood door with an existing bore. The full-lip strike wraps the jamb edge, so it needs a flat jamb face to sit against.
9) Can I get a different finish on the inside than the outside of an Emtek 5312?
Yes, split finish is an order option on the 5312, so the exterior can be one finish and the interior another. The seven finishes are Flat Black (US19), Oil Rubbed Bronze (US10B), Polished Chrome (US26), Polished Nickel (US14), Satin Brass (US4), Satin Nickel (US15), and Unlacquered Brass (US3NL). Worth knowing that unlacquered brass is a living finish and will darken with handling, so it will not stay matched to a lacquered piece over time.
10) Which Emtek 5312 knob and lever styles are not available in every finish?
One restriction to watch: the Rope Lever (RL) is not offered in Satin Brass (US4), Polished Nickel (US14), or Flat Black (US19). Every other trim option (Cortina, Egg, Hanover, Helios, Luzern, Providence, Rope Knob, Round, Waverly) is open across the finish range. If your job is spec'd in flat black and you wanted the rope detail, the Rope Knob is the way to get it.
11) Is the Emtek 5312 suitable for a commercial building entrance?
It is a residential entry lockset. For an apartment unit door, a single-family home, or a private office in a light-use setting it is the right class of product. For a high-traffic building entrance, a stairwell, or anything on a life-safety path, spec a commercial mortise or cylindrical lock instead, since those are the products carrying the cycle and grade testing that facility work calls for.
12) What matches the look of a keyed two-point lockset on an inactive door that does not need to lock?
Use a dummy set rather than the Emtek 5312, which is a keyed entry lock. The Omnia D12036PD is a solid brass dummy deadbolt lever lockset with plates on 5-1/2 inch center to center spacing, so it presents the same deadbolt-over-lever sideplate appearance with no working latch or cylinder. That is the usual pairing for the inactive leaf of a pair of doors or a closet door where the hardware only needs to match.
13) Can the Omnia D12036PD be used as a substitute for an Emtek 5312 entry lockset?
No. The D12036PD is a double dummy set, meaning it is trim only with no cylinder and no latch, so it will not secure a door. The Emtek 5312 is a keyed entry two-point lockset with a single cylinder. If you want the D12036PD appearance on a door that locks, order the keyed version of that family instead, or the 5312. Dummy sets are ordered alongside working locks to match a pair of doors, not in place of them.
14) Which two-point sideplate lockset gives me a choice of knob instead of lever trim?
The Emtek 5312 takes either a knob or a lever, with knob options including the Providence, Round, Egg, Rope and Waverly knobs and lever options including Cortina, Hanover, Helios, Luzern and Rope. The Omnia D12036A and D12036AC are both described as lever locksets. If the specification calls for a knob on a two-point sideplate set, or if you are mixing knob and lever trim across a house, the 5312 is the one that covers both.
15) Is a standard entry knobset a substitute for the Emtek 5312?
Not directly. The 5312 is a two-point lockset, so the deadbolt and the latching trim share one continuous sideplate and one set of prep. A plain bored entry knobset covers only the latch bore, which leaves the deadbolt bore exposed if the door was prepped for a two-point set. Comparable two-point substitutes are the Omnia D12036A for single cylinder and the D12036AC for double cylinder. Confirm the bore spacing on the door before switching families.
16) I am standardizing an apartment building on one two-point lockset. Which family lets me key the whole run together?
The Emtek 5312 is the one to build the standard on for keying. It ships with a Schlage C keyway as standard and can be ordered with a Weiser WR5 keyway, and it can be ordered keyed alike across the run or keyed to an existing code. That means new doors drop into a system you already have. The Omnia D12036A is the single cylinder peer and the D12036AC the double cylinder peer if a particular opening needs a different function while keeping the same sideplate look.
17) Is the Emtek 5312 lockset solid brass?
Brass, both material and substrate, and it belongs to Emtek's Brass collection. The lock body is tubular rather than mortise, so it drops into a standard bored prep instead of requiring a pocket cut into the door edge. The look is contemporary, with a rectangular sideplate.
18) Can I use Annapolis trim with the Emtek 5312?
Yes. Every key-in-knob and key-in-lever style offered on the 5312 works with the Annapolis trim style, so you are not locked out of a trim pairing by the knob or lever you pick.
19) Is the Emtek 5312 an electronic or smart lock?
No, the 5312 is fully mechanical. Key on the outside, thumbturn inside, no batteries, no wiring, no keypad. If a project needs remote access or codes, this is not the product line to look at.
20) The Emtek 5312 is residential rated. What if I need a two-point lockset for a commercial opening?
The 5312 is a residential brass tubular set, well suited to apartments, condos and single-family front doors. For a commercial opening carrying heavy daily traffic, a fire rating, or an ANSI grade requirement on the drawing, specify a commercial-grade lockset rather than a decorative two-point set. The Omnia D12036A and D12036AC are also solid brass decorative sideplate sets, so they sit in the same residential-decorative space as the 5312 rather than solving a commercial spec.
