Emtek Emtek 5322 Modern Rectangular Two-Point Lockset - Brass Tubular - Double Cylinder EMTEK-5322

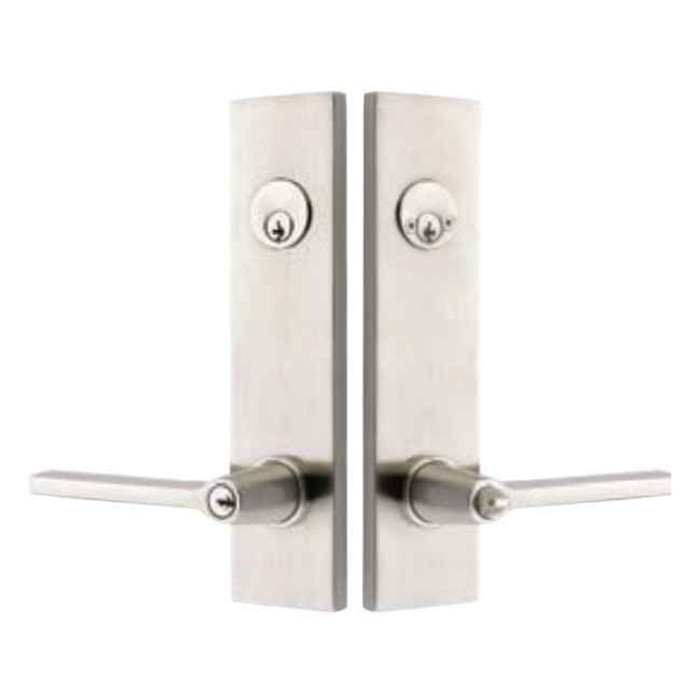

Emtek 5322 Modern Rectangular Two-Point Lockset - Brass Tubular - Double Cylinder

(No reviews yet) Write a Review

Model: EMTEK 5322-ROU-US26
From the Brass Collection
$476.00
$380.80
Selected Key In Knob/Lever Style is
Selected Finish is
Selected Backset is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$476.00
$380.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek 5322 Modern Rectangular Two-Point Lockset - Brass Tubular - Double Cylinder

  • Can be ordered with any Key in Knob or Lever Style
  • Sold as complete set. Includes Latch and Strike Plates
  • Standard Door Thickness: 1-1/4" to 1-3/4"
  • Inside Passage Half Spindle
  • 1" Wood Screws
  • Threaded Tubes and Machine Screws
  • Supplied upon request for Hollow-Core Doors
  • Full-Lip Strike Plate
  • Handing Required for Leversets
  • Standard latch is for 2-3/8” backset. Specify 2-3/4”backset if required
  • Any Key In Knob/Lever style options listed on this page can be used with Annapolis trim style

Weiser® (WR5) Keyway

  • Specify by adding “W” to the beginning of product code.
  • No upcharge for cylinder substitution (Standard is Schlage C Keyway)
  • Can be keyed into existing Weiser® system





Specifications:

  • Keyway: Schlage C (standard)
  • Material: Brass
  • Keys Included: 2

Product Specs

Subcategory:
Two-Point Locksets
Collection:
Brass
Product Type:
Sideplate Locksets
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Keyed Function:
Double Cylinder
Commercial/Residential:
Residential
Lock Type:
Tubular
Keyed:
Yes
Lock Function:
Entry
Series:
Modern Rectangular
Theme:
Contemporary
Electronic:
No
MAP Policy:
Yes
Product Model:
5322
Product Function:
Double Cylinder
Product Shape:
Rectangular
Product Style:
Contemporary
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek EMTEK 5322-ROU-US26 – Frequently Asked Questions

1) Double cylinder means key on both sides, right? Can I use this on a rental unit?
Correct, the 5322 is a double cylinder entry set, keyed from the outside and from the inside as well, with no interior thumbturn. That is what people put on a door with glass beside it or a glazed panel, so someone cannot break the glass and turn the deadbolt. Many jurisdictions restrict double cylinder deadbolts on required egress doors in rental or occupied dwellings, so check your local code for that opening before you standardize on it. If you need a thumbturn inside, order the single cylinder version instead.
2) Can the Emtek 5322 be keyed into my existing Weiser system?
Yes. The 5322 ships with a Schlage C keyway as standard, and a Weiser WR5 keyway is available as a no-upcharge cylinder substitution, specified by adding a W to the front of the product code. Keyed into an existing Weiser system, one key runs the new lock and the doors you already have. Two keys come with the set.
3) I am doing several doors in one house. Can I get these keyed alike?
Keyed alike is a free option on the 5322, as is keyed different if each door needs its own key. There is also a keying-to-code field, so if your building already runs a key code you can supply it and have the cylinders cut to that code rather than rekeying on site. For a property manager doing a run of units, that is the difference between one key per building and a ring of thirty.
4) Do I have to specify handing when I order the Emtek 5322?
Handing is required if you pick a lever. Levers have to point toward the hinge side, so the 5322 needs the hand specified for any of the lever styles: Cortina, Hanover, Helios, Luzern, or Rope. The knob options (Egg, Providence, Rope Knob, Round, Waverly) are symmetrical and take no handing. Stand outside the door: hinges on your right is right hand.
5) What is the difference between the Emtek 5322 double cylinder two-point lockset and the Omnia D12036AC?
Both are double cylinder sideplate locksets keyed on the inside as well as the outside, so both require a key to retract the deadbolt from either face. The Emtek 5322 is a brass tubular set in the Modern Rectangular series, ordered with a Key In Knob or Lever style such as the Cortina Lever, Hanover Lever or Providence Knob, and in finishes from Flat Black (US19) through Unlacquered Brass (US3NL). The Omnia D12036AC is a solid brass double cylinder deadbolt lever lockset with a sideplate design. If the trim style on the door is what drives the selection, the Emtek carries the rectangular sideplate with interchangeable knob and lever designs; if a lever is fixed and a solid brass Omnia plate is what matches the rest of the openings, the D12036AC is the peer.
6) A double cylinder lock is not allowed on this egress door - what sideplate lockset can I use instead?
Where the fire marshal or the building code will not accept a key-both-sides deadbolt on an egress opening, move to a single cylinder function. The Omnia D12036A is a single cylinder deadbolt lever lockset in solid brass, keyed outside with a thumbturn side inside, so the occupant can leave without a key. The Emtek 5322 is a double cylinder entry function and is keyed from both faces, which is why it belongs on doors with adjacent glass rather than on a required exit.
7) What is a two-point lockset and how is it different from putting on a separate knob and deadbolt?
A two-point lockset like the Emtek 5322 puts the knob or lever and the deadbolt on one continuous rectangular sideplate, so you get two points of latching behind a single piece of trim instead of two separate roses. Functionally it locks like a knob plus deadbolt, but it reads as one unit on the door and installs as a matched set. If you would rather keep the two functions on separate escutcheons, that is a different product line entirely.
8) What comes in the box with the Emtek 5322, or do I need to buy the latch and strike separately?
It is a complete set. The 5322 includes the latch and the strike plates, a full-lip strike, an inside passage half spindle, 1 inch wood screws, and threaded tubes with machine screws. Nothing else has to be ordered to hang it on a prepped door.
9) Can I put this Emtek lockset on a hollow-core door?
Yes, hollow-core hardware is supplied on request for the 5322. Say so when you order, because the standard threaded tubes and machine screws are sized for a solid door and the hollow-core parts are what hold the sideplates tight on a thin-skinned door.
10) Can I have a different finish inside than outside on the Emtek 5322?
Split finish is an option you can request on the 5322. That is how you match a dark exterior, say Flat Black or Oil Rubbed Bronze, to a lighter interior scheme in Polished Nickel or Satin Brass on the same opening. The full finish range is Flat Black (US19), Oil Rubbed Bronze (US10B), Polished Chrome (US26), Polished Nickel (US14), Satin Brass (US4), Satin Nickel (US15), and Unlacquered Brass (US3NL).
11) Is the Rope Lever available in every finish on the Emtek 5322?
No. The Rope Lever (RL) is not offered in Satin Brass (US4), Polished Nickel (US14), or Flat Black (US19). Every other knob and lever style on the 5322, including the Rope Knob, runs the full finish range. If you want rope detailing in one of those three finishes, specify the Rope Knob rather than the lever.
12) Is the Emtek 5322 solid brass, and is it rated for a commercial building?
Brass through the body and the substrate, which is why it takes the unlacquered brass finish that patinas over time. It is built and catalogued as residential hardware, so for an apartment door, a house, or a light-traffic office it is the right level. For a high-cycle commercial opening, a school corridor, or anywhere the spec calls for a graded commercial lock, this is not the part to standardize on.
13) What else can I look at instead of the Emtek 5322 if I want a double cylinder sideplate lever set?
The Omnia D12036AC is the closest cross-brand equivalent, a double cylinder deadbolt lever lockset in solid brass with a sideplate design. If you want a thumbturn inside rather than a key on both sides, the Omnia D12036A is the single cylinder version of the same set. Both are lever-only, so if your job needs a knob the 5322 is the one that offers knob styles.
14) I need a matching non-locking set for an inactive door leaf - is there a dummy version of a deadbolt lever lockset?
For the inactive leaf of a pair, or a closet door that only needs the trim to match, the Omnia D12036PD is a solid brass dummy deadbolt lever lockset with plates on 5-1/2 inch centers. It carries the same plate appearance as the working D12036A and D12036AC sets but has no cylinder and no operating latch. The Emtek 5322 is a keyed entry set with a cylinder on both faces, so it is the wrong choice for a leaf that never latches.
15) Can I key an Omnia D12036AC into the same system as an Emtek 5322?
Treat them as separate keying decisions rather than assuming one key covers both. The Emtek 5322 ships on the Schlage C keyway as standard, with a Weiser WR5 cylinder available by adding a W to the front of the product code so it can be keyed into an existing Weiser system, and it can be ordered keyed alike or keyed to an existing code. The Omnia D12036AC is listed by its double cylinder function, so confirm its cylinder before combining the two on one key. Where a single key across the building is the requirement, standardizing the openings on the 5322 with keyed alike keeps the cylinders on one keyway.
16) Can I mix the Emtek 5322 with Annapolis trim on other doors in the same house?
Yes. Any of the key in knob or lever styles offered on the 5322 can be used with the Annapolis trim style, so you can run the same knob or lever design across openings that use different trim without breaking the visual match.
17) Does the Emtek 5322 need wiring or a power supply?
No power, no wiring. The 5322 is a mechanical tubular lockset, key operated on both sides. Nothing to connect, no batteries, no access control tie-in.
18) We are standardizing residential entry openings across a portfolio - Emtek 5322 or the Omnia D12036 sets?
Both families let you run one plate design across every door and vary only the function. With the Emtek 5322, the standardization happens within the one Modern Rectangular series: seven finishes from Satin Nickel (US15) to Oil Rubbed Bronze (US10B) and ten knob and lever designs, all on a brass tubular chassis intended for residential openings, with keyed alike ordering across the set. With Omnia, the same plate runs across three functions - D12036A single cylinder, D12036AC double cylinder and D12036PD double dummy - so mixed-function openings on one leaf pair stay visually identical. Pick the Emtek where finish and handle design drive the standard, the Omnia where a single plate must span keyed and dummy leaves.
