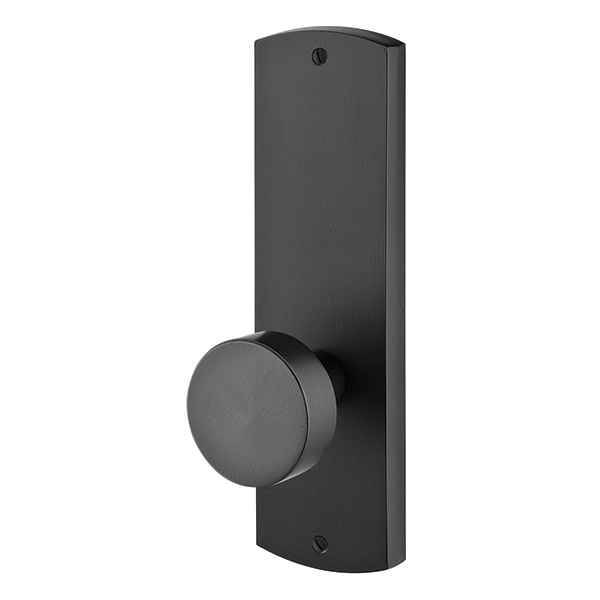

Emtek 7522 Missoula 9" Non-Keyed Sideplate Lockset, Passage - Sandcast Bronze Tubular

It drops into a standard 2-1/8 inch cross bore, so a door already bored for a tubular lockset takes it without new boring. Door thickness range is 1-3/8 to 1-3/4 inches, and the latch is adjustable for either a 2-3/8 or 2-3/4 inch backset. The only extra prep to check is the 9 inch sideplate itself, which mortises into the door edge above and below the bore.

No. It is a passage function, non-keyed, with no cylinder and no privacy turn. The knob or lever always retracts the latch from both sides, which is what you want on a hall, closet, or pantry door. For a bedroom or bath you need a privacy version, and for an exterior door you need a keyed set.

Yes, the latch is adjustable between 2-3/8 and 2-3/4 inches, so it will line up with either bore centerline. The set ships with the 2-3/8 inch backset as standard, so call out 2-3/4 inch on the order if that is what the door is drilled for. A strike plate is included if you are replacing the frame hardware too.

The Missoula 7522 is a non-keyed passage function, so it latches but never locks. For a keyed opening on a sideplate-style lever set, the Omnia D12036A is a single cylinder deadbolt lever lockset in solid brass, keyed from the outside. If you need key operation from both sides - common on doors with glass nearby - the Omnia D12036AC is the double cylinder version of the same sideplate design.

The 7522 Missoula is a working passage set: it includes a latch and strike and the lever or knob retracts the bolt. On a door that only needs a pull with no latch mechanism - a false door leaf, a cased opening, or an inactive pair - a dummy set is the correct part. The Omnia D12036PD is a solid brass dummy deadbolt lever lockset with plates on 5-1/2 inch center to center spacing, mounted with no bore for a latch.

Any Emtek Sandcast Bronze knob or lever pairs with it. Levers include Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma. Knobs include Butte, Egg, Round, Winchester, Bristol, Hampton, Lowell, Windsor, Astoria, Diamond, Georgetown, Modern Disc, Modern Square, Old Town and Providence. Pick a knob if you would rather skip the handing call, since only leversets require handing.

It is catalogued for residential use. For an apartment corridor, office, or any opening on a commercial spec, choose a Grade 1 or Grade 2 cylindrical lockset rated for that traffic rather than a sandcast bronze residential set.

A sideplate set uses a long backplate, 9 inches on the Missoula, running vertically along the stile instead of a small round rosette. Mechanically it is still a tubular lockset in a 2-1/8 inch bore, so the door prep is the same. The reason to choose it is visual weight on wide-stile or rustic doors, and it covers old rosette marks a small trim ring would leave exposed.

The Emtek 7522 Missoula is a bronze sandcast sideplate set with a 9 inch plate, built as a tubular passage lockset for a standard 2-1/8 inch cross bore and 2-3/8 or 2-3/4 inch backset, and it takes any Emtek sandcast bronze knob or lever style on the inside trim. The Omnia D12036 family is solid brass construction and is built around deadbolt lever functions - single cylinder on the D12036A, double cylinder on the D12036AC, dummy on the D12036PD - so the choice comes down to whether the opening needs a locking function or a passage latch, and whether you want sandcast bronze or brass.

Treat them as different preps rather than drop-in equivalents. The Emtek 7522 Missoula is a tubular passage lockset designed for one standard 2-1/8 inch cross bore with an adjustable 2-3/8 or 2-3/4 inch backset and 1-3/8 to 1-3/4 inch door thickness. The Omnia D12036A is a single cylinder deadbolt lever lockset, which combines a lever and a deadbolt and therefore works from a different bore layout. Verify the door prep against the Omnia before ordering it as a replacement for a passage bore.

Use the Emtek 7522 Missoula passage set on interior doors that need to latch but not lock, such as hallways, dens, and bedrooms without privacy requirements; it comes in Flat Black Bronze, Medium Bronze, and Tumbled White Bronze and accepts any sandcast bronze knob or lever on the inside trim. For entry doors, the Omnia D12036A gives you a keyed single cylinder deadbolt lever lockset and the D12036AC a double cylinder version. For non-operating leaves and closet fronts, the Omnia D12036PD is the double dummy.
