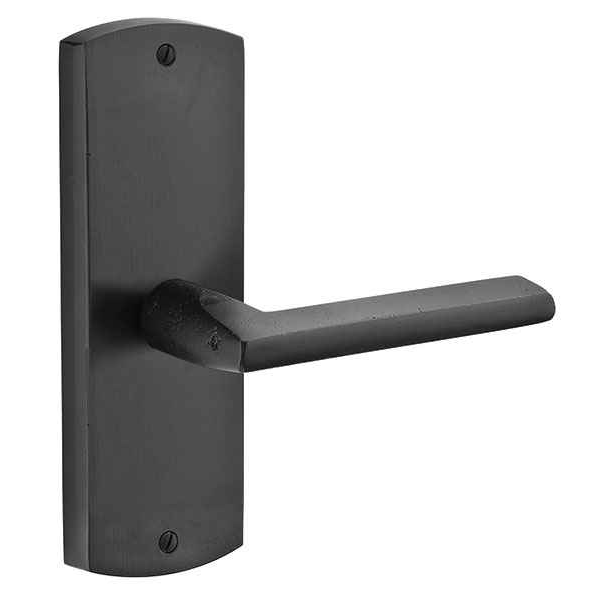

Emtek 71023 Missoula 7-1/4" Non-Keyed Sideplate Lockset, Passage - Sandcast Bronze Tubular

Emtek 71023 Missoula 7-1/4" Non-Keyed Sideplate Lockset, Passage - Sandcast Bronze Tubular

(No reviews yet) Write a Review

Model: 71023-FB
From the Sandcast Bronze Collection
$337.00
$269.60
Selected Finish is
Selected Knob or Lever Style for Inside Trim is
Selected Handing is
Selected Backset is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$337.00
$269.60
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek 71023 Missoula 7-1/4" Non-Keyed Sideplate Lockset, Passage - Sandcast Bronze Tubular

  • Can be ordered with any Sandcast Bronze Knob or Lever Style
  • Sold as complete set. Includes Knob or Lever, Latch and Strike Plate
  • One Standard 2-1/8" Door Prep
  • Standard latch is for 2-3/8" backset. Specify 2-3/4" backset if required
  • Handing required for Leverset



Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass

Product Specs

Subcategory:
Non-Keyed Sideplate Locksets
Collection:
Sandcast Bronze
Product Type:
Sideplate Locksets
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Commercial/Residential:
Residential
Lock Type:
Tubular
Keyed:
No
Keyed Function:
Non-Keyed
Series:
Missoula
Theme:
Rustic Living
Electronic:
No
Lock Function:
Passage
MAP Policy:
Yes
Product Model:
71023
Product Function:
Passage
Product Size:
7-1/4"
Product Style:
Sandcast Bronze
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 71023-FB – Frequently Asked Questions

1) Will the Emtek Missoula passage sideplate lockset fit a 1-3/8 inch interior door?
Yes. The Missoula sideplate set covers door thicknesses from 1-3/8 to 1-3/4 inches, so it works on both older 1-3/8 inch interior doors and standard 1-3/4 inch doors. There's a door thickness field on the order so you can state what you have.
2) Which backset should I order for the Emtek 71023 Missoula set?
Backset is a required selection, 2-3/8 or 2-3/4 inches. Measure from the door edge to the center of the existing bore: 2-3/8 is the common residential interior figure and 2-3/4 shows up on thicker or exterior-style doors. Standard shipment is the 2-3/8 latch unless you specify 2-3/4.
3) Do I have to specify handing on this Emtek passage lockset?
Handing is a required selection, right hand or left hand. It matters for the lever styles because the lever has to point down toward the latch side; for the knob options the handing choice still gets recorded on the order. Stand outside the door: if the hinges are on your right, it's right hand.
4) Is a passage lockset the right choice, or do I need privacy or keyed?
Passage means latch only, no lock at all, which is what you want on hallways, closets, pantries, and between rooms. For a bathroom or bedroom you need a privacy set with a thumbturn, and for an entry you need a keyed function. The Missoula 71023 is non-keyed passage only.
5) What knob and lever styles can I put on the Missoula sideplate?
Any Emtek Sandcast Bronze knob or lever works with it. Levers include Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma; knobs include Butte, Egg, Round, Winchester, Bristol, Hampton, Lowell, Windsor, Astoria, Diamond, Georgetown, Modern Disc, Modern Square, Old Town and Providence. Trim style is a required selection at order.
6) What finishes does the Emtek Missoula sandcast bronze sideplate come in?
Three sandcast bronze finishes: Flat Black Bronze (FB), Medium Bronze (MB), and Tumbled White Bronze (TWB). These are cast bronze, so tone varies slightly piece to piece, which is why it's worth ordering all the doors on a job at once if you want them to read the same.
7) Is this Emtek sideplate lockset approved for commercial openings?
It's a residential-duty product. The Missoula sandcast bronze sideplate set is a tubular residential lockset, so for a school, hospital, or office corridor you should be specifying a commercial bored or mortise lock instead. It suits houses, cabins, and rustic-theme interiors.
8) I need a sideplate lock that actually locks, not passage. What else is there?
For a locking sideplate set, look at the Omnia D12036A single cylinder deadbolt lever lockset or the D12036AC double cylinder version with sideplate design, both solid brass. If you want matching non-functional trim on a closet or inactive leaf of a pair, the Omnia D12036PD is a double dummy sideplate set with 5-1/2 inch center to center. The Emtek 71023 is passage only.
9) What is the closest sideplate lever lockset to the Emtek Missoula 71023 if I need one for a closet or pantry door that only needs to pull shut?
The Emtek 71023 Missoula is itself a passage set - it includes the knob or lever, latch and strike plate and operates a working latch with no lock. If the door does not need to latch at all, such as a fixed panel or an inactive leaf of a pair, the Omnia D12036PD is a solid brass dummy deadbolt lever lockset with plates on 5-1/2 inch centers, which mounts as surface trim with no latch action. The Missoula is the choice where the door still needs to stay closed; the dummy is the choice where it does not.
10) Can I pair the Emtek 71023 Missoula passage set with a deadbolt on the same door instead of buying a keyed sideplate set?
Yes - the Emtek 71023 Missoula is a tubular passage lockset for a standard 2-1/8 inch cross bore with an adjustable 2-3/8 inch or 2-3/4 inch backset, so it handles the latching while a separate deadbolt above it handles security. The Omnia D12036A covers that role as a single cylinder deadbolt lever lockset in solid brass, and the D12036AC as the double cylinder version. Confirm door thickness first: the Missoula set fits 1-3/8 inch to 1-3/4 inch doors.
11) What is the Missoula sideplate lockset made of?
Bronze, sandcast, as part of Emtek's Sandcast Bronze collection. The casting gives the plate its slightly irregular surface and heft, which is the point of the look on a rustic or timber-frame door.
12) I need matching hardware on a rustic home where some doors lock and some do not - how do the Emtek Missoula and the Omnia D12036 options differ in material?
The Emtek 71023 Missoula sideplate lockset is from the Sandcast Bronze collection, bronze substrate, offered in Flat Black Bronze, Medium Bronze and Tumbled White Bronze. The Omnia D12036A, D12036AC and D12036PD are solid brass lever locksets. If visual consistency across locking and non-locking doors matters, keep to one family rather than mixing a sandcast bronze passage set with brass keyed sets on adjacent openings.
