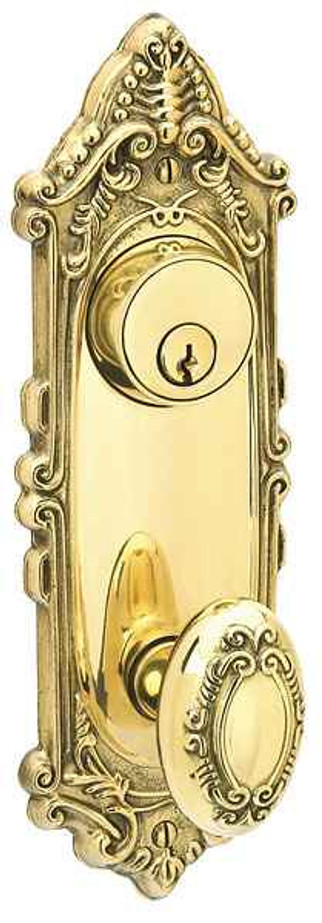

Emtek 8090 Victoria 3-5/8" C-to-C Keyed Sideplate Lockset, Passage/Single Keyed - Brass Tubular

Both. The 8090 Victoria keyed sideplate set covers doors from 1-3/8 inch through 1-3/4 inch, so it works on older interior slabs and on standard modern exterior doors alike. There's a door thickness field on the order form, so state your actual thickness when you place the order and the set ships with the right hardware for it.

Standard prep. The 8090 uses one 2-1/8 inch cross bore, the same hole a normal bored knob or lever set uses, so a door already prepped for a tubular lockset takes it without redrilling the face. Backset is adjustable between 2-3/8 and 2-3/4 inches, which are the two backsets found on nearly every residential door, so the existing edge bore lines up too. The sideplate covers the face around the bore, so it hides the ring of the old rose.

Single cylinder. The 8090 Victoria takes a key on the outside and a thumbturn or interior trim on the inside, so nobody needs a key to get out. That's the right choice for a normal entry door. If you have glass within reach of the interior trim and your local rules push you toward a key on both sides, the Omnia D12036AC is a double cylinder sideplate lever lockset instead.

Yes. Keying is selected at order time as keyed different or keyed alike, so a run of 8090 sets can all be cut to one key. There's also a keying-to-code field if you already have a key code you need matched to existing locks on the property.

The Emtek 8090 Victoria sideplate lockset is a single cylinder keyed entry set, so it takes a key outside and a thumbturn or knob inside. When an opening needs a key on both faces, the Omnia D12036AC is a double cylinder deadbolt lever lockset with a sideplate design in solid brass. The single cylinder counterpart in that same Omnia family is the D12036A. Double cylinder keying on the interior face is restricted by egress code in many jurisdictions, so confirm the requirement for the building before specifying it.

Both are single cylinder brass sideplate style sets, so they cover the same job on an entry door, but they are not hole-for-hole interchangeable. The Emtek 8090 Victoria works to a 3-5/8 inch center to center between the lock and the deadbolt bore, while the Omnia D12036 series plates in this family are built around a 5-1/2 inch center to center on the dummy version. On a retrofit, measure the existing bore spacing in the door first and order the set that matches it, since changing center to center means new boring, not just new trim.

A sideplate set puts the knob or lever on a long vertical backplate rather than a small round rose. On the 8090 Victoria that plate carries the trim and the cylinder at 3-5/8 inch center to center, so the key and the knob sit that far apart on the plate. Mechanically it's still a tubular bored lock in a 2-1/8 inch bore. The difference is coverage and appearance, not function, which is why it's the usual fix when you're replacing older hardware that left marks on the door face.

Complete set. The 8090 ships with the knob or lever you chose, the latch, and the strike plate. The latch faceplate is available round corner or square corner so it drops into the mortise already cut in your door edge. Nothing else is needed to hang it on a prepped door.

The inside trim is chosen from Emtek's full brass knob and lever range, so you're not locked to the Victoria knob. Levers run from the Stuttgart and Helios through Athena, Hermes, Cortina, Milano and Rustic; knobs include the Victoria, Providence, Egg, Melon, Octagon, Square, and crystal options like the Windsor, Hampton and Georgetown. Anything in the brass knob or lever range can be ordered on this set. Pick a lever and handing becomes mandatory.

It's a residential-duty product. The 8090 Victoria is built for houses, condos and similar openings, not for the cycle counts of a commercial entrance or a high-traffic multi-family door. For a rental unit door or a decorative front entry it's in its element; for a building's main door or an office suite, specify a commercial-duty bored lock instead.

They're the same idea from two brands with different configurations. The 8090 Victoria is a single cylinder entry set on a 3-5/8 inch center-to-center plate. Omnia's sideplate lever range splits by function: the D12036A is single cylinder, the D12036AC is double cylinder, and the D12036PD is a double dummy on a 5-1/2 inch center-to-center plate for a door that doesn't latch, like a closet or a fixed french door leaf. If your plate spacing has to match hardware already on other doors, that center-to-center number is what decides it.

A dummy set, not this one. The 8090 Victoria is a keyed entry lock with a working latch, so it's wrong for a closet or a stationary french door leaf. The Omnia D12036PD is a double dummy sideplate lever set with plates on both faces, 5-1/2 inch center to center, made for exactly that opening.

The Emtek 8090 Victoria is a keyed entry lockset, which is more hardware than a non-latching door needs. For a door that only has to match the trim without locking or latching, the Omnia D12036PD is a double dummy deadbolt lever lockset with plates on a 5-1/2 inch center to center. Note that the 5-1/2 inch spacing does not line up with the 3-5/8 inch center to center of the Emtek 8090, so a dummy set on those plates is a match in appearance only, not in existing plate holes.

Five: Oil Rubbed Bronze (US10B), Satin Nickel (US15), Polished Brass Lifetime (US3), Unlacquered Brass (US3NL), and French Antique (US7). Unlacquered brass is the one that will patina, since it has no clear coat; the lifetime polished brass holds its shine. All five are on solid brass, which is what lets Emtek offer a living finish at all.

It's an optional latch that retracts on a shorter turn of the knob or lever than the standard latch. Order it where you want a lighter, shorter throw motion at the trim; otherwise leave the latch on Standard and the set ships with the normal one. Either way the latch is included in the set.

The Emtek 8090 Victoria is built as residential entry hardware in brass with a tubular lock, adjustable to a 2-3/8 inch or 2-3/4 inch backset and doors 1-3/8 inch to 1-3/4 inch thick. It suits apartment, condo and single family entries. The Omnia D12036A is the comparable single cylinder deadbolt lever lockset in solid brass if a different plate style is wanted on the same kind of opening. For an opening that has to meet a commercial cycle or grade requirement on a drawing, specify a set carrying that stated grade rather than a residential brass sideplate.
