Emtek 8102 Belmont 7-1/2" Non-...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$306.00
$244.80

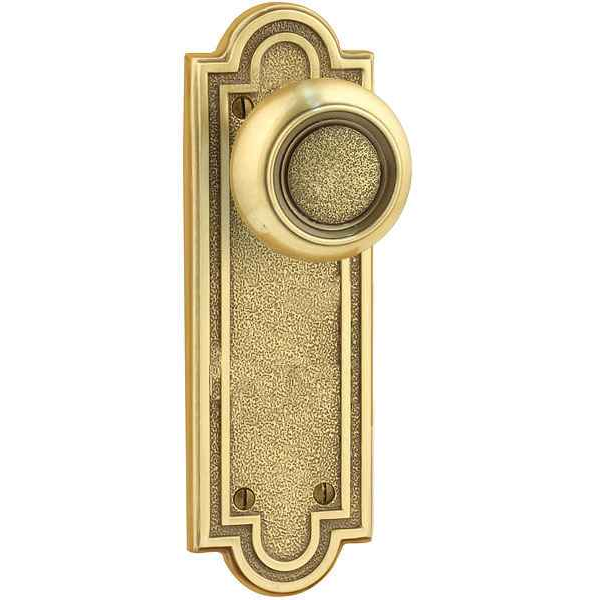

Emtek 8102 Belmont 7-1/2" Non-Keyed Sideplate Lockset, Passage - Brass Tubular

Emtek 8102 Belmont 7-1/2" Non-Keyed Sideplate Lockset, Passage - Brass Tubular

(No reviews yet) Write a Review

Model: 8102-US7
From the Brass Collection
$306.00
$244.80
Selected Finish is
Selected Knob or Lever Style for Inside Trim is
Selected Handing is
Selected Backset is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$306.00
$244.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek 8102 Belmont 7-1/2" Non-Keyed Sideplate Lockset, Passage - Brass Tubular

  • Can be ordered with any Brass Knob or Lever Style
  • Sold as complete set. Includes Knob or Lever, Latch and Strike Plate
  • One Standard 2-1/8" Door Prep
  • Standard latch is for 2-3/8" backset. Specify 2-3/4" backset if required
  • Handing required for Leverset



Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass

Product Specs

Subcategory:
Non-Keyed Sideplate Locksets
Collection:
Brass
Product Type:
Sideplate Locksets
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Commercial/Residential:
Residential
Lock Type:
Tubular
Keyed:
No
Keyed Function:
Non-Keyed
Series:
Belmont
Theme:
American Designer
Electronic:
No
Lock Function:
Passage
MAP Policy:
Yes
Product Model:
8102
Product Function:
Passage
Product Size:
7-1/2"
Product Style:
American Designer
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 8102-US7 – Frequently Asked Questions

1) Will the Emtek 8102 Belmont sideplate lockset fit a standard 2-1/8 inch bored door?
Yes. The Belmont 8102 uses one standard 2-1/8 inch cross bore, so it drops onto a door already prepped for a normal tubular knob or lever. The latch is adjustable for a 2-3/8 or 2-3/4 inch backset, and the door can be 1-3/8 to 1-3/4 inches thick. The 7-1/2 inch sideplate covers a larger area of the stile than a round rosette, so on a narrow stile check that there is room for the plate itself.
2) What does passage function mean on the Emtek Belmont 8102 and where should I use it?
Passage means no lock and no key. The Belmont 8102 is non-keyed, so both sides always turn and the latch simply holds the door closed. Use it on hall, closet, pantry and den doors. If you need the door to lock from inside, you want a privacy version rather than this passage set, and for an entry door you need a keyed lockset or a deadbolt.
3) Do I have to specify handing when ordering the Emtek 8102 Belmont lockset?
Handing is a required choice, right hand or left hand. It matters for levers, which have to point down toward the latch edge on the correct side. Stand outside the door, and if the hinges are on the right it is right hand. Knob styles are symmetrical, but the order still asks you to pick a hand.
4) Which backset should I order for the Emtek 8102, 2-3/8 or 2-3/4 inch?
Measure from the edge of the door to the center of the existing bore. Residential interior doors are usually 2-3/8 inches, which is the standard latch here; 2-3/4 inches is common on heavier or commercial-style prep and must be specified. Both are offered on the Belmont 8102, so match what is already drilled rather than guessing.
5) I need a matching handle on a closet or pantry door that does not latch at all - is the Emtek 8102 the right part?
The Emtek 8102 Belmont is a working passage set: it includes a latch and strike plate and the handle retracts the latch. If the door does not need a latch - a false door, a ball-catch closet, or an inactive leaf - the Omnia D12036PD is a double dummy lever lockset with plates, surface mounted with no latch, spaced 5-1/2 inch center to center.
6) What comes in the box with the Emtek Belmont 8102 sideplate set?
It ships as a complete set: the sideplates, the knob or lever style you choose, the latch, and the strike plate. You pick the inside trim from the Emtek brass knob and lever designs, the backset, the handing, and the finish. Nothing else is needed for a standard 2-1/8 inch bored door.
7) What finishes does the Emtek Belmont 8102 passage lockset come in?
Five: Oil Rubbed Bronze (US10B), Satin Nickel (US15), Polished Brass Lifetime (US3), Unlacquered Brass (US3NL), and French Antique (US7). Unlacquered brass is left raw and will patina with handling; the lifetime polished brass is coated to hold its shine. If you are matching other openings in a house, US10B and US15 are the two easiest to carry across a whole floor.
8) Can I choose any Emtek knob or lever on the Belmont 8102 sideplate?
Any brass knob or lever style can be paired with it, and the trim list runs from crystal knobs like Bristol and Windsor through levers such as Stuttgart, Athena, Milano and Rustic, plus the knurled and marble L-Square, T-Bar and R-Bar designs. Inside trim is a required selection when you order, so decide the style before checkout.
9) Is the Emtek 8102 Belmont rated for commercial use?
It is a residential product, solid brass tubular construction in the Emtek brass collection. For a high traffic commercial opening you want a Grade 1 or Grade 2 cylindrical or mortise lock instead; the Belmont sideplate is decorative residential hardware.
10) I need a matching deadbolt with a sideplate, not a passage set. What else is there?
The Belmont 8102 is passage only, no key and no bolt. For a sideplate style deadbolt, Omnia offers the D12036A single cylinder and the D12036AC double cylinder lever locksets in solid brass, and the D12036PD double dummy version with plates at 5-1/2 inch center to center for a non-functioning door. Finishes and trim will not match Emtek exactly, so keep one brand per opening group where appearance matters.
11) What is the difference between the Omnia D12036A and D12036AC deadbolt lever locksets?
Both are solid brass deadbolt lever locksets on a sideplate. The D12036A is single cylinder, keyed on the outside with a thumbturn inside. The D12036AC is double cylinder, taking a key on both sides - the usual choice near glass, where local code allows it. Neither is a passage device like the Emtek 8102 Belmont, which is non-keyed.
12) Can I run the Emtek 8102 Belmont on every door in a house and just key the front door?
Yes, that is the normal split. The Emtek 8102 Belmont is a residential non-keyed passage sideplate set in brass, and it takes any Emtek brass knob or lever style, so hall, bedroom, and office doors can all share one look. The front door then takes a keyed unit such as the Omnia D12036A single cylinder deadbolt lever lockset in solid brass.
