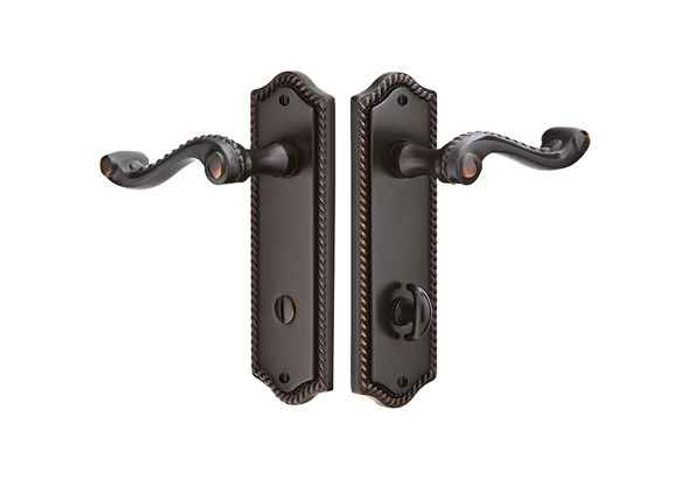

Emtek 8223 Rope Plate 3-3/8" CTC - Sideplate Lockset - Brass Thumbturn Privacy Non-Keyed Style

Yes, it drops into one standard 2-1/8 inch cross bore. Door thickness range is 1-3/8 to 1-3/4 inches, and the latch is adjustable for a 2-3/8 or 2-3/4 inch backset, so the two common residential prep dimensions are both covered. The sideplate itself is 3-3/8 inch center-to-center, so the plate needs clear stile space above and below the bore.

No key. The 8223 is a non-keyed privacy (bed/bath) function: a brass thumbturn locks it from inside, which is what you want on a bedroom or bathroom door. If you need a keyed entry or a deadbolt function, this is the wrong set to order.

It ships as a complete set: the knob or lever you specify, the sideplates, the tubular latch, and the strike plate. The latch faceplate is available round corner or square corner to match your existing door mortise.

Handing is required if you pick a lever. Levers are handed right or left, so you need to know which way the door swings and which side the hinges are on before ordering. Knobs are not handed, but the order still asks for a hand on this configuration.

The Emtek 8223 Rope sideplate set is a non-keyed privacy/bed/bath function with a brass thumbturn, so it is not meant for an exterior opening. For a keyed sideplate opening, the Omnia D12036A is a single cylinder deadbolt lever lockset in solid brass with sideplate construction, and the Omnia D12036AC is the double cylinder version of the same lockset, which takes a key on both sides instead of a thumbturn inside. Choose the double cylinder only where local code permits a key-operated inside on an egress door.

The Emtek 8223 Rope sideplate set is a functioning privacy lockset with a thumbturn, a latch and a strike, and it requires a 2-1/8 inch cross bore and a 2-3/8 or 2-3/4 inch backset bore in the door. On a closet door or a non-latching pair that only needs a pull, a double dummy is the correct part - the Omnia D12036PD is a solid brass dummy deadbolt lever lockset with plates on a 5-1/2 inch center-to-center, which surface mounts with no latch. Note the Emtek 8223 plate is a 3-3/8 inch center-to-center, so the two are not visually interchangeable on adjacent doors.

Yes. The Rope sideplate accepts any Emtek brass knob or lever style, so you can carry one grip design across bedroom privacy doors, passage doors, and entry sets. Options run from traditional knobs like Rope, Victoria, and Providence to crystal knobs like Windsor and Bristol and contemporary levers like Helios and Stuttgart.

Different functions entirely. The Emtek 8223 is a non-keyed privacy set with a thumbturn for bedrooms and baths. The Omnia D12036A is a single cylinder deadbolt lever lockset and the D12036AC is the double cylinder version, both for keyed exterior openings. Omnia also offers the D12036PD as a double dummy with plates at 5-1/2 inch center to center, for a door that does not latch at all.

A sideplate lockset puts the knob or lever on a long vertical plate rather than a small round rose, so it covers more of the stile and gives a traditional look. On the Emtek 8223 the plate measures 3-3/8 inch center to center in the Rope pattern. Because the plate is longer than a rose, it will also cover minor prep scarring left by a previous set, which a rosette will not.

The Emtek 8223 Rope sideplate set is classified as residential and uses a tubular lock, fitting doors 1-3/8 to 1-3/4 inch with a standard 2-1/8 inch cross bore. It is a decorative brass privacy set rather than a heavy-traffic commercial lockset. The Omnia sideplate deadbolt lever locksets, such as the single cylinder D12036A, are also solid brass decorative sets, so if the specification on the job calls for a commercial-duty cylindrical or mortise lock, neither family is the answer - keep the 8223 for residential bed and bath openings.
