Emtek Arts & Crafts Leversets ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$240.00
$192.00

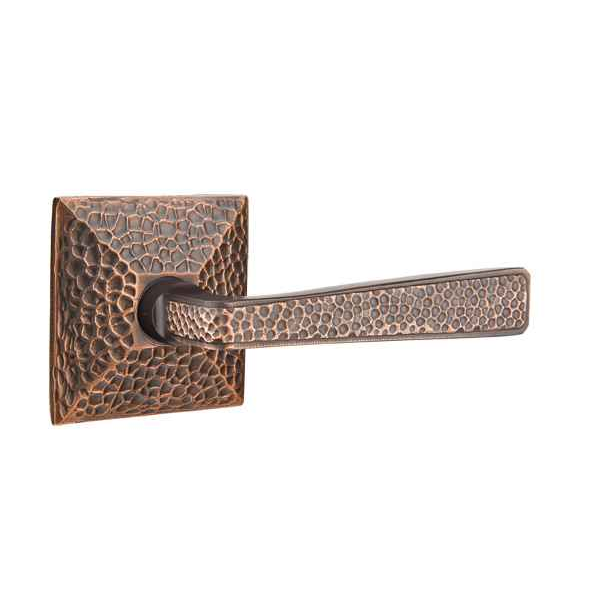

Emtek Arts & Crafts Leversets - Hammered Lever, Passage Set

Emtek Arts & Crafts Leversets - Hammered Lever, Passage Set

(No reviews yet) Write a Review

Model: 5105.HM.RH.US15
From the Brass Collection
$240.00
$192.00
Selected Latch is
Selected Rosette is
Selected Finish is
Selected Handing is
Selected Backset is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$240.00
$192.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek Arts and Crafts Leversets - Hammered Lever, Passage Set

  • Can be ordered with any Brass rosette
  • Sold as complete set. Includes Latch and Strike Plate
  • 28 Degree Latch (included when CF Mechanism is selected)
  • Fits any door between 1-3/8” to 2-1/4" thick with a 2-1/8" bore standard door prep*
  • Standard latch is for 2-3/8" backset. Specify 2-3/4" backset if required

* STRETTO rosette requires a 1-1/4” diameter bore hole and 2-hole door preparation for thumbturn privacy





Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass

Manufacturer Resources

Emtek LookBook

Product Specs

Subcategory:
Leversets
Collection:
Brass
Product Type:
Leversets
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Commercial/Residential:
Residential
Handle Type:
Lever
Lock Type:
Tubular
Series:
Hammered
Theme:
Arts & Crafts
Electronic:
No
Keyed Function:
Non-Keyed
Keyed:
No
Lock Function:
Passage
Product Attribute:
Cylindrical Locks
MAP Policy:
Yes
Product Function:
Passage/Hall/Closet
Product Style:
Arts & Crafts
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 5105.HM.RH.US15 – Frequently Asked Questions

1) Will the Emtek Arts & Crafts hammered lever passage set fit a 1-3/8 inch door with a standard 2-1/8 inch bore?
Yes. The hammered lever passage set works on doors from 1-3/8 to 1-3/4 inches thick with the standard 2-1/8 inch cross bore prep, so an existing bored door needs no new holes. Latch backset is adjustable, and you pick 2-3/8 or 2-3/4 inches when you order.
2) What backset do I order for an Emtek Arts & Crafts passage leverset, 2-3/8 or 2-3/4?
Backset is a required choice on the Emtek hammered passage set: 2-3/8 or 2-3/4 inches. Measure from the door edge to the center of the bore hole. Interior residential doors are usually 2-3/8; 2-3/4 turns up on thicker or exterior-style slabs. The standard latch ships 2-3/8, so specify 2-3/4 if that is what your prep measures.
3) Does the Emtek hammered passage lever come as a complete set, or do I have to buy the latch separately?
Complete set. Levers for both sides, rosettes, latch and strike plate are all included, so a passage door is done from one box. No cylinder or keying is involved, since a passage set has no lock function.
4) What does passage function mean on this Emtek leverset, and can I use it on a bedroom or bathroom?
Passage means the latch operates from both sides at all times and there is nothing to lock, which is what you want on a hall, closet, or a door that just needs to stay shut. It is not the right part for a bedroom or bath. For those, use a privacy set with a thumbturn.
5) Do I have to specify handing on the Emtek Arts & Crafts hammered lever?
Yes, handing is a required pick: left hand or right hand. Stand outside the door, on the side it swings away from; if the hinges are on your left it is left hand. Order the handing wrong on a lever and the handle points up the wrong way, so confirm it against the actual swing before you place the order.
6) Is the Emtek hammered leverset rated for commercial use in an office building or school?
No. The hammered lever passage set is a residential tubular lockset, solid brass, built for homes and light interior use. For a commercial corridor, classroom, or anything cycling all day, go to a Grade 1 or Grade 2 cylindrical passage lock instead, such as the Falcon K101 (Grade 1, heavy duty, fire rated) or the Accentra 5301LN Augusta (Grade 2).
7) My door is 2 inches thick - the Emtek Hammered passage set will not fit. What passage lever will?
The Emtek Arts and Crafts Hammered set fits doors 1-3/8 inch to 1-3/4 inch. For a 2 inch door, the Falcon K101 Grade 1 passage lever covers 1-3/8 inch to 2-1/4 inch, the Hager 2510 Grade 2 passage lever covers 1-3/8 inch to 2 inch, and the Arrow GL01 Grade 2 passage lock with Sierra lever covers 1-3/4 inch to 2 inch. All three keep the passage function.
8) What is a commercial-grade equivalent to the Emtek Arts and Crafts Hammered passage leverset for a high-traffic corridor door?
The Emtek Arts and Crafts Hammered passage set is a residential brass leverset with a tubular lock mechanism, so for corridor traffic look to a commercial passage lever instead. The Falcon K101 is a Grade 1 heavy duty passage lever with non-handed levers and a door thickness range of 1-3/8 inch to 2-1/4 inch, and the Corbin Russwin CL3110 is a Grade 1 vandal resistant passage lever for 1-3/4 inch to 2 inch doors. Both keep the same passage function - latch only, no lock - while adding the heavy duty rating that a corridor opening usually calls for.
9) I need a lever for a bedroom or bathroom door, not a hall door - what should I order instead of the Emtek Hammered passage set?
The Emtek Arts and Crafts Hammered set is a passage function, non-keyed, so it has no privacy lock at all. For a bedroom or bath, the Baldwin Estate 5103 privacy lever with 5048 rose covers the privacy function in a comparable decorative lever, and the Arrow MK02-TA is a privacy lockset if a knob suits the opening. The Kwikset 300BRNL Breton privacy lever set is another privacy option for doors 1-3/8 inch to 1-3/4 inch thick.
10) Do I have to specify handing on a passage lever, or can I get a non-handed one?
The Emtek Arts and Crafts Hammered passage set is ordered as left hand or right hand, so the handing has to be confirmed at the door before the order goes in. If a non-handed lever suits the job better - stocking one part for a whole floor, or a door whose swing is not settled - the Falcon B101 is a Grade 2 medium duty passage lever with a non-handed design and the Falcon K101 is the Grade 1 heavy duty passage lever with non-handed levers.
11) What is the difference between the standard latch, the 28 degree latch, and the CF mechanism on Emtek levers?
Three latch choices. Standard latch is the conventional option. The 28 Degree Rotation Latch shortens how far the lever has to swing before the latch retracts, a lighter action at the handle. The CF Mechanism gives you rosettes with no exposed screws for a clean face, and it includes the 28 degree latch. Pick CF if you care about the look of the rose; pick standard if you do not.
12) Which rosettes can I get with the Emtek hammered lever, and can I match rosettes across different doors?
Three rose styles: Arts & Crafts, Hammered, and Quincy. The lever itself can be ordered with any brass rosette, which is how you keep one lever design running through a house while varying the rose, or hold one rose style across passage, privacy, and keyed doors on the same floor.
13) What finishes does the Emtek Arts & Crafts hammered passage lever come in, and will unlacquered brass change over time?
Four finishes: Flat Black (US19), Oil Rubbed Bronze (US10B), Satin Nickel (US15), and Unlacquered Brass (US3NL). Unlacquered brass has no clear coat, so it patinas with handling and will darken unevenly on a high-traffic door, which is the point for an Arts and Crafts interior but not what you want if you need every door to look identical for years. Oil rubbed bronze is a living finish too. Flat black and satin nickel hold their appearance.
14) What is a lower-cost passage leverset that does the same job as the Emtek Arts and Crafts Hammered lever?
For a plainer passage lever with the same latch-only operation, the Kwikset 200BRNL Breton passage lever set is Grade 3 for doors 1-3/8 inch to 1-3/4 inch, and the Callan Asheville is a Grade 3 passage leverset in satin nickel. The Bravura Atlanta, Orlando, and Tampa passage leversets are Grade 2 - Atlanta and Orlando on round trim, Tampa on square trim. The Emtek set is the one to keep when the door needs the Arts and Crafts styling and a brass body.
15) Is a dummy lever the same thing as the Emtek Hammered passage set?
No. The Emtek Arts and Crafts Hammered passage set has a working latch - it ships as a complete set with latch and strike plate, and the lever retracts the latch. A dummy lever is fixed and has no latch at all, used on a door held shut by a ball catch or on the inactive leaf of a pair. If that is what the opening needs, the Baldwin Estate 5103 half dummy lever with 5048 rose is offered in left hand and right hand versions, and the BEST 9K Series 1DT is a Grade 1 single dummy trim.
16) What is the difference between the Emtek Arts and Crafts Hammered passage lever and the Design Hardware J75 passage lever?
Both are passage function levers - latch only, no key, no privacy. The Design Hardware J75 is a Grade 2 passage lever lockset with a flat lever for 1-3/4 inch doors. The Emtek Arts and Crafts Hammered set is a residential brass lever fitting 1-3/8 inch to 1-3/4 inch doors, adjustable to a 2-3/8 inch or 2-3/4 inch backset, and it can be ordered with an Arts and Crafts, Hammered, or Quincy rosette in Flat Black, Oil Rubbed Bronze, Satin Nickel, or Unlacquered Brass.
17) I need a keyed lever on the same door style as the Emtek Arts and Crafts Hammered passage set - what are my options?
The Emtek Arts and Crafts Hammered passage set is non-keyed, so a keyed opening needs a different lock. In decorative levers, the Deltana 6201 Manchester, 6411 Morant, and 6431 Linstead are entry function levers for doors 1-3/8 inch to 2 inch. On the commercial side, the Hager 2525 is a Grade 2 entry lever for 1-3/8 inch to 2 inch doors and the Dexter C1000 entry/office is a Grade 1 keyed lever with clutching for 1-3/8 inch to 1-3/4 inch doors.
18) Can I use a keyless pushbutton lever in place of the Emtek Hammered passage set on a door that needs controlled access?
The Emtek Arts and Crafts Hammered set is non-electronic and non-keyed - it latches only, with no access control. For code-controlled access on the same style of opening, the Lockey 2835 is a mechanical pushbutton keyless lever lock with passage function and ADA compliance for doors 1 3/16 inch to 2 inch, the Lockey 2835DC adds double combination, and the Lockey 1150 is a heavy duty mechanical keypad lever set with passage function for 1-1/8 inch to 2 inch doors. The Delaney LP250 is a Grade 2 electronic keypad leverlock if power is preferred over a mechanical keypad.
19) For a school or institutional building standardizing on one passage lever, is the Emtek Arts and Crafts Hammered lever the right choice?
The Emtek Arts and Crafts Hammered lever is a residential brass passage set, best suited to interior hall, closet, and dwelling-unit doors. For standardizing corridors and classrooms, the Falcon T101 is a Grade 1 heavy duty passage lever with pressure release technology, the Design Hardware X75 is a Grade 1 passage lever lockset with a flat lever for 1-3/4 inch doors, and the Accentra 5301LN Augusta is a Grade 2 passage lever in the 5300 Series. Many institutions run the decorative lever in the units and the commercial lever in the shared corridors.
20) Can I get a split finish on an Emtek leverset, with one finish in the hallway and another in the room?
Yes. Split finish is an option you write in when ordering the hammered passage set, so the two sides of the door can carry different finishes out of the four offered: flat black, oil rubbed bronze, satin nickel, and unlacquered brass. There is also a free-text door thickness field and a comments field if the opening needs anything called out.
