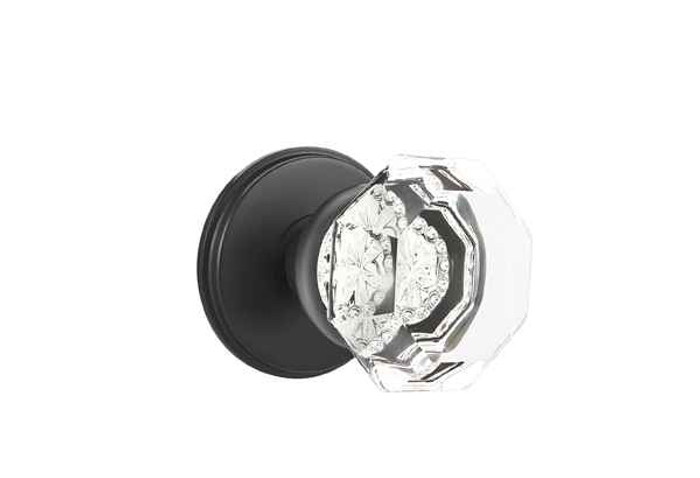

Emtek Classic Brass Crystal Knobsets - Old Town Knob, Passage Set

Emtek Classic Brass Crystal Knobsets - Old Town Knob, Passage Set

(No reviews yet) Write a Review

Model: 8100.OT.US15
From the Glass & Porcelain Collection
$240.00
$192.00
Selected Latch is
Selected Rosette is
Selected Finish is
Selected Backset is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$240.00
$192.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek Classic Brass Crystal Knobsets - Old Town Knob, Passage Set

  • Can be ordered with any Brass rosette
  • Sold as complete set. Includes Latch and Strike Plate
  • 28 Degree Latch (included when CF Mechanism is selected)
  • Fits any door between 1-3/8” to 2-1/4" thick with a 2-1/8" bore standard door prep*
  • Standard latch is for 2-3/8" backset. Specify 2-3/4" backset if required

* STRETTO rosette requires a 1-1/4” diameter bore hole and 2-hole door preparation for thumbturn privacy




Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass

Product Specs

Subcategory:
Knobsets
Collection:
Glass & Porcelain
Product Type:
Knobsets
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Commercial/Residential:
Residential
Handle Type:
Knob
Lock Type:
Tubular
Series:
Old Town
Theme:
American Classic
Electronic:
No
Keyed Function:
Non-Keyed
Keyed:
No
Lock Function:
Passage
MAP Policy:
Yes
Product Function:
Passage
Product Style:
Glass
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 8100.OT.US15 – Frequently Asked Questions

1) Will the Emtek Old Town crystal passage knob fit a standard 2-1/8 inch bored door?
Yes. The Old Town passage knobset drops into standard door prep: a 2-1/8 inch cross bore, doors 1-3/8 to 2-1/4 inches thick. One exception on the rosette choice, the STRETTO rosette needs a 1-1/4 inch diameter bore and a 2-hole prep. Latch and strike plate come in the box, so a bored door with existing prep takes it without new machining.
2) What backset do I need to order for the Emtek Old Town knob, 2-3/8 or 2-3/4?
Backset is a required choice on the Old Town passage set, 2-3/8 or 2-3/4 inches. Measure from the door edge to the center of the bore hole. Most residential interior doors land on 2-3/8; 2-3/4 shows up on heavier or commercial-style prep. The standard latch ships for 2-3/8, so 2-3/4 has to be called out on the order.
3) Does an Emtek Old Town passage knob lock, or is it just a latch?
No lock at all. Passage function means the knob turns the latch from both sides at all times, with no key and no thumbturn. Use it on halls, closets, and pantry doors. For a bedroom or bathroom you want a privacy set with a push-button or thumbturn instead, and for an exterior or lockable office door you need a keyed entrance function.
4) Can I put the Emtek Old Town passage knob on a commercial corridor door?
The Old Town knob is a residential knobset. Commercial corridor and closet openings are usually specified with a graded cylindrical passage lock: the Schlage D10S Orbit knob is a Grade 1 heavy duty passage latch, the Falcon X101 is a Grade 1 heavy duty passage knobset with an interchangeable core, fire rated, covering doors 1-3/8 inch to 2-1/4 inch, and the Corbin Russwin CK4310 Global knob is a Grade 1 passage/closet lock for 1-3/8 inch to 2 inch doors.
5) What is a comparable passage knob to the Emtek Old Town crystal knob when the door needs a Grade 2 rated set?
The Emtek Old Town knob is a residential passage knobset with a tubular lock and brass construction, and it does not carry an ANSI grade. Where a graded passage knob is called for, the Dexter C2000 Series passage cylindrical ball knob is a Grade 2 non-keyed passage set fitting doors 1-3/8 inch to 1-3/4 inch, and the Corbin Russwin CK4410 Global knob is a Grade 2 passage/closet cylindrical lock over the same 1-3/8 inch to 1-3/4 inch door range. Both are plain metal knobs rather than crystal, so they read as utility hardware next to the Old Town glass knob.
6) The Old Town passage knob will not work on my bedroom door - what locks instead?
A passage set has no locking mechanism, so for a bedroom or bath you need a privacy knob with a thumbturn. The Baldwin Estate 5077 Bethpage privacy knob with R027 rose and the Deltana 6112 St. Thomas knob, which covers doors 1-3/8 inch to 2 inch, are both privacy/bed/bath function. The Dexter C2000 privacy ball knob is a Grade 2 privacy set for 1-3/8 inch to 1-3/4 inch doors.
7) What should I use instead of the Old Town passage knob on an exterior or keyed door?
The Old Town knob is non-keyed, so an entry opening needs a keyed set. The Kwikset 400P-CP Polo keyed entry knob is a Grade 3 entrance set for 1-3/8 inch to 1-3/4 inch doors with a round corner adjustable latch and round corner strike, the Deltana 6901 Portland knob is an entry set for 1-3/8 inch to 1-3/4 inch doors, and the Callan Edgewood is a Grade 2 entrance knobset.
8) My door is 2 inches thick - will the Old Town knob fit, or do I need something else?
The Old Town knobset fits doors 1-3/8 inch to 2-1/4 inch thick with a 2-1/8 inch bore standard door prep. If a thicker-door passage set is what the opening calls for from another line, the Falcon X101 passage knobset covers 1-3/8 inch to 2-1/4 inch and the Corbin Russwin CK4310 passage/closet lock covers 1-3/8 inch to 2 inch, while the Arrow MK01 and Dexter C2000 passage knobs stop at 1-3/4 inch.
9) What is the CF mechanism option on Emtek knobsets and should I pick it?
CF gives you rosettes with no exposed screws, so the trim reads clean from the face of the door. It includes the 28 degree rotation latch. The alternatives are the 28 degree latch on its own or the standard latch. Pick CF when the hardware is on show and you do not want fasteners visible in the rose.
10) Can I match the rosette shape on Emtek Old Town knobs to the rest of my doors?
Seven rosette shapes are offered on the Old Town knob: #8, Oval, Quincy, Rectangular, Regular, Watford and Wilshire. Any brass rosette in the range can be ordered with the knob, so a whole floor of doors can carry one rose profile even where functions differ.
11) What comes in the box with an Emtek Old Town passage set?
It ships as a complete set: both knobs, the rosettes you specified, the latch and the strike plate. The latch faceplate is available round corner or square corner, so it can be matched to the existing mortise in the door edge rather than recutting it.
12) I need a passage knob in solid brass but not crystal. What else is there?
The Old Town knob is a crystal knob on brass trim, part of Emtek's glass and porcelain group. If you want the same traditional look in solid metal, the Omnia 434/PA is a traditional egg-shaped brass passage latchset, and the Baldwin Estate 5011 Colonial passage knob with 5058 rose is another solid-brass residential passage option. For a plain builder-grade hall and closet knob, the Kwikset 200P Polo passage set covers it.
13) I have Emtek privacy knobs on the bedrooms. Will the passage sets match?
They will, as long as you order the same knob design, rosette and finish. Passage and privacy in the Old Town line share the trim, so the only visible difference between a hall door and a bedroom door is the thumbturn. Specify the same rosette shape and finish code across the fleet and the openings read identically.
14) What is a straightforward passage knob substitute if I do not need the rosette and finish choices of the Old Town set?
The Old Town knob is configured across finish, rosette and latch selections and can be ordered with any brass rosette. Where a single preconfigured passage knob is enough, the Baldwin Estate 5000 Baltimore knob comes preconfigured with the 5048 rose, 2-3/8 inch backset and full lip strike, the Pamex FTF Baron is a Grade 3 passage knob lockset for 1-3/8 inch to 1-3/4 inch doors, and the Bravura Albany is a Grade 2 passage knobset with round trim.
15) I need one knob design across passage, privacy and entry doors in a house - can the Old Town do that?
The Old Town knob covered here is the passage function only. If matching functions from a single line matters, the Deltana knob families run across functions - the 6171 Round knob and 3381 Egg knob are entry sets for 1-3/8 inch to 2 inch doors and the 6112 St. Thomas is privacy over the same range - and the Schlage Residential F500 Plymouth with Georgian knob is sold as a combo pack with adjustable backsets and dual strikes for 1-3/8 inch to 1-3/4 inch doors.
16) Is exit device knob trim a substitute for a passage knobset?
No. The Old Town knob is a complete tubular passage set with its own latch and strike. The Sargent 28C-KNOB is exit device trim with knob and rose for 1-3/4 inch doors and the Imperial USA ED-BKL580 is knob trim in storeroom function - trim of that kind mounts to an exit device and does not operate a bored latch on its own.
17) What finishes does the Emtek Old Town crystal knob come in, and can I mix finishes?
Ten finishes: Flat Black (US19), French Antique (US7), Oil Rubbed Bronze (US10B), Pewter (US15A), Polished Brass Lifetime (US3), Polished Chrome (US26), Polished Nickel Lifetime (US14), Satin Brass (US4), Satin Nickel (US15), and Unlacquered Brass (US3NL). A split finish can be specified on the order if you want one finish inside the room and another in the hall.
18) What is a simpler passage knob for a rental turn if the crystal Old Town set is more than the unit needs?
The Old Town knob is a brass and glass knobset with selectable rosette and finish. For a plain interior hall or closet turn, the Kwikset 200P Polo passage knob ships with a 6AL latch and RCS round corner strike, the Bravura Lynchburg is a Grade 2 passage knobset with round trim, and the Arrow RK01 is a Grade 2 non-keyed passage ball knob for 1-3/8 inch to 1-3/4 inch doors.
