Emtek Emtek Designer Brass Leverset - Rope Lever, Passage Set EMTEK-DESIGNER-LEVERSETS-ROPE-PASSAGE

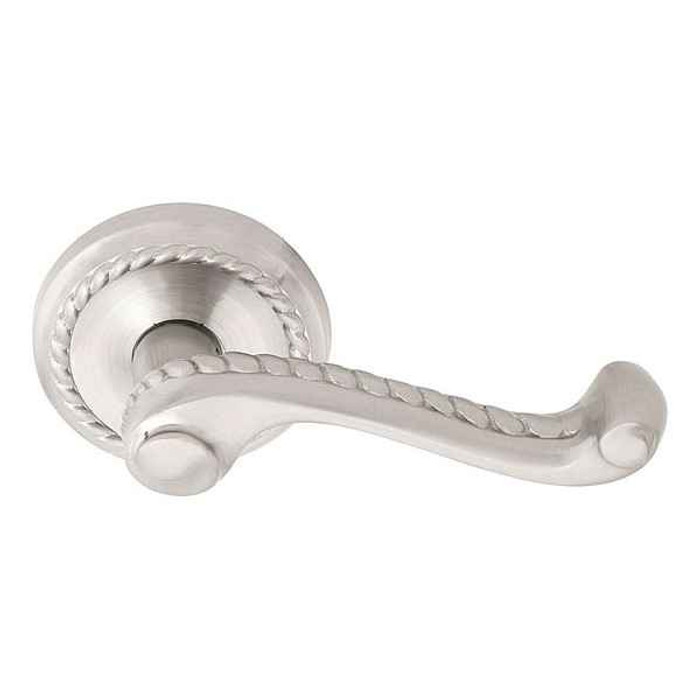

Emtek Designer Brass Leverset - Rope Lever, Passage Set

(No reviews yet) Write a Review

Model: 8100.RL.RH.US15
From the Brass Collection
$240.00
$196.36
Selected Latch is
Selected Rosette is
Selected Handing is
Selected Finish is
Selected Backset is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$240.00
$196.36
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek Designer Brass Leverset - Rope Lever, Passage Set

  • Can be ordered with any Brass rosette
  • Sold as complete set. Includes Latch and Strike Plate
  • 28 Degree Latch (included when CF Mechanism is selected)

- Fits any door between 1-3/8” to 2-1/4" thick with a 2-1/8" bore standard door prep*
- Standard latch is for 2-3/8" backset. Specify 2-3/4" backset if required


* STRETTO rosette requires a 1-1/4” diameter bore hole and 2-hole door preparation for thumbturn privacy




Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass

Product Specs

Subcategory:
Leversets
Collection:
Brass
Product Type:
Leversets
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Commercial/Residential:
Residential
Handle Type:
Lever
Lock Type:
Tubular
Series:
Rope
Theme:
American Designer
Electronic:
No
Keyed Function:
Non-Keyed
Keyed:
No
Lock Function:
Passage
Product Attribute:
Cylindrical Locks
MAP Policy:
Yes
Product Function:
Passage/Hall/Closet
Product Style:
Traditional
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 8100.RL.RH.US15 – Frequently Asked Questions

1) Does the Emtek Rope lever work with a 2-3/4 inch backset, or only 2-3/8?
Both. Backset is a required choice on the order, 2-3/8 inch or 2-3/4 inch, and the latch supplied is adjustable between the two. The standard latch ships for 2-3/8 inch, so specify 2-3/4 inch if that is what your door is bored for. 2-3/8 is the usual interior backset and 2-3/4 the deeper one, so measure from the door edge to the center of the bore before you order.
2) Is the Emtek Rope lever handed, and how do I pick left or right?
Handing matters here. The Rope lever is ordered as Left Hand (LH) or Right Hand (RH). Stand on the outside of the door: if the hinges are on your left it is left hand, hinges on the right is right hand. Ordering the wrong hand gives you a lever pointing the wrong way, since a cast lever like this cannot be flipped in the field.
3) What is a passage set, and is this the right function for a bedroom or bathroom?
No, a passage set is the wrong choice for a bed or bath. The Emtek Rope lever in passage function is non-keyed and has no lock at all, so the lever simply retracts the latch from both sides. It is for hall, closet, and pantry doors where you only want the door to stay shut. For a bedroom or bathroom you want a privacy set with a thumbturn.
4) Will the Emtek Rope passage lever work on a 2 inch thick door?
The Emtek Rope lever passage set is specified for doors 1-3/8 inch to 1-3/4 inch thick. If the opening is thicker, the Falcon K101 Grade 1 passage lever covers 1-3/8 inch to 2-1/4 inch, the Dexter C1000 asylum function covers 1-3/8 inch to 2 inch, and the Hager 2510 Grade 2 passage lever covers 1-3/8 inch to 2 inch.
5) The Emtek Rope passage lever is residential - what do I use on a commercial opening that needs a graded passage lever?
The Emtek Rope lever passage set is a residential tubular passage lockset, so for a graded commercial opening step to a cylindrical passage lever such as the Falcon K101, a Grade 1 heavy duty passage lock with non-handed levers and a fire rating, or the Corbin Russwin CL3110 Grade 1 vandal resistant passage lever, also fire rated. If Grade 2 is what the spec calls for, the Accentra 5301LN Augusta and the Falcon B101 are both Grade 2 passage cylindrical lever locks.
6) What is the closest decorative equivalent to the Emtek Rope lever passage set from another designer brand?
The Baldwin Estate 5103 Passage Lever with 5048 Rose is the nearest designer-brand counterpart: it is a passage function lever set with a decorative round rose, the same non-keyed hall and closet function as the Emtek Rope passage set. The Emtek Rope set is brass with a choice of rosette shapes including Rope, Oval, Quincy, Rectangular and Watford, so it is the pick when the rose profile has to match other trim in the house; the Baldwin 5103 comes with its 5048 rose.
7) I need the same look on a bedroom or bathroom door - the Rope passage set does not lock. What do I order?
The Emtek Rope lever passage set is non-keyed passage function, with no locking at all, so it is for halls and closets. For a bed or bath door that needs a thumbturn, the Baldwin Estate 5103 Privacy Lever with 5048 Rose covers the privacy function in a decorative lever, and on the commercial side the Hager 2540 is a Grade 2 privacy cylindrical lock with the Withnell lever.
8) What is the CF mechanism option on the Emtek Rope lever, and should I order it?
CF gives you rosettes with no exposed screws, so the trim reads clean from both sides. It comes with the 28 degree rotation latch included. If you do not need the concealed-fastener look, the standard latch or the 28 degree latch on their own are the other two choices. The 28 degree latch shortens the lever rotation needed to pull the latch, which is easier on the wrist than a full-swing latch.
9) Does the Emtek Rope lever come with a latch and strike, or do I buy those separately?
It ships complete. The set includes the latch and the strike plate along with the lever trim, so nothing else is required to hang it on a bored door. Latch faceplate is available in round corner or square corner to match the mortise already cut in your door edge.
10) Can I mix the Rope lever with a different rosette to match the rest of my doors?
Yes, the Rope lever can be ordered on any brass rosette. The choices are #8, Lancaster, Oval, Quincy, Rectangular, Regular, Ribbon and Reed, Rope, Watford, and Wilshire. That is how you keep one lever design consistent while matching the rose shape already used elsewhere in the house.
11) What else is comparable to the Emtek Rope lever if I want a decorative brass passage lever?
On the decorative residential side, the Baldwin Estate 5103 passage lever with the 5048 rose is the closest peer in intent. If budget matters more than the cast brass look, Bravura's Grade 2 passage leversets (Atlanta, Orlando, Miramar, Tampa) cover the same hall and closet duty, and the Kwikset 200BRNL Breton is a Grade 3 passage lever for 1-3/8 to 1-3/4 inch doors. What the Emtek gives you that those do not is the rosette and finish mixing across a whole house of doors.
12) My door has no latch bore - I just need a pull on one side. Is the Rope passage set right?
No. The Emtek Rope lever passage set is a complete latching set that includes the latch and strike plate and requires a 2-1/8 inch cross bore. For a non-latching surface-applied lever on a closet or false door, use a dummy trim such as the Baldwin Estate 5103 half dummy, offered in left hand and right hand, the Accentra 455LN Augusta Grade 1 single dummy lever, or the BEST 7KC single dummy trim in Grade 2.
13) What is a lower-cost passage lever if the brass Emtek Rope set is more than the job needs?
For a builder-grade interior passage opening, the Kwikset 200BRNL Breton passage lever set is a Grade 3 passage lock for 1-3/8 inch to 1-3/4 inch doors, and the Callan Asheville AH5011 is a Grade 3 passage leverset in satin nickel. Both are single-design levers; the Emtek Rope set is brass and lets you pair the Rope lever with ten rosette styles and seven finishes including Unlacquered Brass and Oil Rubbed Bronze.
14) Is the Emtek Rope passage set handed, and are there non-handed passage levers instead?
The Emtek Rope lever passage set is ordered as left hand or right hand, so the handing has to be confirmed before the order goes in. If you would rather stock one part for both swings, the Falcon B101 Grade 2 and Falcon K101 Grade 1 passage levers are both non-handed designs.
15) I want the Rope lever look but the door needs to be keyed. What are my options?
The Emtek Rope lever passage set is non-keyed, so it will not take a cylinder. For a keyed decorative lever, the Deltana 6201 Manchester and 6431 Linstead are entry function levers that fit 1-3/8 inch to 2 inch doors, and on graded commercial hardware the Hager 2525 is a Grade 2 entry lever and the Cal-Royal AG05 a Grade 2 storeroom lever with a deadlocking latchbolt.
16) What finishes does the Emtek Rope passage lever come in, and will it patina?
Seven: French Antique (US7), Oil Rubbed Bronze (US10B), Pewter (US15A), Polished Brass Lifetime (US3), Polished Chrome (US26), Satin Nickel (US15), and Unlacquered Brass (US3NL). Unlacquered Brass has no clear coat, so it will darken and patina with handling, while the Lifetime Polished Brass is coated to hold its shine. A split finish can also be specified if you want different finishes inside and out.
17) What passage leversets come in a brass finish similar to the Emtek Rope set in Polished Brass?
The Emtek Rope lever passage set offers Polished Brass Lifetime US3 and Unlacquered Brass US3NL among its finishes. In a graded passage lever, the Bravura Miramar with round trim is a Grade 2 passage leverset in US4 satin brass, and the Cal-Royal AUS00 Grade 3 entrance lever uses a solid brass forged body if the opening is keyed rather than passage.
18) What if the closet door needs keyless code entry instead of a plain passage lever?
The Emtek Rope lever passage set is a mechanical non-electronic passage set. If the opening needs code entry, the Lockey 2835 mechanical pushbutton keyless lever lock has a passage function and fits doors 1-3/16 inch to 2 inch, the Lockey 1150 keypad lever set with double combination covers 1-1/8 inch to 2 inch, and the Delaney LP250 is a Grade 2 electronic keypad leverlock.
