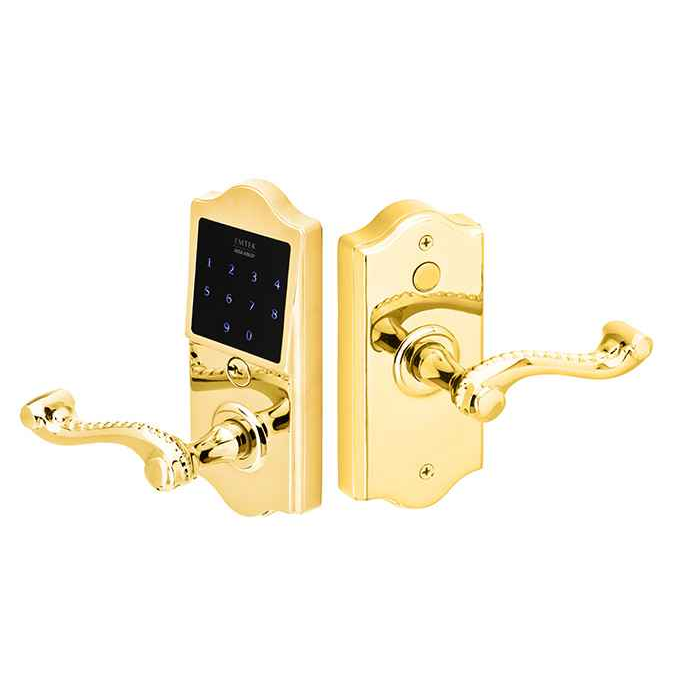

Emtek E4002 EMTouch Classic Keypad Leverset

Emtek E4002 EMTouch Classic Keypad Leverset

(No reviews yet) Write a Review

Model: E4002-US10B
From the Brass Collection
$534.00
$427.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$534.00
$427.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

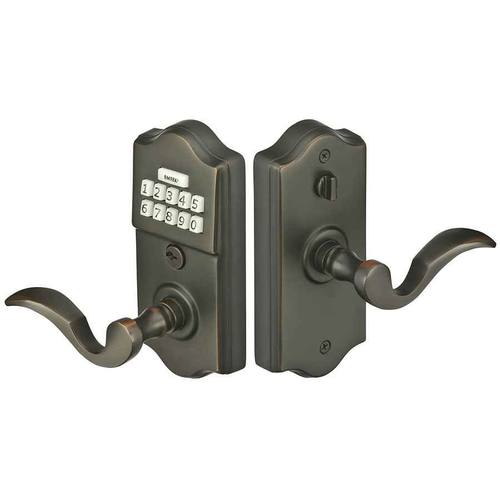

Emtek EMTouch Classic Keypad Leverset

- Programmed with 2 unique, secure user codes

- Store up to 20 user codes
- Sold as complete set. Includes Latch and Strike Plate
- Adaptors available to fit doors between 1-3/8" and 1-5/8" thick for additional charge
- For pricing information, contact any EMTEK® dealer

- Fits any door between 1-3/4" to 2-1/4" thick with a 2-1/8" bore standard door prep, when specified.
- Standard latch is for 2-3/8" backset. Specify 2-3/4" backset if required
- Handing required for Leversets





Specifications:

  • Backset: 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 2"
  • Battery: 9V
  • Material: Brass

Product Specs

Subcategory:
Keypad Leversets
Collection:
Brass
Product Type:
Leversets
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Commercial/Residential:
Residential
Electronic:
Yes
Handle Type:
Lever
Series:
EMTouch
Theme:
American Classic
Lock Type:
Tubular
Keyed:
Yes
Keyed Function:
Single Cylinder
Lock Function:
Entry
MAP Policy:
Yes
Product Function:
Entry
Product Style:
American Classic
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek E4002-US10B – Frequently Asked Questions

1) Will the Emtek EMTouch keypad leverset fit a 1-3/4 inch door?
Yes. The EMTouch Classic keypad leverset fits doors from 1-3/4" to 2-1/4" thick with a standard 2-1/8" bore prep, which covers the 1-3/4" door you find on most exterior openings. For thinner doors between 1-3/8" and 1-5/8", adaptors are available at additional charge, so state the door thickness when you order rather than assuming the standard set will work.
2) Do I need to know the handing to order an Emtek EMTouch keypad lever?
Handing is required. The EMTouch keypad leverset is ordered right hand or left hand, and there is no field-reversible option, so get the handing off the door before ordering. Stand outside the door: if the hinges are on your right and the door swings away from you, it is right hand. Handing is a required selection alongside lever style and backset.
3) What is the difference between the standard EMTouch keypad lever and the storeroom/gate version?
Two functions are offered. The standard keypad leverset is an entry function, where the lever is unlocked once a valid code is entered and can be left in an unlocked state. The storeroom/gate version keeps the outside lever locked at all times, so every entry needs a code or key and the door secures itself behind whoever went through. Storeroom/gate is the one to pick for a rear yard gate, a storage room, or any opening you do not want left unlocked.
4) Can I key an Emtek EMTouch keypad lock to match my existing Schlage or Kwikset keys?
The EMTouch keypad leverset ships with a Schlage C keyway cylinder as standard, and a Weiser WR5 keyway cylinder is available as a substitution at no change to the rest of the lock. It is a single cylinder keyed lock, so there is a key override on the outside alongside the keypad. If your building is already on Schlage C, take the standard; if the property is on Weiser/Kwikset-style keys, specify the WR5 cylinder so it can go on your existing key system.
5) Is the Emtek EMTouch keypad lever suitable for a commercial building or heavy traffic?
The EMTouch Classic is a residential-duty tubular lockset in brass, and it suits homes, condos, and light multi-family openings. For a commercial corridor, a school, or an entrance taking constant traffic, go to a Grade 1 or Grade 2 cylindrical lock instead: the Corbin Russwin CL3100 Series is a Grade 1 vandal resistant cylindrical lever, and the Hager 2525 is a Grade 2 commercial cylindrical entry lock. If you want keypad access at commercial duty, the Delaney LP250 is a Grade 2 electronic keypad leverlock.
6) Will the Emtek EMTouch keypad lever drop into the holes from my old lockset?
If the existing lock is a standard bored lockset it should. The EMTouch is a tubular lock using the standard 2-1/8" cross bore prep with either a 2-3/8" or 2-3/4" backset, which is the same prep the common residential lever and knob sets use. Check three things on the door you are replacing: bore diameter, backset, and door thickness. A mortise lock or a lock with a nonstandard bore is not a straight swap.
7) What is the closest keypad lever alternative to the Emtek EMTouch Classic keypad leverset?
The Delaney LP250 electronic keypad leverlock is the nearest peer: like the EMTouch Classic, it is an electronic keypad lever, and it is rated Grade 2. The EMTouch Classic is a brass, tubular entry leverset with an electronic keypad, keyed as a single cylinder so a mechanical key overrides the code. If you want a code-entry lever without any battery or electronics, the Lockey 1150 heavy duty mechanical keypad lever set is a mechanical pushbutton design that fits doors 1-1/8 inch to 2 inch thick.
8) Which keyless lever should I use instead of the EMTouch Classic keypad leverset on a door thinner than 1-3/8 inch?
The EMTouch Classic keypad leverset covers doors 1-3/8 inch to 2 inch thick. For a thinner door, the Lockey 2835 mechanical pushbutton keyless lever lock and the Lockey 2835DC double combination version both cover 1 3/16 inch to 2 inch, and the Lockey 1150S mechanical keypad lever set with adjustable backset covers 1-1/8 inch to 2 inch. All three are mechanical combination locks rather than battery-powered keypads.
9) I need a keyed entry lever but no keypad - what takes the place of the EMTouch Classic?
For a straight key-only entry lever in a residential trim style, Deltana offers the 6201 Manchester, 6411 Morant and 6431 Linstead entry levers, all covering 1-3/8 inch to 2 inch door thickness, the same range the EMTouch Classic keypad leverset covers, and the Deltana 5851 Claremont is an entry lever in the same family. On the commercial side the Hager 2525 is a Grade 2 cylindrical entry lever for 1-3/8 inch to 2 inch doors. These operate by key and lever only, with no code entry and no battery.
10) The EMTouch Classic is listed as residential - what is the commercial equivalent for a Grade 1 opening?
The EMTouch Classic keypad leverset is a residential entry leverset. If a project spec calls for a Grade 1 cylindrical lever, the Dexter C1000 Series entry/office lever is Grade 1 with a clutching, keyed design for doors 1-3/8 inch to 1-3/4 inch thick, and the Falcon K101 is a Grade 1 heavy duty cylindrical lock, fire rated, covering 1-3/8 inch to 2-1/4 inch, though the K101 is passage function and does not lock. Neither of these has a keypad; code entry and Grade 1 cylindrical are separate decisions here.
11) What finishes and lever styles does the Emtek EMTouch keypad leverset come in?
Three finishes: Oil Rubbed Bronze (US10B), Satin Nickel (US15), and Polished Brass Lifetime (US3). Lever style is a separate required choice from over fifty designs, running from the modern L-Square, T-Bar, and R-Bar bars in Faceted, Hammered, Knurled, Tribeca, Straight Knurled, and White Marble, through named levers like Athena, Luzern, Poseidon, Milano, and Turino, to traditional patterns like Rope, Ribbon and Reed, Rustic, Santa Fe, and Arts and Crafts. That range is what lets the keypad opening match the passage and privacy levers already on the other doors.
12) How many user codes can the Emtek EMTouch keypad hold?
Up to 20 user codes, and the lock arrives programmed with 2 unique secure codes so you can put it in service the day it is installed. Twenty codes is enough to give each tenant, cleaner, and trade a code of their own on a small multi-family or a short-term rental, and to delete one when somebody leaves instead of rekeying the cylinder.
13) I want keyless entry but no batteries. What is the alternative to the Emtek EMTouch keypad lever?
The EMTouch runs on a 9V battery, so if you want code access with nothing to replace, look at a mechanical pushbutton lever instead. The Lockey 2835 is a mechanical keyless pushbutton lever lock with passage function fitting doors 1 3/16" to 2" thick, and the Lockey 1150 is a heavy duty mechanical keypad lever set fitting 1-1/8" to 2". The tradeoff: mechanical locks hold one or two combinations rather than the 20 user codes the EMTouch stores, and there is no key cylinder override.
14) Can I put the Emtek EMTouch keypad lever on an exterior gate?
Yes, with the storeroom/gate function version. That variant keeps the outside lever locked at all times so the gate cannot be left open by whoever went through last, and it accepts a code or the key cylinder for entry. It needs the same bored prep as a door: a 2-1/8" cross bore, a 2-3/8" or 2-3/4" backset, and material thickness in the range the lock covers.
15) Is a Kwikset 200 series lever a substitute for the EMTouch Classic keypad leverset?
No. The Kwikset 200BRNL Breton and 200DL Delta are passage levers - the 200BRNL is Grade 3 passage for doors 1-3/8 inch to 1-3/4 inch - so they latch but do not lock or accept a code. The EMTouch Classic is a keyed entry leverset with an electronic keypad and a single cylinder. If you want a Kwikset-style residential lever with a locking function, the 300BRNL Breton is Grade 3 privacy for the same 1-3/8 inch to 1-3/4 inch range, which locks from the inside only.
16) Does the EMTouch Classic keypad leverset match the Baldwin Estate 5103 lever on adjacent doors?
The Baldwin Estate 5103 lever with 5048 rose comes in passage, privacy, and left- and right-hand half dummy versions, so it covers the non-locking and inactive doors in a run. The EMTouch Classic keypad leverset handles the entry opening with code and key access, is brass in an American Classic style, and requires handing when ordered. Pairing the two gives you code entry at the main door and matching-format Baldwin trim at the interior doors, though lever designs and finishes are specified separately for each brand.
17) I need a 2-3/4 inch backset keyed lever - does the EMTouch Classic cover it, and what else does?
The EMTouch Classic keypad leverset is ordered with either a 2-3/8 inch or 2-3/4 inch backset, so it covers a 2-3/4 inch prep directly when specified. Among mechanical keyed levers, the Cal-Royal AG03 classroom lever ships with a 2-3/4 inch backset and a 6-pin Schlage C keyway keyed different, while the Cal-Royal AG00 entrance lever is a Grade 2 with 2-3/8 inch backset and the same Schlage C keyway. The EMTouch Classic is supplied with a Schlage C keyway as standard, with a Weiser WR5 keyway available.
18) Can I key the EMTouch Classic into a Yale or Accentra system the way the 107S adapter does?
The Accentra 107S is a Schlage cylinder adapter kit for Yale hardware, which is what lets Yale locks take a Schlage cylinder - it is not a lever and not a substitute for the EMTouch Classic. The EMTouch Classic keypad leverset already ships with a Schlage C keyway cylinder as standard, with a Weiser WR5 keyway offered as a substitution, so it drops into a Schlage C or Weiser keying system as ordered without an adapter.
19) What is the difference between the EMTouch Classic keypad leverset and the Lockey 2835 keyless lever?
The EMTouch Classic is an electronic keypad entry leverset in brass, runs on a 9V battery, stores up to 20 user codes, and includes a keyed single cylinder so a key opens it as well. The Lockey 2835 is a mechanical pushbutton keyless lever lock with passage function and ADA compliance, covering doors 1 3/16 inch to 2 inch, and the 2835DC adds a double combination over the same thickness range. The Lockey units have no battery and no key cylinder; the EMTouch adds code storage and key override.
20) For a classroom or institutional door, is the EMTouch Classic keypad leverset the right lock?
The EMTouch Classic is a residential entry leverset with an electronic keypad. Institutional openings that call for a specific ANSI function are better served by a lock catalogued to that function: the Dexter C1000 Series classroom lever is Grade 1 clutching and keyed for 1-3/8 inch to 1-3/4 inch doors, the C1000 classroom security version covers the same range, and the C1000 asylum (F87) version is Grade 1 for 1-3/8 inch to 2 inch doors. The Corbin Russwin CL3110 is a Grade 1 vandal resistant, fire rated passage lever for 1-3/4 inch to 2 inch doors.
21) I want an access-controlled lever wired to a card system rather than a keypad - what replaces the EMTouch Classic?
The EMTouch Classic is a standalone battery-powered keypad leverset; codes are entered at the lever and there is no wiring. For a lever tied into an access control system, the Corbin Russwin CL33903 is a Grade 1 fail safe electrified cylindrical lever at 12VAC/DC for doors 1-3/4 inch to 2 inch thick, available with the NZ lever and D rose and in a keyed 12VAC/DC configuration. That one needs power run to the opening and an electric hinge or door loop; the EMTouch Classic does not.
22) Which lever pairs with the EMTouch Classic keypad leverset on the interior doors of the same unit?
The EMTouch Classic keypad leverset covers the entry door with code and key access. For the non-locking doors in the same unit, the Bravura Atlanta, Orlando and Tampa passage leversets are all Grade 2 - Atlanta and Orlando with round trim, Tampa with square trim - and the Bravura Miramar with round trim is a Grade 2 passage leverset in US4 satin brass. The Callan Asheville is a Grade 3 passage leverset in satin nickel, which reads with the EMTouch satin nickel US15 finish.
23) Is a keypad entry lever with a separate deadbolt combo different from the EMTouch Classic?
Yes. The EMTouch Classic keypad leverset is a single tubular entry lever with the keypad built into the lever trim, sold as a complete set with latch and strike plate. The Callan Bennett is a Grade 3 entrance leverset with a deadbolt combo, meaning a second bore in the door for the deadbolt and two points of latching. The EMTouch Classic needs only the standard 2-1/8 inch cross bore prep.
24) Can I use a dummy lever to match the EMTouch Classic on a fixed or inactive door?
The EMTouch Classic keypad leverset is an active entry lever and is not made as a dummy. For the inactive leaf, dummy trim options include the BEST 9K Series 1DT single dummy, a Grade 1 heavy duty non-keyed trim, the BEST 7KC Series 1DT single dummy at Grade 2 medium duty, the Accentra 455LN Augusta Grade 1 single dummy, and the Callan Bentley Grade 2 dummy lever. These mount fixed trim with no latch, so no bore prep for a latch is needed on that leaf.
