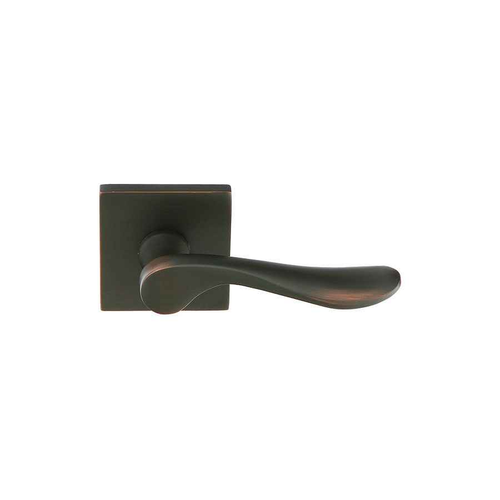

Emtek Modern Classic Brass Leverset - Luzern Lever, Passage Set

Yes. The Luzern passage set drops into a standard 2-1/8 inch cross bore and covers doors from 1-3/8 inches up to 2-1/4 inches thick, so a typical 1-3/4 inch interior door needs no extra prep. One caveat on rosette choice: the STRETTO rosette is the exception and calls for a 1-1/4 inch diameter bore with a 2-hole prep. Every other brass rosette works off the standard prep.

The backset is a required selection, and the Luzern ships with the 2-3/8 inch latch as standard. If you measure from the door edge to the center of the bore and get 2-3/4 inches, say so on the order, that is the other option. Measure one existing door before you order a run of them, since older stock doors and newer commercial-prep doors do not always match.

Passage function means no lock at all. The Luzern lever is non-keyed with no push button or thumbturn, so it latches the door closed and both levers always retract the latch. That is what you want on a hall, a closet, a pantry, or a laundry door. For a bedroom or bathroom you need a privacy set with a thumbturn instead, and for anything that has to lock with a key you need an entry or keyed function.

Handing matters here. The Luzern is ordered left hand or right hand, so you pick the hand at the order form rather than reversing the lever in the field. Stand outside the door, on the side you push from: if the hinges are on your left it is left hand, hinges on the right is right hand. Get it wrong and the lever points up instead of down.

For a fire-rated opening, specify a lever that carries the rating. The Falcon K101 is a Grade 1 fire-rated heavy duty passage lock for 1-3/8 inch to 2-1/4 inch doors with non-handed levers, and the Corbin Russwin CL3110 is a Grade 1 fire-rated passage/closet lever for 1-3/4 inch to 2 inch doors. If the door is a residential hall or closet leaf, the Kwikset 200DL-RCALFD Delta passage lever uses a round corner adjustable 20 minute UL latch with a round corner strike. The Luzern remains the choice where the opening is a plain interior passage door and the brass rosette look is the driver.

The Baldwin Estate 5103 passage lever with 5048 rose is the nearest decorative-line equivalent to the Luzern passage set, also a passage/hall/closet lever. If a graded decorative lever is preferred, the Bravura Miramar with round trim is a Grade 2 passage leverset offered in US4 satin brass, a finish the Luzern also offers as Satin Brass (US4). Bravura also builds the Atlanta and Orlando with round trim and the Tampa with square trim, all Grade 2 passage leversets, which lets you match a round or square rosette shape the way the Luzern's Disk, Modern, Square and Urban Modern rosettes do.

Passage is the Luzern's function, so it latches without locking. For a bed or bath door, the Baldwin Estate 5103 privacy lever with the 5048 rose is the matching decorative privacy version of the 5103 family. On the graded side, the Hager 2540 is a Grade 2 privacy cylindrical lock with the Withnell lever for 1-3/8 inch to 2 inch doors, and the Kwikset 300BRNL RDT Breton is a Grade 3 privacy lever set for 1-3/8 inch to 1-3/4 inch doors. Arrow's MK02-TA is a privacy cylindrical lock with a Tudor knob rather than a lever if a knob suits the room.

The Luzern passage set is non-keyed by design, so a keyed opening needs a different chassis. The Deltana 5851 Claremont, 6201 Manchester, 6411 Morant and 6431 Linstead are entry-function levers, with the Manchester, Morant and Linstead all covering 1-3/8 inch to 2 inch doors. For a graded entry lever, the Hager 2525 is a Grade 2 commercial cylindrical entry lock for 1-3/8 inch to 2 inch doors, and the Dexter C1000 entry/office is Grade 1 with clutching levers for 1-3/8 inch to 1-3/4 inch doors. The Cal-Royal AG00 entrance lever ships in a 6-pin Schlage C keyway keyed different with a 2-3/8 inch backset, which matches the standard backset the Luzern latch is set for.

The Luzern is a residential passage leverset. Corridor and institutional traffic is usually specified on a graded commercial chassis: the Design Hardware X75 passage lever lockset is Grade 1 for 1-3/4 inch doors, the Falcon T101 is a Grade 1 heavy-duty passage lever with pressure release technology, and the Accentra 5301LN Augusta is a Grade 2 passage lever in the 5300 Series. The Hager 2510 is a Grade 2 passage lever with the Withnell design covering 1-3/8 inch to 2 inch doors. All four keep the passage/hall/closet function the Luzern provides.

No. The Luzern passage set is a working latch, sold complete with latch and strike plate, so the lever retracts a bolt. A dummy lever is fixed trim with no latch at all, used on inactive or closet doors that pull shut. If that is what the opening needs, the Baldwin Estate 5103 half dummy comes handed left or right, the BEST 9K Series 1DT is a Grade 1 heavy duty non-keyed single dummy trim, the BEST 7KC Series 1DT is a Grade 2 medium duty single dummy, and the Callan Bentley is a Grade 2 dummy lever. Ordering a dummy where a passage latch is required leaves the door with nothing to hold it closed.

The Luzern passage set is specified for 1-3/8 inch to 1-3/4 inch doors. For a thicker leaf, the Falcon K101 Grade 1 passage lock covers 1-3/8 inch to 2-1/4 inch, the Hager 2510 Grade 2 passage lever covers 1-3/8 inch to 2 inch, and the Arrow GL01 Grade 2 Sierra lever passage lock is built for 1-3/4 inch to 2 inch. The Corbin Russwin CL3110 Grade 1 passage lever also covers 1-3/4 inch to 2 inch.

It is a complete set: the levers, the rosettes, the latch, and the strike plate all ship together. Nothing else to buy to hang it on a prepped door. The latch faceplate is available round corner or square corner, so match whichever your existing door mortise already is and you will not be chiseling.

CF stands for concealed fastener: the rosettes mount with no visible screws on the face. Choose it where the hardware is on display and you do not want screw heads reading on a brass rose. Selecting the CF mechanism also brings the 28 degree rotation latch (Latch28), which is a shorter lever throw to retract the latch. If you would rather keep the standard exposed screw mount, the No Thanks option is there.

Eight finishes: Flat Black (US19), French Antique (US7), Oil Rubbed Bronze (US10B), Polished Chrome (US26), Polished Nickel Lifetime (US14), Satin Brass (US4), Satin Nickel (US15), and Unlacquered Brass (US3NL). Six rosette shapes pair with the lever: Disk, Modern, Modern Rectangular, Neos, Square, and Urban Modern. If you are matching existing Emtek openings, match the rosette shape first, it changes the look more than the finish does. Unlacquered brass will patina over time by design, so do not mix it with lacquered brass on adjacent doors and expect them to stay the same.

Yes, up to 2-1/4 inches. That covers most solid core and thicker custom slabs without an extension kit. There is a Door Thickness field on the order, so state the actual measured thickness of your slab when it is over the common 1-3/4 inches. If your door is thinner than 1-3/8 inches, this is not the right set.

The Luzern passage leverset is ordered as left hand or right hand. For a property manager stocking one part across a building, the Falcon B101 is a Grade 2 medium duty passage lever with a non-handed design, and the Falcon K101 is the Grade 1 heavy duty version, also non-handed. The Kwikset 200DL Delta passage lever is reversible and ships with an adjustable 6AL latch and RCS strike. Any of the three removes the handing decision from the order.

The Luzern is a brass leverset ordered across finish, rosette, handing and backset. Where the job just needs a working hall or closet lever, the Kwikset 200BRNL RDT Breton is a Grade 3 passage lever set for 1-3/8 inch to 1-3/4 inch doors, the Kwikset 200DL Delta passage lever is reversible with an adjustable 6AL latch and RCS strike, and the Callan Asheville is a Grade 3 passage leverset in satin nickel. The Luzern also offers Satin Nickel (US15) if the rest of the unit is already on that finish.

The Luzern is a non-electronic, non-keyed mechanical leverset, so code entry means a different lock body. The Lockey 1150 is a heavy duty mechanical keypad lever set with double combination in passage function for 1-1/8 inch to 2 inch doors, and the 1150S adds an adjustable backset. The Lockey 2835 is a mechanical pushbutton keyless lever lock with passage function and ADA compliance for 1-3/16 inch to 2 inch doors, with the 2835DC as the double combination version. If the opening calls for an electronic keypad instead of mechanical, the Delaney LP250 is a Grade 2 electronic keypad leverlock.

The Luzern covers the passage doors only. For the locked openings on the same job, the Cal-Royal AG05 is a Grade 2 storeroom lever lockset with a deadlocking latchbolt for 1-3/8 inch to 1-3/4 inch doors, and the Hager 2580 is a Grade 2 storeroom lock with the Withnell lever for 1-3/8 inch to 2 inch doors. For classrooms, the Cal-Royal AG03 classroom lever is a Grade 2 in a 6-pin Schlage C keyway keyed different with a 2-3/4 inch backset, and the Dexter C1000 classroom is a Grade 1 clutching keyed lever for 1-3/8 inch to 1-3/4 inch doors, with a classroom security version in the same series.

Both are passage/hall/closet levers, but they come from different families. The Accentra 4601LN is a Grade 2 passage cylindrical lever lock in the 4600 Series with Augusta trim, while the 5301LN is the Grade 2 Augusta passage lever in the 5300 Series. The Luzern is a residential brass leverset offered in eight finishes including Oil Rubbed Bronze (US10B), Unlacquered Brass (US3NL) and Flat Black (US19), with a choice of six brass rosettes. Take the Accentra when the spec calls for a graded commercial lever, the Luzern when the finish and rosette are what the door is being selected on.

Yes, split finish is an option on the Luzern. You state the two finishes on the order, which is how you handle a door where the hall side has to match one scheme and the room side another, say a black corridor and a satin brass interior. If you do not need it, leave the field blank and both sides ship in the single finish you picked.

The Luzern lever pairs with any of Emtek's brass rosettes, so the lever and the rose are separate design decisions. Disk, Modern, Modern Rectangular, Neos, Square, and Urban Modern are the shapes. Square and Modern Rectangular read contemporary against a flat panel door, Disk is the quieter round option. The one rosette that changes your door prep is STRETTO, which needs a 1-1/4 inch bore and a two hole prep on the privacy thumbturn version.

The Luzern passage leverset is a tubular lock in the cylindrical lock family, fitting a 2-1/8 inch cross bore with a 2-3/8 inch or 2-3/4 inch backset. Cylindrical peers in the same passage function include the Design Hardware J75 Grade 2 flat lever passage lockset for 1-3/4 inch doors, the X75 Grade 1 version, and the Falcon B101 Grade 2 passage lever. The Codelocks CL410 and CL415 tubular latchbolt is a latch component in the CL400 Series rather than a complete lever set, so it is not an alternative to the Luzern, which ships with its latch and strike plate.
