Emtek Modern Crystal Knobset -...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$235.00
$196.22
Emtek Emtek Modern Crystal Knobset - Windsor Knob, Passage Set EMTEK-KNOBSETS-WINDSOR-KNOB-PASSAGE

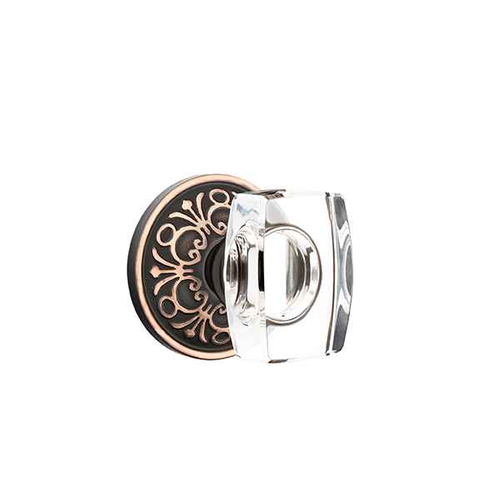

Emtek Modern Crystal Knobset - Windsor Knob, Passage Set

(No reviews yet) Write a Review

Model: 5107.WS.US19
From the Glass & Porcelain Collection
$235.00
$196.22
Selected Latch is
Selected Rosette is
Selected Finish is
Selected Backset is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$235.00
$196.22
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek Modern Crystal Knobset - Windsor Knob, Passage Set

  • Can be ordered with any Brass rosette
  • Sold as complete set. Includes Latch and Strike Plate
  • 28 Degree Latch (included when CF Mechanism is selected)
  • Fits any door between 1-3/8” to 2-1/4" thick with a 2-1/8" bore standard door prep*
  • Standard latch is for 2-3/8" backset. Specify 2-3/4" backset if required

* STRETTO rosette requires a 1-1/4” diameter bore hole and 2-hole door preparation for thumbturn privacy




Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass

Product Specs

Subcategory:
Knobsets
Collection:
Glass & Porcelain
Product Type:
Knobsets
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Commercial/Residential:
Residential
Handle Type:
Knob
Lock Type:
Tubular
Series:
Windsor
Theme:
Contemporary
Electronic:
No
Keyed Function:
Non-Keyed
Keyed:
No
Lock Function:
Passage
MAP Policy:
Yes
Product Function:
Passage
Product Style:
Glass
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 5107.WS.US19 – Frequently Asked Questions

1) Will the Emtek Windsor crystal knob fit a standard pre-drilled door, or does it need special prep?
Standard bored prep works. The Windsor knob passage set goes into the usual 2-1/8 inch cross bore, and the latch is supplied for a 2-3/8 inch backset unless you specify 2-3/4 inch on the order. One exception worth knowing: the STRETTO rosette is the odd one out, it needs a 1-1/4 inch diameter bore and a 2-hole prep.
2) Is the Emtek Windsor knob passage set lockable?
No. Passage function means it latches the door and turns freely from both sides with no lock and no key. Use it on hall, closet, and pantry doors. For a bedroom or bathroom you want the privacy version with a thumbturn instead.
3) Which backset do I order for the Emtek Windsor knob, 2-3/8 or 2-3/4?
Measure from the edge of the door to the center of the bore hole. Most residential doors land at 2-3/8 inches, which is the standard latch here. If your hole centers at 2-3/4 inches, pick that option at the time of order, since backset is a required selection on the Windsor knob set.
4) Does the Emtek Windsor knob come with the latch and strike, or do I buy those separately?
It ships complete. The Windsor crystal knob passage set includes the latch and strike plate, so there is nothing else to order to hang it on a prepped door. Latch faceplate is available round corner or square corner to match the mortise already cut in your door edge.
5) Is the Emtek Windsor crystal knob suitable for a commercial corridor or an office building?
It is a residential tubular set, glass and porcelain collection, brass hardware. Fine for apartments, model units, hotel guest rooms and anywhere the look matters. For a commercial opening that needs a graded cylindrical lock, look at something like the Schlage D10S Grade 1 passage knob or the Corbin Russwin CK4310 Grade 1 passage lock instead.
6) What is a comparable passage knob to the Emtek Windsor crystal knob if the door needs a commercial rated lockset?
The Emtek Windsor knobset is a residential passage set with a brass, non-keyed tubular mechanism. If the opening calls for a graded commercial passage knob, the Schlage D10S is a Grade 1 heavy duty cylindrical passage latch with an Orbit knob, and the Corbin Russwin CK4310 is a Grade 1 passage/closet cylindrical lock with a Global knob covering 1-3/8 inch to 2 inch doors. Both are metal knobs rather than crystal, so the decorative look changes.
7) I need the same Windsor crystal knob look but for a bedroom or bathroom door. What do I use instead?
The Emtek Windsor knobset is a passage set, so it has no locking mechanism at all. For a bed or bath door you need a privacy function knob: the Baldwin Estate 5000 Baltimore knob with 5148 rose is a privacy lock with a 2-3/8 inch backset and full lip strike, and the Deltana 6112 St. Thomas knob is a privacy knob for doors 1-3/8 inch to 2 inch thick. Both are solid knobs rather than crystal.
8) The door is thicker than 1-3/4 inches. What passage knob works where the Emtek Windsor does not?
The Emtek Windsor specifications state a door thickness of 1-3/8 inch to 1-3/4 inch. For thicker doors, the Falcon X101 Grade 1 heavy duty cylindrical passage knobset covers 1-3/8 inch to 2-1/4 inch, and the Corbin Russwin CK4310 Grade 1 passage/closet lock covers 1-3/8 inch to 2 inch. The Deltana 6171 Round Knob entry set also covers 1-3/8 inch to 2 inch if the door needs a keyed function.
9) Does the Emtek Windsor passage knob work on a fire rated opening, and what would I use if not?
The Emtek Windsor knobset is a residential passage set and no fire rating is carried for it. On a fire rated opening, specify a lockset listed for it: the Falcon W101 is a Grade 2 medium duty cylindrical knob lock with passage/closet latch function, a 2-3/4 inch backset, and a fire rating, and the Falcon X101 is the Grade 1 heavy duty passage equivalent, also fire rated, for doors 1-3/8 inch to 2-1/4 inch.
10) What is the difference between the standard latch, the 28 degree latch, and the CF mechanism on Emtek knobsets?
Three choices on the Windsor knob set. Standard latch is the conventional rotation. The 28 Degree Rotation Latch shortens how far you have to turn the knob to retract the bolt, which is easier on the wrist and on a crystal knob. The CF mechanism gives you rosettes with no exposed screws for a clean face, and it ships with the 28 degree latch included.
11) What else could I use instead of the Emtek Windsor knob if I want a decorative brass passage knob?
Two close alternatives in solid brass: the Omnia 434/PA egg-shaped knob latchset and the Baldwin Estate 5011 Colonial passage knob with 5058 rose. Both are passage function like the Windsor. The difference is the knob itself, the Windsor is crystal in the Glass and Porcelain collection while those two are solid brass knobs. Baldwin also offers the preconfigured Estate 5000 Baltimore passage set with a 2-3/8 inch backset and full lip strike if you want it in one part number.
12) What is the difference between the Emtek Windsor passage knobset and the Baldwin Estate 5000 Baltimore passage lock?
Both are decorative passage knobs. The Baldwin Estate 5000 Baltimore is preconfigured as a 2 inch knob with a 5048 rose, a 2-3/8 inch backset and a full lip strike. The Emtek Windsor is a brass crystal knob built to order: the backset is selected as 2-3/8 inch or 2-3/4 inch, the rosette is selected from Disk, Modern, Modern Rectangular, Neos, Square or Urban Modern, and the finish from Flat Black, Oil Rubbed Bronze, Polished Chrome, Polished Nickel, Satin Brass, Satin Nickel or Unlacquered Brass.
13) Is a Kwikset 200P Polo passage knob a direct substitute for the Emtek Windsor passage set?
They serve the same door function but are different products. The Kwikset 200P Polo is a passage knob for interior hall and closet doors supplied with a 6AL latch and RCS round corner strike. The Emtek Windsor passage set is a brass crystal knob ordered with a choice of rosette, including Disk, Modern, Modern Rectangular, Neos, Square and Urban Modern, and a choice of standard latch, 28 degree rotation latch, or CF mechanism with no exposed rosette screws. If the decorative rosette and finish selection matter, the Kwikset is not an equivalent.
14) What should I order instead of the Emtek Windsor passage knob for a closet or a non-latching door?
The Emtek Windsor passage set includes a latch and strike plate and is meant to operate a latching door. For a surface that does not latch, such as a false or inactive leaf, use a dummy knob instead: the Omnia 458/0 is a traditional single dummy knob latchset, the Schlage A170 is a Grade 2 single dummy trim for doors 1-3/8 inch to 1-7/8 inch, and the Cal-Royal BA40 is a dummy knob for 1-3/8 inch to 1-3/4 inch doors.
15) For a multi-family turn where I am replacing Emtek Windsor passage knobs across many units, what is a simpler passage knob with the same backset flexibility?
The Emtek Windsor passage set is ordered with either a 2-3/8 inch or 2-3/4 inch backset. Simpler passage knobs covering the same interior doors include the Pamex FTF Baron Grade 3 passage knob lockset for 1-3/8 inch to 1-3/4 inch doors, the Bravura Albany passage knobset with round trim in Grade 2, and the Dexter C2000 Grade 2 passage ball knob for 1-3/8 inch to 1-3/4 inch doors. The Kwikset 200P-CP Polo passage knob ships with a round corner adjustable latch and round corner strike.
16) Is a Sargent 78-2875 outside knob or an Imperial ED-BKL580 knob trim an alternative to the Emtek Windsor passage set?
No. The Sargent 78-2875 is an outside knob only with B design from the 7800 Series, and the Imperial ED-BKL580 is knob trim with a storeroom function from the ED-500 Series. Both are trim for exit device hardware, not standalone bored locksets. The Emtek Windsor is a complete passage set including latch and strike plate for a 2-1/8 inch bore door prep.
17) I need a knob that locks from the outside with a key but stays latched, not a passage knob like the Emtek Windsor. What do I order?
The Emtek Windsor is a non-keyed passage set with no locking at all. For a storeroom function knob, the Sargent 8XG04 is a Grade 1 heavy duty storeroom/closet single cylinder knob lock with a 2-3/4 inch backset, and the Sargent 6G04 is the Grade 2 standard duty storeroom/closet equivalent with a single cylinder. For a classroom function, the Dexter C2000 Grade 2 classroom ball knob covers 1-3/8 inch to 1-3/4 inch doors.
18) Is the Emtek Windsor knob a dummy knob or does it actually work the latch?
It is a working passage set with a functioning latch, not a dummy. If you need a non-functioning knob for a closet door or the inactive leaf of a pair, that is a separate dummy trim, such as the Omnia 442/00 single dummy knob latchset or the Bravura Biloxi dummy knobset.
19) Can I buy Emtek Windsor passage knobs in a multi-pack for a whole-house or whole-floor job?
The Emtek Windsor passage set is ordered as a complete single set with latch and strike plate, configured per door for backset, finish, rosette and latch type. If you want knobs packaged together for a run of doors, the Sure-Loc Bergen round knob is sold as a 6-pack with an adjustable backset, and the Schlage Residential F500 Plymouth with Georgian knob is a combo pack with adjustable backsets and dual strikes for 1-3/8 inch to 1-3/4 inch doors.
