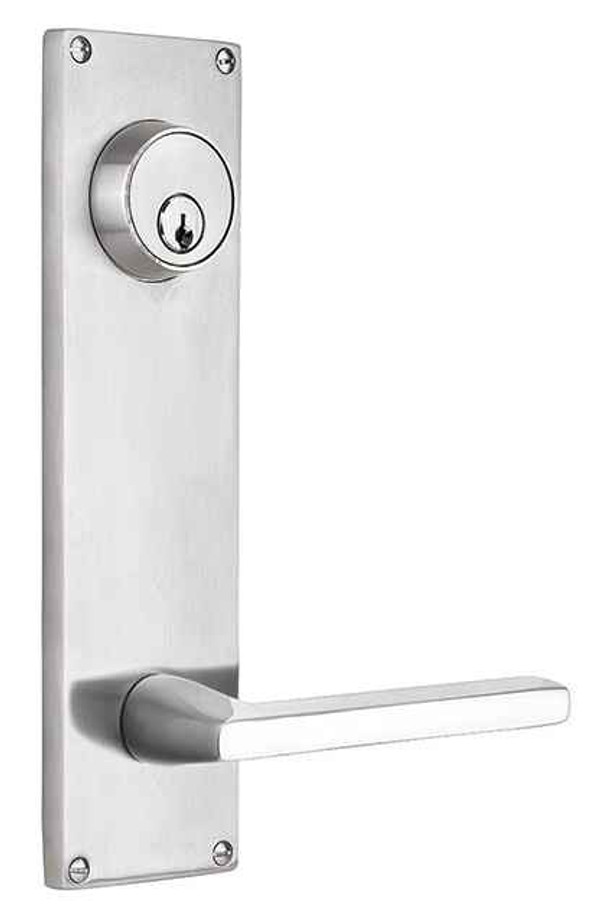

Emtek S811 Stainless Steel 5-1/2" CTC Keyed Sideplate Tubular Lockset, Passage/Single Keyed
- Can be ordered with any Stainless Steel Knob or Lever Style
- Sold as complete set. Includes Knob or Lever, Latch and Strike Plate
- One Standard 2-1/8" Door Prep
- Standard latch is for 2-3/8" backset. Specify 2-3/4" backset if required
- Handing required for Leverset
Specifications:
- Backset: Adjustable 2-3/8" or 2-3/4"
- Cross Bore: 2-1/8"
- Door Thickness: 1-3/8" to 1-3/4"
- Latch Faceplate: Round or Square Corner
- Material: Brass
Manufacturer Resources
Product Specs
- Subcategory:
- Keyed Sideplate Locksets
- Collection:
- Stainless Steel
- Product Type:
- Sideplate Lockset
- Product Group:
- Mechanical Locks
- Product Subgroup:
- Bored Locksets
- Commercial/Residential:
- Residential
- Keyed Function:
- Single Cylinder
- Lock Type:
- Tubular
- Keyed:
- Yes
- Lock Function:
- Entry
- Series:
- Stainless Steel
- Theme:
- Contemporary
- Electronic:
- No
- MAP Policy:
- Yes
- Product Model:
- S811
- (CTC) Center-to-Center:
- 5-1/2"
- Product Function:
- Entry
- Product Style:
- Stainless Steel
- Product Material:
- Stainless Steel
- Product Category:
- Mechanical Locks
- Product Substrate:
- Stainless Steel
- Department:
- Door Hardware
Emtek S811-SS – Frequently Asked Questions
1) Will the Emtek S811 sideplate lockset fit a standard 2-1/8 inch bored door prep?
Yes. The S811 uses one standard 2-1/8 inch cross bore, so it drops into a door already prepped for a normal tubular lockset. The latch is adjustable for either a 2-3/8 or 2-3/4 inch backset, and it works on doors 1-3/8 to 1-3/4 inches thick. Where the extra prep comes in is the sideplate itself: the plate spans 5-1/2 inches center to center, so the door face has to be clear above and below the bore for the plate and its fasteners.
2) Do I have to specify handing when ordering an Emtek S811 lockset?
Handing is required, and you pick right hand or left hand at order time. It matters because the S811 is offered with levers, and a lever has to point toward the latch side. If you order a knob instead (Octagon or Round), handing is not a functional issue for the knob itself, but the order still asks for it. Stand outside the door: if the hinges are on your right, it is a right hand door.
3) Can I get several Emtek S811 locksets keyed alike?
Yes, keying is selected on the order: keyed different or keyed alike, at no charge. Keyed alike puts the same key in every S811 on the order, which is what you want when a single entry key should open the front, back, and side doors of the same house. There is also a keying-to-code field if the property already runs a key code and the new lock has to match the existing keys.
4) Which backset do I order for the Emtek S811, 2-3/8 or 2-3/4 inch?
Measure from the door edge to the center of the bore. 2-3/8 inches is the common residential backset and is what ships as standard on the S811; 2-3/4 inches is the other standard and has to be specified on the order. Both are offered, so an existing bore does not force a new door prep either way.
5) What is the difference between the Emtek S811 keyed sideplate lockset and the Omnia D12036A?
Both are 5-1/2 inch center-to-center sideplate lever sets, so they cover the same two-bore door prep footprint. The Emtek S811 is a tubular entry lockset with a single cylinder keyed function, built in stainless steel. The Omnia D12036A is a single cylinder deadbolt lever lockset in solid brass construction. The choice comes down to material and whether you want the Emtek stainless steel family, which the S811 shares with any Emtek stainless steel knob or lever style.
6) I need a sideplate lever set that locks from both sides with a key. What do I order instead of the Emtek S811?
The S811 is a single cylinder entry lockset, so it is keyed on the exterior only. For a double keyed opening, the Omnia D12036AC is a double cylinder deadbolt lever lockset in solid brass with a sideplate design. Double cylinder is common on doors with adjacent glass, where a thumbturn on the interior can be reached; confirm your local egress code allows a double cylinder before specifying it.
7) What matches the look of a keyed sideplate lever on a door that does not need to latch, like a closet or a French door slave panel?
For an opening with no latching or locking function, the Omnia D12036PD is a solid brass dummy deadbolt lever lockset with plates at 5-1/2 inch center to center, the same center to center spacing as the Emtek S811. A dummy set is surface mounted trim only, so the door needs no cross bore or latch mortise, unlike the S811 which uses a 2-1/8 inch cross bore and a 2-3/8 inch or 2-3/4 inch backset latch.
8) What comes in the box with the Emtek S811 keyed sideplate lockset?
It ships as a complete set: the interior knob or lever, the exterior sideplate trim, the latch, and the strike plate. You choose the latch faceplate as round corner or square corner to match the existing mortise in the door edge. Nothing else is needed to hang it on a prepped door beyond the fasteners in the set.
9) Is the Emtek S811 rated for a commercial opening or is it a residential lock?
Residential. The S811 is a tubular lockset in Emtek's Stainless Steel collection, built for houses and light-duty interior and entry doors, not for the cycle counts on a commercial or institutional opening. For an apartment turn or a single-family entry it is the right class of hardware; for a school, clinic, or office corridor door, specify a commercial-grade bored or mortise lock instead.
10) What is the difference between a sideplate lockset and a regular rosette lockset?
A sideplate lockset mounts the knob or lever on a long backplate rather than a small round rose. On the S811 that plate carries the key cylinder and the lever on one 5-1/2 inch center-to-center plate, so you get one continuous piece of trim on the door face instead of a separate lock and deadbolt. It reads as a single unit visually, and it covers up old prep scars a rose will not. The trade-off is that the door face needs clearance for the full plate, where a rosette set only needs the bore.
11) Can I add a deadbolt to the Emtek S811 and have it operate with the lever?
Yes, by adding the Emtek 443 Interconnect Device, which is offered as an option with the set. An interconnect ties the deadbolt to the lever so one motion on the inside retracts both, which is what a lot of rental and multi-family openings want for egress. Without it, the S811 works as a standalone keyed entry set.
12) I want the sideplate look but only need a dummy or pull side, what do I order?
The S811 is a keyed entry set, so it is not the part for a non-latching door. For the same 5-1/2 inch center-to-center sideplate appearance without any lock function, the Omnia D12036PD is a double dummy lever lockset with plates at that same 5-1/2 inch center to center. Use it on the inactive leaf of a pair or on a door that only needs a pull.
13) Is the Omnia D12036PD a substitute for the Emtek S811 on an entry door?
No. The D12036PD is a double dummy set, meaning both levers are fixed trim with no latch and no key. The Emtek S811 is a keyed entry lockset with a single cylinder, and it ships as a complete set with the lever or knob, latch and strike plate. If the door needs to latch or lock, the D12036PD will not do it; it is intended for openings that are held by other means. For a keyed opening, stay with the S811 or the single cylinder Omnia D12036A.
14) We are standardizing sideplate levers across a building. Can Emtek S811 and Omnia D12036 sideplate sets share the same door prep?
All four sets are built to a 5-1/2 inch center to center sideplate layout: the Emtek S811, the Omnia D12036A single cylinder, the Omnia D12036AC double cylinder, and the Omnia D12036PD double dummy. That shared center to center spacing is what lets you mix functions down a corridor on a consistent bore layout. Note the S811 is a residential-rated tubular set with an adjustable 2-3/8 inch or 2-3/4 inch backset and a 1-3/8 inch to 1-3/4 inch door thickness range, so confirm your door thickness and backset before committing the whole run.
15) Which of these sideplate lever sets can be keyed alike to the rest of my building?
The Emtek S811 is a keyed single cylinder set and can be ordered keyed different or keyed alike, including keying to an existing code. Of the comparable sideplate sets, the Omnia D12036A is single cylinder and the D12036AC is double cylinder, so both accept a key; the D12036PD is a double dummy and takes no cylinder at all, so it cannot be brought into a keying group.
16) Which lever and knob styles can I order on the Emtek S811 stainless steel sideplate lockset?
Eleven interior styles, all in the stainless line: Athena, Cologne, Dresden, Helios, Hercules, Hermes, Kiel, Poseidon, and Stuttgart levers, plus the Octagon and Round knobs. Any stainless knob or lever style can be ordered on the set. The finish is Brushed Stainless Steel.
17) Is the Emtek S811 solid stainless steel or plated?
The material listing on the S811 is inconsistent between the two spec sources we hold, so take the finish as the reliable fact: it is supplied in Brushed Stainless Steel as part of Emtek's Stainless Steel collection, with a contemporary profile across all eleven trim styles.
