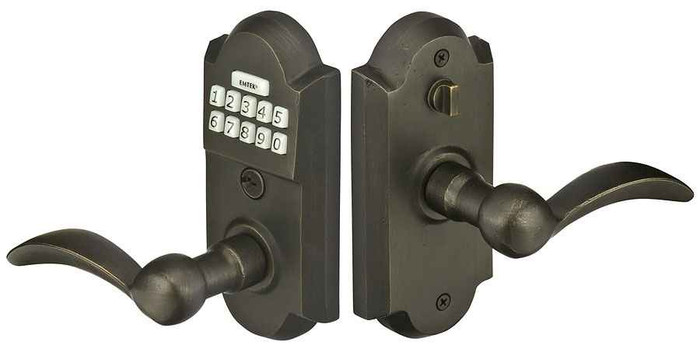

Emtek Sandcast Bronze Keypad Leverset

Four things get picked at order time. Lever style, from ten Sandcast Bronze options: Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma. Handing, right or left, which is required because these levers are handed. Backset, either 2-3/8 or 2-3/4 inches. And door thickness. Finish is Flat Black Bronze or Medium Bronze, and you choose between the plain keypad function and the keypad with storeroom/gate function.

The standard latch is 2-3/8 inch backset. If the existing bore on your door measures 2-3/4 inches from the door edge to the center of the hole, you have to call out the 2-3/4 backset when you order, because it is not what ships by default. Those two are the only backsets used on residential bored prep, so measure once and pick.

The keypad leverset comes with a Schlage C keyway cylinder as standard, so it drops into an existing Schlage C keyed system and a locksmith can key it into that bitting. If your property runs Weiser, order the Weiser WR5 keyway substitution instead. Those are the two keyways offered, and both are available with either function and either bronze finish.

No, not if the door already has standard bored prep. It installs into a 2-1/8 inch bore, the normal cross bore on a residential door, so a lever or knob coming out usually leaves the right hole behind. What you do need to confirm is the backset, 2-3/8 or 2-3/4 inches, and the door thickness, since this lock only covers 1-3/4 to 2-1/4 inches.

The Emtek Sandcast Bronze Keypad Leverset is a residential tubular lever lock. For a Grade 1 cylindrical lever on a commercial opening, the Dexter C1000 Entry/Office is Grade 1 for 1-3/8 inch to 1-3/4 inch doors, the Falcon K101 is a Grade 1 heavy duty passage lock rated for 1-3/8 inch to 2-1/4 inch doors and fire rated, and the Corbin Russwin CL3110 is a Grade 1 vandal resistant passage lever, fire rated, for 1-3/4 inch to 2 inch doors. Choose by the function the opening needs.

The Emtek Sandcast Bronze Keypad Leverset fits doors 1-3/4 inch to 2-1/4 inch thick with a 2-1/8 inch bore prep, so a thinner door needs a different keypad lever. The Lockey 1150 heavy duty mechanical keypad lever set covers 1-1/8 inch to 2 inch doors, and the Lockey 2835 mechanical pushbutton keyless lever lock covers 1-3/16 inch to 2 inch doors. Both are keypad lever sets that reach down into the thinner range where the Emtek prep starts above it.

Yes. The Emtek Sandcast Bronze Keypad Leverset is electronic and stores up to 20 user codes. If you want mechanical code entry with no electronics, the Lockey 2835DC is a double combination mechanical keyless lever lock with passage function, and the Lockey 1150 is a mechanical keypad lever set with double combination, also passage function. Both trade the stored multi-user code list for a mechanical combination.

The Emtek Sandcast Bronze Keypad Leverset is offered in a keypad leverset with storeroom/gate function. For a conventional key-only storeroom lever, the Cal-Royal AG05 is a Grade 2 storeroom lever lockset with a deadlocking latchbolt for 1-3/8 inch to 1-3/4 inch doors, and the Hager 2580 is a Grade 2 storeroom cylindrical lock with the Withnell lever for 1-3/8 inch to 2 inch doors. Both give storeroom operation with a cylinder only, no code entry.

The Emtek Sandcast Bronze Keypad Leverset is a standalone electronic lever that holds its user codes at the door. If the opening has to be released from an access control panel instead, the Corbin Russwin CL33903 is a Grade 1 fail safe electrified cylindrical lever lock running on 12VAC/DC for 1-3/4 inch to 2 inch doors. It is wired to a power supply rather than programmed with codes at the lever.

Both are electronic keypad leversets in Sandcast Bronze. The storeroom/gate version keeps the outside lever locked at all times, so it takes a valid code or the key every time someone enters, and the inside lever always retracts the latch to leave. That is the one for a gate, a shop, a pool enclosure or a rental where you never want the outside lever left free. The plain keypad function is the everyday entry choice. Both are offered in Flat Black Bronze and Medium Bronze.

It ships programmed with two unique user codes and stores up to 20. For a landlord, that means a code per tenant plus cleaning and maintenance without rekeying, and codes can be swapped between turnovers rather than pulling cylinders.

Sold as a complete set, latch and strike plate included. You are not sourcing a separate latch or strike, but do settle the backset before ordering because the latch supplied matches the backset you specify.

The closest alternative is the Delaney LP250 electronic keypad leverlock, a Grade 2 keypad lever. The Emtek is the decorative choice, sandcast solid bronze in Flat Black Bronze or Medium Bronze with ten lever styles to match the rest of a rustic or period house. The Delaney is the plainer, graded option. If you want keyless without electronics, the Lockey 1150 mechanical keypad lever set is the other direction.

It can. The keypad lever can be ordered with any Sandcast Bronze lever, so pick the same style already on your other openings from the ten offered, and match the finish in Flat Black Bronze or Medium Bronze. That is how you put a code on the back door or the garage entry and keep the whole house reading as one set of hardware.

The Lockey 2835 mechanical pushbutton keyless lever lock is stated as ADA compliant, with passage function, fitting doors 1-3/16 inch to 2 inch thick. It is a keyless lever like the Emtek Sandcast Bronze Keypad Leverset but uses mechanical pushbuttons rather than an electronic keypad, so it is the one to specify when the opening has to meet ADA operable-hardware requirements.

The Emtek Sandcast Bronze Keypad Leverset is a decorative residential lever, so interior doors on the same job usually take a matching decorative lever in passage or privacy. The Baldwin Estate 5103 with the 5048 rose is offered in passage, in privacy, and in left hand and right hand half dummy, which covers hall, bath and closet openings alongside a keyed or coded entry. The Baldwin half dummies are handed the same way the Emtek keypad leverset requires handing at order.

No. The Accentra 107S is a Schlage cylinder adapter kit for Yale hardware. The Emtek Sandcast Bronze Keypad Leverset already ships with a Schlage C keyway as the standard cylinder, with a Weiser WR5 keyway offered as a substitution, so the keyway is chosen at order rather than adapted afterward.

For a keyed entry lever without code entry, the Cal-Royal AG00 is a Grade 2 entrance lever with a 6-pin Schlage C keyway keyed different on a 2-3/8 inch backset for 1-3/8 inch to 1-3/4 inch doors, and the Hager 2525 is a Grade 2 commercial cylindrical entry lock with a lever handle for 1-3/8 inch to 2 inch doors. The Cal-Royal AG00 shares the Schlage C keyway that the Emtek Sandcast Bronze Keypad Leverset uses as standard, so it can be keyed into the same system.

The Emtek Sandcast Bronze Keypad Leverset is ordered in a 2-3/8 inch or 2-3/4 inch backset, with 2-3/8 inch as the standard latch. The Lockey 1150S is a mechanical keypad heavy duty lever set with an adjustable backset for 1-1/8 inch to 2 inch doors, which lets one lock cover either bore location when the prep on site is not confirmed.

The Emtek Sandcast Bronze Keypad Leverset is a rustic bronze lever offered in ten lever styles including Durango, Teton and Yuma. For a decorative keyed entry lever without the keypad, the Deltana Manchester 6201, Morant 6411 and Linstead 6431 are entry levers covering 1-3/8 inch to 2 inch doors, and the Deltana Claremont 5851 is an entry lever in the same family. These give a decorative entry function on a door where a code is not wanted.

No. The Imperial USA ED-EL500HD is heavy duty escutcheon lever trim with an entry function, ED-500 series trim that mounts to an exit device. The Emtek Sandcast Bronze Keypad Leverset is a tubular bored lock that sets into a 2-1/8 inch bore with a latch and strike included, so the two go into completely different door preps.

The Emtek Sandcast Bronze Keypad Leverset is a residential lever offered in keypad and keypad with storeroom/gate function. For a classroom opening, the Dexter C1000 Classroom is a Grade 1 clutching keyed cylindrical lever for 1-3/8 inch to 1-3/4 inch doors, the Dexter C1000 Classroom Security is the Grade 1 clutching version with classroom security function, and the Cal-Royal AG03 is a classroom lever in the AG series with a 6-pin Schlage C keyway on a 2-3/4 inch backset.
