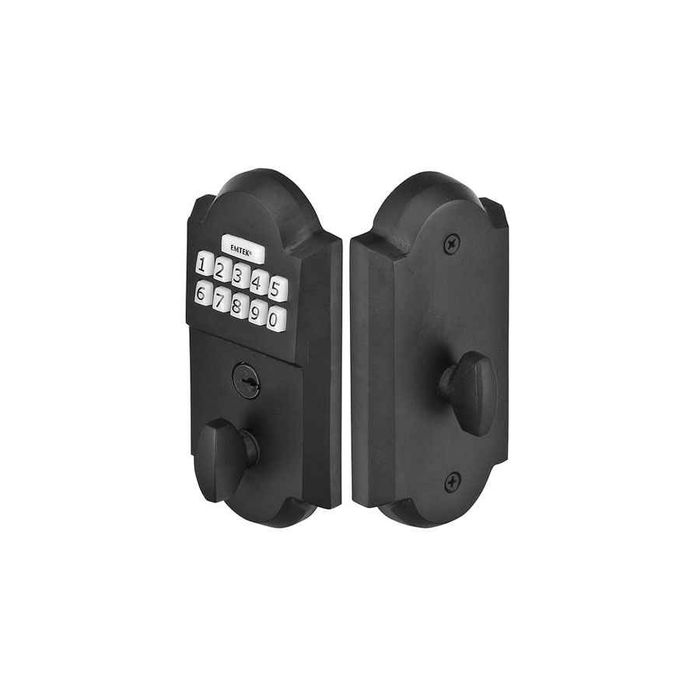

Emtek Sandcast Bronze Electronic Keypad Deadbolt

It is a residential-duty tubular deadbolt in sandcast bronze, built for houses and rustic-style entries rather than high-traffic commercial openings. For a commercial door look instead at the Dormakaba Saffire LX-D RFID electronic deadbolt or the Codelocks CL2210 electronic mortise deadbolt, or for a keyed Grade 1 deadbolt the Design Hardware D1 Series or Deltana CL200LM.

Yes, it is keyed and ships with a Schlage C keyway cylinder as standard. A Weiser WR5 keyway is offered as a substitution (the WE1001 versions), so if the rest of the building is on Weiser keys you order that variant instead of rekeying later. Both keyways are available in either finish.

Sold as a complete set including the latch and the strike plate, so the only extra you need for the opening itself is a 9V battery. Specify backset when you order. If the door is already bored for a deadbolt at 2-1/8 inches, no additional hardware is required to finish the install.

The Emtek Sandcast Bronze Electronic Keypad Deadbolt is a keypad-read electronic deadbolt in a tubular lock body, cast in bronze and finished as Flat Black Bronze or Medium Bronze. The nearest peer that keeps the same electronic deadbolt idea is the Delaney KP400, a Grade 2 electronic deadbolt in the KP400 Series that adds a programmable remote alongside code entry. The Emtek uses keypad entry with a keyed cylinder and no remote, so choose the Delaney when a fob-style remote is wanted and the Emtek when a solid bronze exterior appearance is the priority.

The Emtek Sandcast Bronze Electronic Keypad Deadbolt is designated for residential use. For a commercial opening, the Codelocks CL2200 is an electronic surface deadbolt in the CL2000 Series rated medium duty in a brushed steel finish, and the Codelocks CL2210 is an electronic mortise deadbolt for doors prepped for a mortise case. The Emtek fits a 2-1/8 inch cross bore standard door prep, so the Codelocks surface and mortise bodies suit door preps the bored Emtek cannot use.

Where a drawing calls out ANSI/BHMA Grade 1, the Accentra D111 is a Grade 1 single cylinder deadbolt in the D Series with a 2-3/8 inch backset, a cylinder x thumbturn function and a 1-3/8 inch to 1-3/4 inch door thickness range. The Delaney LM Series 301702 is a Grade 1 single cylinder less core deadbolt in dull chrome US26D for facilities keying to their own interchangeable cores, and the Design Hardware D1 Series is a Grade 1 extra heavy duty double cylinder deadbolt for 1-3/4 inch doors. The Emtek Sandcast Bronze Electronic Keypad Deadbolt is a residential product, so a graded specification points to these instead.

They are not the same credential. The Emtek Sandcast Bronze Electronic Keypad Deadbolt uses a keypad reader, programmed with two user codes at the factory and holding up to 20. The Dormakaba Saffire LX-D is an RFID electronic deadbolt in the Saffire Series with BLE and Electronic Lock Override, and the Dormakaba Nova-D is an RFID multihousing smart electronic deadbolt in the Nova Series. Those read a card or phone rather than a typed code, which means a credential issuing system behind them; the Emtek needs only a code told to the user.

No. The DynaLock 1300 Series is a heavy duty mortise electric deadbolt, meaning a bolt driven by an access control system through wiring in the frame. The Emtek Sandcast Bronze Electronic Keypad Deadbolt is a standalone battery unit, running on a 9V battery with codes stored in the lock itself and a keyed cylinder for override. Choose the DynaLock when the bolt must answer to a panel, card reader or release button, and the Emtek when the door has no wiring to it.

The Emtek Sandcast Bronze Electronic Keypad Deadbolt ships with a Schlage C keyway cylinder as standard, with a Weiser WR5 keyway available in its place. Mechanical peers on the same keyway include the Hager 3115, a cylinder x thumbturn deadbolt with a Schlage C keyway and a 1-3/8 inch to 1-3/4 inch door thickness range, and the Hager 3118 Grade 1 classroom deadbolt with a Schlage C keyway and a 6-pin cylinder. A property keyed in Schlage C can mix the Emtek on code-entry doors with those on the rest.

For a fire rated opening the Cal-Royal CRB800 is a heavy duty single cylinder deadbolt with a UL 3-hour fire rated latch in the CRB800 Series, and the Hager 3214 double cylinder and Hager 3215 single cylinder deadbolts both carry a fire rating with a 1-3/8 inch to 1-3/4 inch door thickness range. The Emtek Sandcast Bronze Electronic Keypad Deadbolt is a residential bronze unit, so a rated corridor or stair door is served by those instead.

Up to 20 user codes can be stored, and the lock arrives programmed with 2 unique secure codes out of the box. For a rental or a small office that means each tenant, cleaner, or trade can get their own code, and you delete the one code when someone leaves rather than rekeying the cylinder.

The Emtek Sandcast Bronze keypad deadbolt is keyed as well as coded, so a cylinder key gets you in independent of the keypad. It runs on a 9V battery. Among other electronic deadbolts, the Codelocks CL200 surface deadbolt is also listed with key override.

Both are keypad-style electronic deadbolts. The Emtek is a sandcast bronze residential unit in two bronze finishes, chosen mostly for the look on a heavy or rustic entry door. The Delaney KP400 is a Grade 2 electronic deadbolt that adds a programmable remote. If you want RFID credentials instead of a code, the Dormakaba Nova-D is an RFID multihousing electronic deadbolt.

Door thickness is an order-time entry on the Emtek keypad deadbolt, so you give the actual thickness of your door when you place the order rather than trimming spindles on site. Measure the door at the lock edge, and give the backset with it, since backset is a required selection at 2-3/8 or 2-3/4 inches.

For a straight cylinder-and-thumbturn deadbolt, the Dexter DB1000 Series is Grade 1 and fits 1-3/8 to 1-7/8 inch doors, and the Dexter DB2000 Series is Grade 2 for 1-3/8 to 1-3/4 inch. The Hager 3115 is a Grade 2 cylinder x thumbturn on a Schlage C keyway, which keys alike with the standard Emtek keypad deadbolt cylinder. For a decorative bronze-era look, Baldwin Reserve and Estate deadbolts are the closer match in style.

The Emtek Sandcast Bronze Electronic Keypad Deadbolt fits a 2-1/8 inch bore standard door prep with a 2-3/8 inch or 2-3/4 inch backset. A mortise-prepped door takes a different body: the Dormakaba D900 is a small case mortise deadbolt with a D cylinder keyed different in SC keyways, and the International Door Closers DH-1821 is a hook bolt deadlock with a flat faceplate in the DH-1820 Series for sliding and narrow stile conditions. Neither is interchangeable with a bored prep.

The Emtek Sandcast Bronze Electronic Keypad Deadbolt runs on a 9V battery and stores up to 20 user codes. Where a battery and codes are unwanted, the Dexter DB1000 single cylinder deadbolt is Grade 1 with a cylinder x thumbturn function and a 1-3/8 inch to 1-7/8 inch door thickness range, and the Hager 3215 is a Grade 2 single cylinder deadbolt with a 1 inch throw and a 1-3/8 inch to 1-3/4 inch door thickness range. Both are key-and-turn only, with no programming step at install.

The Emtek Sandcast Bronze Electronic Keypad Deadbolt lists a 1-3/8 inch to 2 inch door thickness. Where the door falls outside that, the Corbin Russwin DL3011 cylindrical deadlock in the DL3000 Series covers 1-3/4 inch to 2-1/4 inch, and the Deltana 7312KA2 Grade 3 double cylinder deadbolt covers 1-3/8 inch to 2 inch. Confirm the leaf with a caliper before ordering, since bolt hub length is what sets the range.

The Emtek Sandcast Bronze Electronic Keypad Deadbolt is sandcast bronze in a rustic styling, sold in Flat Black Bronze and Medium Bronze. For the same decorative intent without code entry, the Baldwin Estates 8011 is a contemporary 1-5/8 inch double cylinder deadbolt with an entrance function in the Estate Series, and the Baldwin Reserve double cylinder deadbolt comes in contemporary round or square trim. Those are mechanical key-both-sides units, so glass-adjacent doors and egress rules should be checked before specifying a double cylinder.

The Emtek Sandcast Bronze Electronic Keypad Deadbolt is ordered to a fixed backset, 2-3/8 inch standard or 2-3/4 inch specified at the time of order. On a fleet of doors bored inconsistently, the Brinks Raleigh E2401 round and Brinks Mendocino E2402 square single cylinder deadbolts use a 4 way adjustable backset, and the Cal-Royal ED500 is a Grade 3 single cylinder deadbolt with an adjustable backset and a 1-3/8 inch to 1-3/4 inch door thickness range. Those adjust in the field rather than at order entry.

Both take a code, but they are built differently. The Codelocks CL200 is a light duty surface deadbolt with key override in the CL200 Series, mounting on the face of the door rather than through a bore. The Emtek Sandcast Bronze Electronic Keypad Deadbolt is a tubular electronic deadbolt set into a 2-1/8 inch cross bore with a 9V battery. A surface unit avoids boring the door; the tubular Emtek gives the flush trim look of a standard deadbolt.

Two: Flat Black Bronze (FB) and Medium Bronze (MB). Both are living finishes on sandcast bronze, so they will patina with weather and handling rather than staying uniform, which is the point on a rustic or timber-frame entry. Split finish is available as an order option if you want a different look inside than out.
