Emtek SELECT Brass Terrazzo Le...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$283.00
$226.40

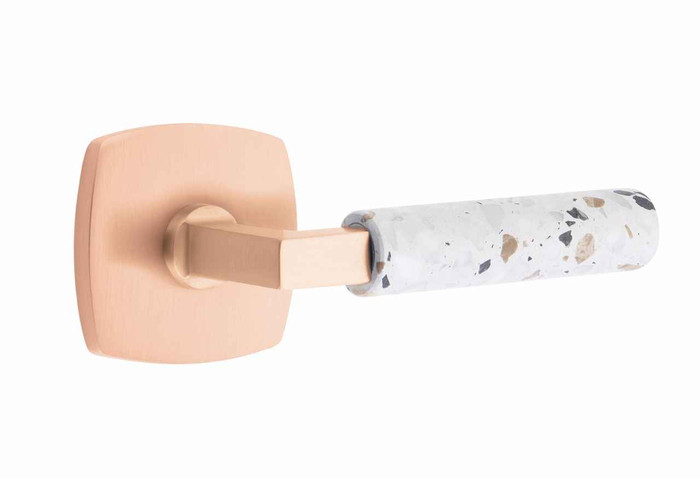

Emtek SELECT Brass Terrazzo Lever - Passage Set - Limited Release Finish Expansion

Emtek SELECT Brass Terrazzo Lever - Passage Set - Limited Release Finish Expansion

(No reviews yet) Write a Review

Model: 5109MW.LSMW.TZLT.RH
From the SELECT Series Collection
$283.00
$226.40
Selected Handle is
Selected Stem is
Selected Rosette is
Selected Finish Options for ROSETTE and STEM is
Selected Concealed Fastener (CF) Mechanism is
Selected Handing is
Selected Backset is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$283.00
$226.40
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek SELECT Brass Terrazzo Lever - Passage Set - Limited Release Finish Expansion

  • Sold as complete set. Includes Latch and Strike Plate
  • 28 Degree Latch option (included when CF Mechanism is selected)
  • Fits any door between 1-3/8” to 2-1/4" thick with a 2-1/8" bore standard door prep*
    • Door thickness for CF Mechanism is 13/8” to 13/4”. Specify if thicker.
  • Standard latch is for 2-3/8" backset. Specify 2-3/4" backset if required



* STRETTO rosette requires a 1-1/4” diameter bore hole and 2-hole door preparation for thumbturn privacy





Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass



Manufacturer Resources:

Product Specs

Subcategory:
Leversets
Collection:
SELECT Series
Product Type:
Leversets
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Commercial/Residential:
Residential
Handle Type:
Lever
Lock Type:
Tubular
Series:
Terrazzo
Theme:
Contemporary
Electronic:
No
Keyed Function:
Non-Keyed
Keyed:
No
Lock Function:
Passage
Product Attribute:
Cylindrical Locks
MAP Policy:
Yes
Product Function:
Passage/Hall/Closet
Product Style:
Contemporary
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware
SKU:
EMTEK-TERRAZZO-LEVER-PASSAGE-LIMITED-RELEASE-FINISHES

Emtek 5109MW.LSMW.TZLT.RH – Frequently Asked Questions

1) Will the Emtek Terrazzo passage lever fit my existing 2-1/8 inch bored door prep?
Yes. The Terrazzo passage leverset drops into a standard 2-1/8 inch cross bore and works on doors from 1-3/8 inch up to 2-1/4 inch thick. One exception on thickness: if you choose the Concealed Fastener (CF) mechanism, the range narrows to 1-3/8 inch through 1-3/4 inch, so call out anything thicker when you order.
2) Does the Emtek Terrazzo lever come with a 2-3/8 or 2-3/4 inch backset latch?
Backset is a required selection at the time of order, 2-3/8 inch or 2-3/4 inch. The standard latch ships for 2-3/8 inch, which is the common interior residential backset, so if your doors are bored at 2-3/4 inch you have to specify it. Measure from the door edge to the center of the bore before you order.
3) What is included with the Emtek Terrazzo passage set, and do I need to buy a latch separately?
It ships as a complete set: levers, rosettes, latch and strike plate. Nothing else is required for a standard bored door. Latch faceplate comes round corner or square corner to match the existing mortise in the door edge.
4) Do I have to specify handing on an Emtek Terrazzo passage lever?
Yes, handing is a required choice, left hand or right hand. Stand on the outside of the door: if the hinges are on your left it is left hand. Passage function has no lock, but the lever still has to point the correct way, so get this right at order time.
5) Is a passage lever the right function for a bedroom or bathroom door?
No. Passage function latches the door but does not lock at all, which suits hallways, closets and pantries. For a bedroom or bath you want privacy function with a thumbturn. Emtek builds the Terrazzo lever in privacy as well, and among other brands the Baldwin Estate 5103 privacy lever with 5048 rose covers the same interior application.
6) I need a passage lever for a commercial corridor instead of a residential one - what should I use?
The Emtek SELECT Brass Terrazzo passage set is designated residential. For commercial openings, Falcon K101 is a Grade 1 heavy-duty passage cylindrical lock with non-handed levers and a fire rating, covering 1-3/8 inch to 2-1/4 inch doors, and Corbin Russwin CL3110 is a Grade 1 vandal-resistant passage lever lock, also fire rated, for 1-3/4 inch to 2 inch doors. Both are specified by ANSI grade rather than by decorative rosette and stem combination.
7) What is the closest decorative equivalent to the Emtek Terrazzo passage lever from another residential brand?
The Baldwin Estate 5103 Passage Lever with 5048 Rose is the nearest decorative-grade peer: a passage-function lever on a round rose, same non-latching hall and closet duty as the Emtek SELECT Brass Terrazzo passage set. The difference is configurability - the Terrazzo set is built from separate handle, stem, and rosette choices, with stems in L-Square, R-Bar, and T-Bar and rosettes in Disk, Quincy, Square, and Urban Modern, while the 5103 is supplied as a fixed lever and rose pairing.
8) The door needs to lock for a bathroom - what takes the place of the Terrazzo passage lever?
A passage set does not lock. The Emtek SELECT Brass Terrazzo lever is non-keyed passage function only. For a bed or bath opening, Baldwin Estate 5103 is offered as a privacy lever with the 5048 rose, Kwikset 300BRNL Breton is a Grade 3 privacy lever set for 1-3/8 inch to 1-3/4 inch doors, and Hager 2540 is a Grade 2 privacy cylindrical lock with the Withnell lever.
9) Can I use a dummy lever in place of an Emtek Terrazzo passage set?
No - a dummy has no latch. The Emtek SELECT Brass Terrazzo passage set is supplied complete with latch and strike plate and operates a latchbolt. Dummy trim such as Baldwin Estate 5103 half dummy (offered left hand and right hand), BEST 9K Series 1DT single dummy, and BEST 7KC Series single dummy is surface-mounted pull trim for inactive or closet leaves only.
10) My door is 2 inches thick - what passage lever covers it if the Terrazzo CF mechanism does not?
With the Concealed Fastener mechanism the Emtek SELECT Brass Terrazzo passage set covers 1-3/8 inch to 1-3/4 inch doors. For a 2 inch leaf, Falcon K101 is a Grade 1 passage lock rated 1-3/8 inch to 2-1/4 inch, Dexter C1000 asylum function covers 1-3/8 inch to 2 inch, and Hager 2510 Grade 2 passage covers 1-3/8 inch to 2 inch.
11) The opening is a classroom or storeroom - can I specify the Terrazzo passage lever?
No. The Emtek SELECT Brass Terrazzo lever is passage, hall, and closet function with no cylinder. For those openings use Dexter C1000 Grade 1 classroom with clutching for 1-3/8 inch to 1-3/4 inch doors, Cal-Royal AG05 Grade 2 storeroom lever with a deadlocking latchbolt, or Hager 2580 Grade 2 storeroom lock with the Withnell lever.
12) What does the Concealed Fastener (CF) mechanism option change on this Emtek lever?
Choosing CF gives you a rosette with no visible screws on the face, and the 28 degree latch is included with that mechanism. The trade-off is door thickness: CF covers 1-3/8 to 1-3/4 inch, while the standard latch version goes up to 2-1/4 inch. On a thick or solid slab door, take the standard latch.
13) What finishes and rosette shapes can I get on the Emtek Terrazzo lever?
The Terrazzo handle is offered in Light Terrazzo (TZLT), paired with rosette and stem in one of three finishes: Matte White, Pewter (US15A) or Satin Rose Gold. Rosette shapes are Disk, Quincy, Square and Urban Modern, and the stem comes as L-Square, R-Bar or T-Bar. That is how you match the rest of the openings in a house or unit.
14) Is there a Grade 2 passage lever I can use on the same opening as an Emtek Terrazzo passage set?
Yes. Accentra 5301LN Augusta is a Grade 2 cylindrical passage lever in the 5300 Series, Accentra 4601LN is a Grade 2 passage lever with Augusta trim in the 4600 Series, and Hager 2510 is a Grade 2 passage lever with the Withnell design for 1-3/8 inch to 2 inch doors. All three perform the same passage, hall, and closet function as the Emtek SELECT Brass Terrazzo lever, in a commercial-style trim rather than a brass decorative set.
15) What is a simpler passage lever if I do not need brass or a choice of rosettes?
Kwikset 200BRNL RDT Breton is a Grade 3 passage lever set for 1-3/8 inch to 1-3/4 inch doors, and Callan Asheville AH5011 is a Grade 3 passage leverset in satin nickel. Both arrive as a single fixed trim, where the Emtek SELECT Brass Terrazzo passage set is brass and is ordered by selecting handle, stem, rosette, and rosette/stem finish in Matte White, Pewter, or Satin Rose Gold.
16) I need keyed entry on this door, not passage - what lever should I order instead?
The Emtek SELECT Brass Terrazzo lever is non-keyed. For a keyed opening, Cal-Royal AG00 is an entrance lever with a 6-pin Schlage C keyway keyed different on a 2-3/8 inch backset for 1-3/8 inch to 1-3/4 inch doors, Falcon B511CP6D is a Grade 2 entry/office cylindrical lever, and Deltana 6201 Manchester is an entry lever for 1-3/8 inch to 2 inch doors.
17) I want keyless code entry on the same door prep - what replaces a Terrazzo passage lever?
The Emtek SELECT Brass Terrazzo lever is a non-electronic tubular passage set. For code entry, Lockey 2835 is a mechanical pushbutton keyless lever lock with passage function and ADA compliance for 1-3/16 inch to 2 inch doors, Lockey 1150 is a heavy duty mechanical keypad lever set with double combination and passage function for 1-1/8 inch to 2 inch doors, and Delaney LP250 is a Grade 2 electronic keypad leverlock.
18) Which passage levers give me a square trim look similar to the Terrazzo Square rosette?
The Emtek SELECT Brass Terrazzo passage set offers a Square rosette and an L-Square stem. Among other brands, Bravura Tampa is a Grade 2 passage leverset with square trim; Bravura Atlanta, Orlando, and Miramar are Grade 2 passage leversets with round trim if you prefer a circular rose closer to the Terrazzo Disk option.
19) Is the Emtek Terrazzo lever a tubular or mortise lock?
Tubular, cylindrical bored type, non-keyed. It goes into a standard round bore in the door face rather than a rectangular mortise pocket in the edge, so it will not drop into a door prepped for a mortise lock body.
20) What is the Terrazzo lever made of?
Solid brass, both the handle material and substrate, from Emtek's SELECT Series. Brass is the reason the finish options run the range they do, from Matte White through Pewter and Satin Rose Gold.
