Emtek SELECT Brass Terrazzo Le...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$250.92

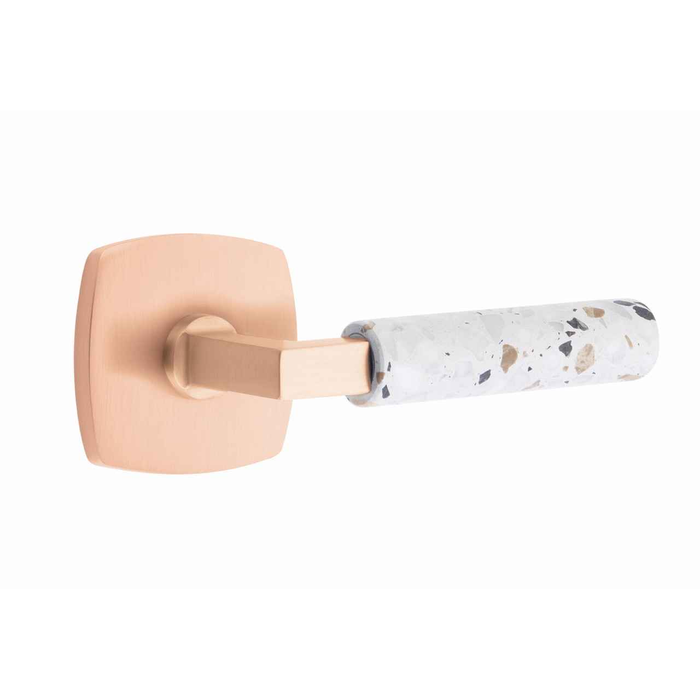

Emtek SELECT Brass Terrazzo Lever - Privacy Set - Limited Release Finish Expansion

Emtek SELECT Brass Terrazzo Lever - Privacy Set - Limited Release Finish Expansion

(No reviews yet) Write a Review

Model: 5209MW.LSMW.TZLT.RH
From the SELECT Series Collection
$250.92
Selected Handle is
Selected Stem is
Selected Rosette is
Selected Finish Options for ROSETTE and STEM is
Selected Concealed Fastener (CF) Mechanism is
Selected Handing is
Selected Backset is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$250.92
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek SELECT Brass Terrazzo Lever - Privacy Set - Limited Release Finish Expansion

  • Sold as complete set. Includes Latch and Strike Plate
  • 28 Degree Latch option (included when CF Mechanism is selected)
  • Fits any door between 1-3/8” to 2-1/4" thick with a 2-1/8" bore standard door prep*
    • Door thickness for CF Mechanism is 13/8” to 13/4”. Specify if thicker.
  • Standard latch is for 2-3/8" backset. Specify 2-3/4" backset if required



* STRETTO rosette requires a 1-1/4” diameter bore hole and 2-hole door preparation for thumbturn privacy





Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass



Manufacturer Resources:

Product Specs

Subcategory:
Leversets
Collection:
SELECT Series
Product Type:
Leversets
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Commercial/Residential:
Residential
Handle Type:
Lever
Lock Type:
Tubular
Series:
Terrazzo
Theme:
Contemporary
Electronic:
No
Keyed Function:
Non-Keyed
Keyed:
No
Lock Function:
Privacy/Bed/Bath
Product Attribute:
Cylindrical Locks
MAP Policy:
Yes
Product Function:
Privacy/Bed/Bath
Product Style:
Contemporary
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware
SKU:
EMTEK-TERRAZZO-LEVER-PRIVACY-LIMITED-RELEASE-FINISHES

Emtek 5209MW.LSMW.TZLT.RH – Frequently Asked Questions

1) Will the Emtek Terrazzo privacy lever fit my existing 2-1/8 inch bored door prep?
Yes. The Terrazzo privacy leverset drops into standard door prep with a 2-1/8 inch cross bore, and it covers doors from 1-3/8 up to 2-1/4 inches thick. The latch supplied is set up for a 2-3/8 inch backset, with 2-3/4 inch available if that is what your doors are bored for. One exception on prep: the STRETTO rosette needs a 1-1/4 inch diameter bore and a 2-hole door preparation for the thumbturn privacy function.
2) What is the door thickness limit if I order the Emtek CF concealed fastener mechanism?
The concealed fastener option narrows the range. With the CF mechanism the Terrazzo privacy lever covers 1-3/8 to 1-3/4 inch doors, where the standard mechanism goes up to 2-1/4 inches. If your door is thicker than 1-3/4 and you still want CF, that has to be specified on the order. The CF build also comes with the 28 degree latch.
3) Do I need to specify handing on an Emtek Terrazzo privacy lever?
Yes, handing is a required choice: left hand or right hand. Stand outside the door, and the side the hinges are on is the hand. Because the Terrazzo lever is handed, a left hand set will not work on a right hand opening, so get this right before ordering rather than assuming it is reversible the way many commercial passage levers are.
4) Is the Emtek Terrazzo lever suitable for a commercial building or apartment corridor?
It is a residential product, brass bodied and tubular in construction, with no ANSI grade behind it. For unit interiors, bedrooms and baths in multi-family it works. For a commercial or high-traffic opening that needs a graded cylindrical lock, look at something like the Falcon K101 Grade 1 cylindrical lock, which covers 1-3/8 to 2-1/4 inch doors and carries a fire rating, or the Arrow MK02-TA privacy cylindrical lock.
5) Does the Emtek Terrazzo lever come with a 2-3/4 inch backset latch?
The latch supplied as standard is for a 2-3/8 inch backset, which is the usual residential bore. If your doors are bored at 2-3/4 inches, which is common on 1-3/4 inch doors and heavier entry-style stiles, select that backset when ordering. Measure from the door edge to the center of the 2-1/8 inch bore to confirm which one you have.
6) What is the closest decorative privacy lever to the Emtek Terrazzo privacy set from another brand?
The Baldwin Estate 5103 privacy lever with the 5048 rose is the nearest decorative counterpart - it is a privacy/bed/bath lever like the Emtek Terrazzo SELECT brass privacy set, built for residential interior bedroom and bath doors. The difference is in the trim program: the Emtek Terrazzo privacy set lets you build the set from a Light Terrazzo handle, a Disk, Quincy, Square or Urban Modern rosette, and an L-Square, R-Bar or T-Bar stem, while the Baldwin 5103 is supplied as a fixed lever and rose pairing.
7) Can I use the Emtek Terrazzo privacy lever on a commercial office or school door?
The Emtek Terrazzo SELECT privacy set is a residential tubular lockset, so for commercial openings that need a graded lock, look at the Arrow MK02-TA Grade 1 privacy cylindrical lock, which carries a fire rating, or the Hager 2540 Grade 2 privacy cylindrical lock with the Withnell lever for doors 1-3/8 inch to 2 inch thick. Those are the graded commercial privacy answers; the Terrazzo set is the finish-driven residential one.
8) Will the Emtek Terrazzo privacy lever work on an entry door that needs a key?
No - the Emtek Terrazzo SELECT privacy set is non-keyed, with a thumbturn privacy function for bed and bath doors. For a keyed opening, the alternatives are keyed entry levers such as the Cal-Royal AG00 Grade 2 entrance lever with a 6-pin Schlage C keyway and 2-3/8 inch backset, the Hager 2525 Grade 2 commercial entry lever for doors 1-3/8 inch to 2 inch thick, or the Deltana 6201 Manchester entry lever for doors 1-3/8 inch to 2 inch.
9) What comes in the box with the Emtek Terrazzo privacy leverset?
It ships as a complete set: both levers with the rosettes and stems you choose, plus the latch and the strike plate. The privacy function means a thumbturn inside and an emergency release outside, no key and no cylinder. Latch faceplate is available round corner or square corner to match the mortise in your door edge.
10) What do I have to pick when ordering an Emtek SELECT Terrazzo lever?
Five choices build the set. Handle is Light Terrazzo (TZLT). Stem is L-Square, R-Bar, or T-Bar. Rosette is Disk, Quincy, Square, or Urban Modern. Rosette and stem finish is Matte White, Pewter (US15A), or Satin Rose Gold. Then handing, backset, and whether you want the concealed fastener mechanism. Door thickness gets entered as a note if yours is outside the standard range.
11) Is the concealed fastener option on the Emtek Terrazzo lever worth it?
The concealed fastener mechanism hides the screws on the rosette, so you get a clean face with no visible fixings, and it brings the 28 degree latch with it. The trade off is door thickness: CF is built for 1-3/8 to 1-3/4 inch doors only. If your doors run thicker, or you would rather keep the wider 2-1/4 inch capability, take the standard latch instead.
12) I ordered the Terrazzo privacy lever for a bedroom - what do I use on the hall and closet doors to match?
Privacy is the locking bed and bath function, so hall and closet doors take a passage lever instead. Passage counterparts include the Baldwin Estate 5103 passage lever with the 5048 rose in the decorative range, or the Kwikset 200BRNL RDT Breton Grade 3 passage lever set for doors 1-3/8 inch to 1-3/4 inch thick. Closet and pantry doors that only need a pull take a dummy, such as the Baldwin Estate 5103 half dummy, offered in left hand and right hand.
13) I need a privacy lever for a bathroom door but do not need the designer trim - what is a simpler option?
The Kwikset 300BRNL RDT Breton privacy lever set is the plainer route: it is a Grade 3 privacy/bed/bath leverset for doors 1-3/8 inch to 1-3/4 inch thick. The Emtek Terrazzo SELECT privacy set is the decorative brass alternative, with a Light Terrazzo handle and a choice of rosette and stem, and it fits doors from 1-3/8 inch up to 2-1/4 inch with standard 2-1/8 inch bore prep.
14) My door is 2 inches thick - can I still use the Terrazzo privacy lever?
The Emtek Terrazzo SELECT privacy set fits doors from 1-3/8 inch to 2-1/4 inch thick with standard 2-1/8 inch bore prep, though if you choose the Concealed Fastener mechanism the range narrows to 1-3/8 inch to 1-3/4 inch and thicker doors must be specified. If you need a thicker-door lever in another line, the Falcon K101 Grade 1 passage lock covers 1-3/8 inch to 2-1/4 inch and the Dexter C1000 asylum function covers 1-3/8 inch to 2 inch, both non-decorative commercial locks.
15) Is the Emtek Terrazzo privacy lever handed like some of the commercial levers?
Yes - the Emtek Terrazzo SELECT privacy set is ordered as left hand or right hand, so the opening has to be handed before you order. Several commercial passage levers are non-handed instead, including the Falcon B101 Grade 2 and the Falcon K101 Grade 1, both described as non-handed lever designs, and the Kwikset 200DL Delta passage lever, which is reversible.
16) Is a dummy lever a substitute for the Terrazzo privacy set on a bathroom door?
No. A dummy lever is a fixed pull with no latch, so it cannot secure a bath or bedroom door the way the Emtek Terrazzo SELECT privacy set does with its thumbturn privacy function, latch and strike plate. Dummy trims such as the BEST 9K Series 1DT single dummy, the BEST 7KC Series single dummy, or the Callan Bentley Grade 2 dummy lever are for inactive leaves and closet doors only.
17) Can I match the Emtek Terrazzo privacy lever across bedrooms, hallways and closets in the same house?
The Terrazzo lever is part of Emtek's SELECT Series, which is built around mixing a handle, stem and rosette, so the same Light Terrazzo handle and rosette style can be carried through the house with the function changed per door. This particular build is the privacy set for bedrooms and baths, with a thumbturn and no key. For hall and closet doors you would order the same handle and rosette combination in passage function.
