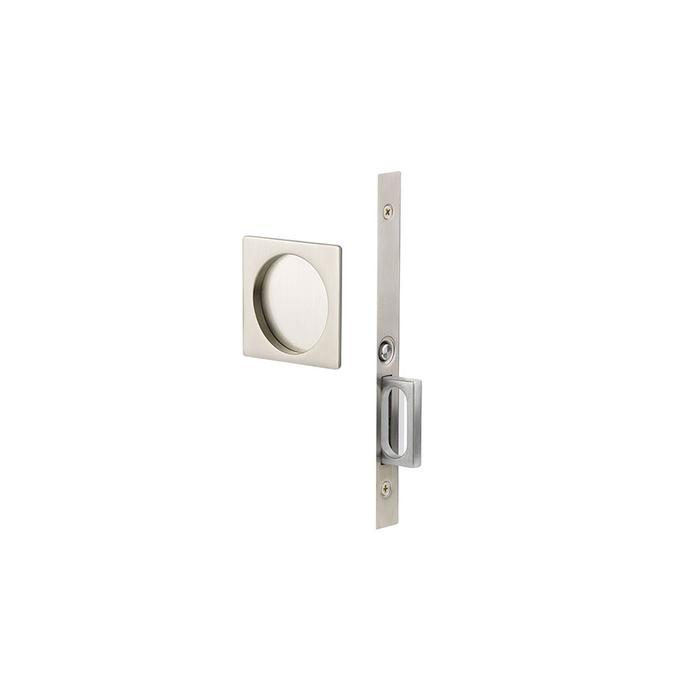

Emtek Square Pocket Door Mortise Lock (2-3/4" x 2-3/4")

Yes, 1-3/8 inches is the minimum door thickness for the Emtek square pocket door lock, and it works on thicker doors as well. The catch is that you have to state the actual thickness of your door when you order, on every function. The lock body is machined for the thickness you give, so a slab measured at 1-3/8 and one at 1-3/4 are not the same order. Measure the door itself rather than assuming, since a solid core 1-3/4 slab and an older 1-3/8 interior door both show up on pocket openings.

The backset is 2-1/8 inches, measured from the door edge to the center of the trim. That is a fixed dimension on this Emtek square pocket door lock, not adjustable, so the mortise pocket and the face bore have to be cut to it. If the door is already prepped for a different backset, the existing cutout will not line up. Some competing pocket locks, like the Weslock 0577, are built with an adjustable backset instead, which is the route to take when you are working with an existing prep you cannot change.

They are the three functions of the same square Emtek pocket door lock. The 2184 is passage, so it latches the door closed but never locks, which is what you want on a closet, pantry or laundry opening. The 2185 is privacy, with a locking thumbturn for a bath, powder room or bedroom. The 2186 is dummy, with no latch or working mechanism at all, used where the door only needs a face pull and stays unlocked. All three share the 2-3/4 x 2-3/4 inch square trim and the same seven finishes, so you can run passage on the closets and privacy on the bath and have them match.

It ships as a complete set with the screws and the strike plate included. Nothing else to buy for the lock itself. What is not in the box is the pocket frame and track, so if you are building the opening from scratch you still need those, and ZenSupply carries the Orca Hardware PK1200 pocket door frame kit and the NGP SLAL250PD72 72 inch aluminum track rated to 250 pounds for that side of the job.

No. The Emtek square pocket door lock is offered in passage, privacy and dummy only, so there is no keyed cylinder version of it. If the opening needs to key, the Omnia 7035/A is a keyed entry pocket door lock in solid brass with modern rectangular trim, and it is the one to look at instead. For a bath or bedroom where you only need the door to lock from the inside, the privacy 2185 already covers it.

Only if the existing prep was cut to a 2-1/8 inch backset with a 2-3/4 inch square face cutout, because the Emtek is fixed at that backset and the trim is 2-3/4 x 2-3/4 inches. Most square pocket locks are not cut the same. The Orca Hardware PDLSQ is another square privacy pocket door lock, and the Pamex PF1 is a square style sliding door lock built for doors 1-5/16 to 1-9/16 inches thick. If the existing hole is oversized or off the 2-1/8 backset, a lock with an adjustable backset such as the Weslock 0577 will cover more of the range than a fixed one.

The Orca Hardware PDLSQ is the nearest square-trim match, a privacy function square pocket door lock in the PDLSQ series. Emtek's privacy version carries the 2185 number and uses a square 2-3/4 inch by 2-3/4 inch brass trim plate. If square trim is the requirement and the rest of the door hardware does not need to match an Emtek finish, the PDLSQ covers the same bed and bath privacy duty in the same square shape.

The Pamex PF1 square style sliding door lock is rated for doors 1-5/16 inch to 1-9/16 inch, and the round-trim Pamex PF2 with a 2-3/8 inch backset carries the same 1-5/16 to 1-9/16 inch range. The Emtek square mortise pocket door lock requires a minimum door thickness of 1-3/8 inch and a 2-1/8 inch backset, so on a 1-5/16 inch panel the Pamex units are the ones that fit. Note the backset difference if the door is already bored or the jamb strike is already cut.

The Weslock 0577 rectangular privacy pocket door lock is rated 1-3/8 inch to 2 inch and includes an adjustable backset and a full lip strike; its passage counterpart, the Weslock 0527 rectangular passage lock with no locking, carries the same 1-3/8 inch to 2 inch range. The Emtek square mortise pocket door lock states a 1-3/8 inch minimum and a fixed 2-1/8 inch backset, and door thickness must be specified when ordering for every function. For a heavy solid-core panel where the exact thickness is still being confirmed on site, the adjustable-backset Weslock pair absorbs more variation.

The Omnia 7012 line covers the same three functions on separate part numbers: 7012/L is the privacy version with an emergency release, 7012/N is the passage version with a mortise edge pull, and 7012/PD is the pair dummy set with a mortise edge pull. Emtek splits the same three ways by number, 2184 passage, 2185 privacy and 2186 dummy. The visible difference is trim geometry: Omnia's 7012 trim is modern rectangular, while the Emtek uses a square 2-3/4 inch by 2-3/4 inch contemporary plate, so the two will not read the same on adjacent doors.

The trim plates are 1/8 inch thick, so that is all that projects past the door face. On a pocket door that number decides whether the door still runs into the pocket cleanly, since anything thicker can catch on the jamb or the pocket split studs. The plates measure 2-3/4 x 2-3/4 inches square and are solid brass.

Seven finishes across all three functions: Oil Rubbed Bronze (US10B), Polished Nickel Lifetime (US14), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26), Satin Brass (US4) and Unlacquered Brass (US3NL). These are the standard US finish codes Emtek uses on the rest of the brass collection, so a pocket door running US15 will match satin nickel levers and hinges elsewhere in the unit. Unlacquered brass is the one to think about before committing, since it is bare brass with no clear coat and will darken with handling rather than stay bright.

Emtek classes this square pocket door lock as residential hardware, and it is solid brass with contemporary square trim. That makes it a fit for single family, condo and apartment interiors. For a higher traffic institutional opening, the Rockwood 891 pocket door privacy latch or the Deltana SDLA325 heavy duty adjustable pocket door lock are the ones to price against.

A passage unit has a working latch that holds the door closed and a pull to release it, so the door stays put where you leave it. A dummy has no latch and no mechanism, just the trim and edge pull, so the door slides freely and is held only by the track or a magnetic catch. On the Emtek square pocket door lock that is the 2184 versus the 2186. Pick passage for a closet or pantry you want to stay shut, dummy for a wide opening or a decorative slider that never needs to latch. The Deltana SDP25 and Omnia 7012/N are other passage pocket door locks worth comparing.

The Deltana SDLA325 is a heavy-duty adjustable pocket door lock, 3-1/4 inch by 2-1/4 inch, in a privacy bed and bath function. The Emtek square pocket door lock is a residential brass mortise lock with a 2-3/4 inch by 2-3/4 inch trim. On a commercial corridor restroom or a clinic where the pull cycles all day, the heavy-duty Deltana is the one specified for that duty; the Emtek suits residential and light-use openings where the square brass trim matches the rest of the suite.

The Rockwood 891 is a pocket door privacy latch, privacy bed and bath function only. The Emtek square mortise pocket door lock ships as a complete set with screws and strikeplate and is offered in passage, privacy and dummy functions across seven brass finishes including oil rubbed bronze, satin nickel and flat black. If a job needs matching trim on a closet pocket door and a bathroom pocket door, the Emtek covers both functions in one appearance; the 891 addresses the privacy opening.

Two items in the pocket door aisle are not locks at all. The NGP SLAL250PD72 is a 72 inch aluminum pocket door track rated up to 250 pounds, and the Orca Hardware PK1200 is a pocket door frame kit for 1 inch or 1-3/4 inch doors. Those carry and house the door; the Emtek square 2-3/4 inch mortise unit is the latching hardware that mounts in the door edge and face. A full pocket door opening usually needs one of each, not one instead of the other.

The Deltana SDP25 is a 2-1/2 inch by 2-3/4 inch passage hall and closet pocket door lock, and the Weslock 0527 rectangular passage lock has no locking function at all with an adjustable backset. The Emtek passage version, the 2184, comes in seven finishes on a square brass plate at 2-3/4 inch by 2-3/4 inch with a fixed 2-1/8 inch backset. For a closet or pantry pocket door where the trim does not need to match a decorative suite, the Deltana and Weslock passage units do the same job.

Three round-trim units cover it: the Orca Hardware PDLRD is a privacy function round pocket door lock, the Weslock 0627 is a round passage pocket door lock with adjustable backset and full lip strike, and the Pamex PF2 is a round sliding door lock with a 2-3/8 inch backset. The Emtek unit is square, 2-3/4 inch by 2-3/4 inch. Pick by function: PDLRD or the round Pamex for a bath, the 0627 for a closet or hall pocket door.

The Deltana SDL25 is a 2-1/2 inch by 2-3/4 inch privacy bed and bath pocket door lock, close in footprint to the Emtek 2185 privacy version at 2-3/4 inch by 2-3/4 inch but not identical, so on a swap the existing face cutout should be checked before ordering. The Emtek is a mortise lock requiring a 2-1/8 inch backset and a minimum 1-3/8 inch door, and ships as a complete set with screws and strikeplate. On a fresh opening either works for a bath pocket door; on a retrofit, measure the existing plate first.

Yes. Split finish is available as an option on the Emtek square pocket door lock, so you can run one finish on the room side and another on the hall side. Call out the two finishes when you order. It comes up on a pocket door between a hall done in polished chrome and a bath done in flat black, where a single finish would clash with one of the two rooms.
