Exit Security 07-UV48 Heavy-Duty Door Security Bar for Single Inswing Wood Doors, 48"

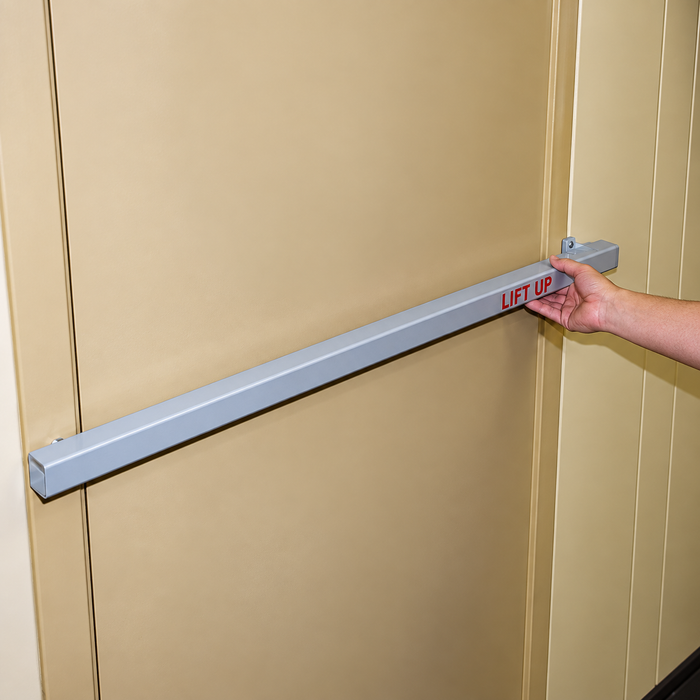

The Exit Security 07-UV48 Door Security Bar is a heavy-duty steel security bar engineered for single door inswing applications on wood door frames. Measuring 48" in length with a 1-1/4" security bar diameter, this door bar is rated for Commercial use within the Door Trim and Accessories category. Designed specifically for wood doors, the complete kit includes a primary locking receiver, locking cradle, steel grip, and rubber shock absorbers for reliable, everyday security.

Key Features

  • 48" Door Bar Length: Full 48" security bar with 1-1/4" diameter designed for single door inswing applications on wood door frames.
  • Heavy-Duty Steel Construction: Steel substrate delivers Heavy Duty performance suited for demanding commercial environments.
  • Complete Installation Kit: Includes security bar, primary locking receiver, locking cradle, steel grip, rubber shock absorbers (set of 3), lift-up and caution decals, extra long drill bit, and 5" screws.
  • Wood Door Compatibility: Purpose-built for use with wood doors and wood door frames in single door inswing configurations.
  • Rubber Shock Absorbers: Set of 3 rubber shock absorbers help cushion impact and reduce wear during daily operation.
  • Safety Signage Included: "Lift Up" decal and "Caution" decal sign provide clear operating instructions and warning signage for occupants.
  • Commercial-Grade Security: Classified under the Door Security Bars product type for dependable commercial door protection.

Technical Specifications

  • Product Group: Door Trim and Accessories
  • Product Subgroup: Door Trim and Accessories
  • Product Type: Door Security Bars
  • Subcategory: Door Plates, Door Edges & Protectors
  • Series: SB-07-UV48
  • For Use With: Wood Doors
  • Included Components: (1) 1-1/4" Security Bar, Primary Locking Receiver, Locking Cradle, Steel Grip, Rubber Shock Absorber (Set of 3), "Lift Up" Decal, "Caution" Decal Sign, Extra Long Drill Bit; (2) 5" Screws
  • Product Length: 48"
  • Product Category: Door Trim and Accessories
  • Product Substrate: Steel
  • Department: Door Hardware
  • Commercial/Residential: Commercial
  • Duty Level: Heavy Duty

Typical Applications

  • Commercial Retail Storefronts
  • Warehouse and Storage Facilities
  • Multi-Tenant Residential Properties
  • Educational Facility Entry Points
  • Government and Municipal Buildings
  • Industrial Loading Dock Doors
  • Healthcare Facility Secure Areas

Why Exit Security 07-UV48?

Exit Security 07-UV48 door bars deliver dependable, heavy-duty steel construction built for demanding commercial environments. With a complete kit of locking components, rubber shock absorbers, and safety signage included, this door security bar offers professional-grade protection engineered specifically for wood door installations.

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Door Trim and Accessories
Product Type:
Door Security Bars
Subcategory:
Door Plates, Door Edges & Protectors
Series:
SB-07-UV48
For Use With:
Wood Doors
Included Components:
(1) 1-1/4" Security Bar, Primary Locking Receiver, Locking Cradle, Steel Grip, Rubber Shock Absorber (Set of 3), “Lift Up” Decal, “Caution” Decal Sign, Extra Long Drill Bit; (2) 5" Screws
Product Length:
48"
Product Category:
Door Trim and Accessories
Product Substrate:
Steel
Department:
Door Hardware
Commercial/Residential:
Commercial
Duty Level:
Heavy Duty

Exit Security 07-UV48 – Frequently Asked Questions

1) Will the Exit Security 07-UV48 door bar work on a door that swings out?
No. The SB-07-UV48 is built for a single inswing door, so the bar braces against the door from the inside as the door swings toward you. On an outswing opening the bar has nothing to resist against and won't secure the door. If your door pulls open toward the outside, this is the wrong bar for it.
2) Can I mount this Exit Security door bar on a metal or steel door frame?
The 07-UV48 bar is the wood-frame version, and it's specified for wood doors. The mounting relies on two 5 inch screws driven through the frame into the surrounding wood framing, which is what gives the bar something to hold against. A hollow metal frame won't take that fastening, so a steel-frame opening needs the metal-frame version of the bar instead.
3) How wide an opening does the 48 inch Exit Security door bar cover?
Product length is 48 inches, which spans a standard single door leaf plus the frame receivers on each side. Measure the outside-to-outside distance across your door and jamb where the bar will sit; if that run is wider than 48 inches, this length won't reach. It's sized for a single door, not a pair.
4) What comes in the box with the Exit Security SB-07-UV48 security bar, and do I need to buy anything else?
Everything for the install is in the carton: one 1-1/4 inch security bar, the primary locking receiver, the locking cradle, a steel grip, a set of three rubber shock absorbers, a "Lift Up" decal, a "Caution" decal sign, an extra long drill bit, and two 5 inch screws. The drill bit is included because the fasteners have to reach past the jamb into the framing. You need a drill and a way to locate the studs, nothing else purchased.
5) Is the Exit Security door bar steel, and will it hold up in a high-traffic building?
The bar is steel, 1-1/4 inch stock, with rubber shock absorbers to take the impact where the bar meets the door. That's a mechanical brace with no electronics and no cylinder to wear out, which is why it gets used on back-of-house and after-hours doors in apartment buildings and commercial spaces where the same door gets barred and unbarred every night.
6) Does the Exit Security door bar replace my deadbolt or work alongside it?
It works alongside. The 07-UV48 is a surface-mounted brace: a steel bar that drops into a locking cradle and a primary locking receiver mounted to the frame. It adds a second, independent point of resistance to a door that already has a lock, and it's operated by hand from the inside only, so it can't be used as the door's primary lock on an opening people enter from outside. Think of it as the after-hours bar on top of whatever lockset is already in the door.
7) Why does the Exit Security bar come with an extra long drill bit and 5 inch screws?
Because the receiver has to anchor into the structural framing behind the jamb, not just the trim. Two 5 inch screws and the supplied extra long bit let you drill through the casing and jamb into the stud. Anchoring only into the door casing is how these bars get defeated, so use the full screw length into solid wood framing.
8) I have a pair of doors in the back of the building. Can I use the 07-UV48 bar on them?
No. This bar is configured for a single inswing leaf, with one primary locking receiver anchoring to the frame on one side. A pair of doors has no fixed jamb at the center for that receiver, so the single-door bar has nothing to catch. You need the double-door configuration for a pair.
9) What are the "Lift Up" and "Caution" decals included with the security bar for?
They mount on the door so anyone reaching it knows the bar has to be lifted out of the cradle before the door will open. On an occupied opening that matters: a barred door reads as jammed to someone who has not used one before. Both decals ship with the SB-07-UV48, along with the steel grip that gives you a handhold to lift the bar clear.
