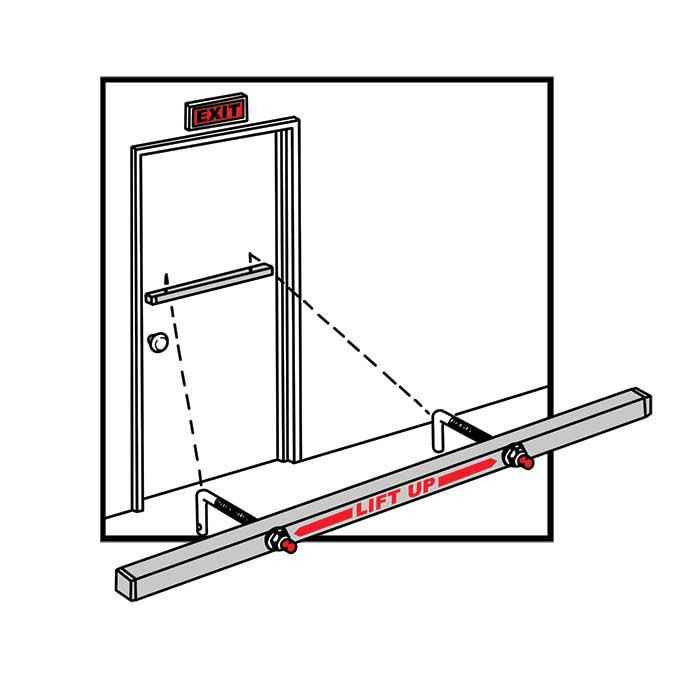

Exit Security Single Door Outswing Door Bar
Actual length of the 1” and 1¼ “ bars: Take the width of each door and subtract 2½” for the 1” bars. Add the widths of the two doors and then add 2½” for the length of the 1¼” bar.
Example....60” opening: One door is 24” the other is 36”. One 1” bar is 21½” and the other is 33½” long. The 1¼” bar would be 62½” long.
Model Number: Example....SB-01-0072. The 01 stands for outswing and the 72 stands for the 72” wide door opening. (Sum of the two 36" door widths)
Package includes: Two 1” square tubing that install permanently on the doors. One 1¼ “ square tubing with four “L” bolts that go across the jamb. The tubing is electrostatic powder coated, red silk screened arrow with red LIFT UP letters. Four “L” bolts 6½ “ long with eight flange nuts. Four step nuts with four elevator bolts. A stick-on caution sign reading “CAUTION This door to remain unlocked during occupancy”, a storing bracket and our most important Exit Security “STEEL GRIP”. With our easy-to-do instruction sheet, installation will be a breeze.
Installation: No door or frame preparation is required. No special tools are need. The instruction sheet was designed for a quick and simple installation. Please allow a 20 to 30 minute installation time. Tools needed include: electric drill, 5/16 drill bit, cresent wrench, tape measure and pencil.
Manufacturer Resources
Product Specs
- Category:
- Door Trim and Accessories
- Product Group:
- Door Trim and Accessories
- Product Subgroup:
- Door Trim and Latch Protection
- Product Type:
- Push Bars
- Subcategory:
- Door Plates, Door Edges & Protectors
- Length:
- 36', 42" or 48"
- Included Components:
- (2) 5/16" Elevator Bolt, 1/2" "L" Bolt, 1" End Cap, 5/16" Step Nut, 1-1/4" End Cap, 1/2" Red End Cap; (1) Steel Grip, Caution Decal Sign, Storage Bracket, 1" Square Tubing, 1-1/4" Square Tubing; (4) 1/2" Flange Nut
- Duty Level:
- Heavy Duty
- Substrate:
- Steel
- For Use With:
- Metal or Wood Doors
