Eye Bolt 5/16-18 X 2-3/8 Eye Blt &Nt St-zn (Jar 100)
Manufacturer Resources
Product Specs
- Division:
- Electrical H1
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Sub Division:
- Electrical-E H2
- Department:
- Electrical
- Product Subgroup:
- Bolts
Metallics JEB32 – Frequently Asked Questions
1) What thread size and length is the Metallics JEB32 eye bolt?

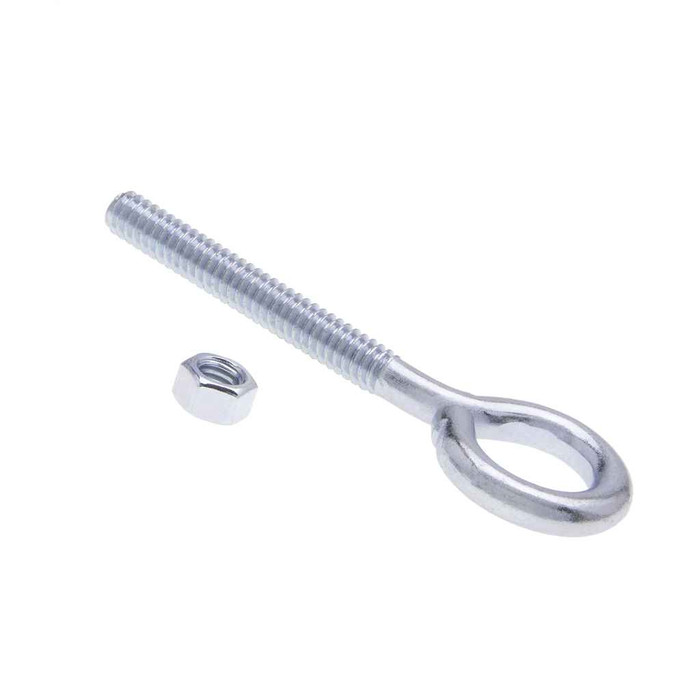

The JEB32 is a 5/16-18 eye bolt with a 2-3/8 inch shank length, and it ships with a matching nut. The 5/16-18 is a standard UNC coarse thread, so it mates with any 5/16-18 nut, coupling, or tapped hole.
2) Can I use a 5/16-18 eye bolt like the JEB32 for overhead rigging or lifting?
No. The JEB32 is a general purpose zinc plated steel eye bolt and nut for electrical and MRO fastening work, such as anchoring guy wire, supporting hangers, or tying off cable. It is not a rated lifting eye. Anything overhead or load bearing on people needs a forged, load rated shoulder eye bolt with a published working load limit.
3) Is a nut included with the JEB32 eye bolt or do I have to order it separately?
A nut comes with it. The JEB32 is sold as an eye bolt and nut set, so you don't need to buy fasteners separately to through-bolt it.
4) What finish is the Metallics JEB32 eye bolt, and can I use it outdoors?
It is steel with a zinc finish. Zinc plating handles dry indoor and protected locations well; for sustained exterior exposure, wet areas, or corrosive environments, step up to a stainless or hot dip galvanized eye bolt instead.
5) How does the JEB32 eye bolt come packaged for shop stock?
It ships 100 pieces in a jar, which is the typical way electrical and MRO shops stock small eye bolts on a shelf or truck. One order gets you a full jar, not a single piece.
6) How thick a material can I through-bolt with the JEB32?
With 2-3/8 inches of shank under the eye, you have that total length to work with minus the nut and whatever thread engagement you want. In practice that covers typical wood blocking, strut, and sheet steel assemblies; for thicker build-ups you need a longer shank eye bolt.
7) What part number do I order for the Metallics eye bolt and nut in 5/16-18?
Order Metallics JEB32. That is the manufacturer part number for the 5/16-18 by 2-3/8 inch zinc plated steel eye bolt with nut, in the 100 piece jar.
