Falcon 1493HB-OP Narrow Stile Concealed Vertical Rod Touch Bar Exit Device with Hold Back Optional Pull

Falcon 1493HB-OP Narrow Stile Concealed Vertical Rod Touch Bar Exit Device with Hold Back Optional Pull

Professional Grade 1 Exit Device for Aluminum Door Applications

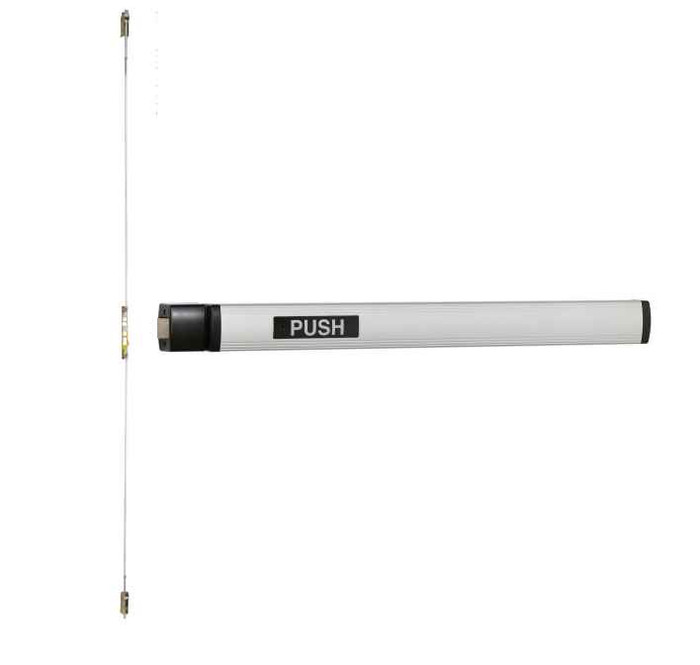

The Falcon 1493HB-OP is a narrow stile concealed vertical rod touch bar exit device from the 1490 Series, specifically designed for 1-3/4" aluminum doors in double door applications. This Grade 1 certified device features hardened steel latch bolts, sturdy aluminum push bars, and steel operating mechanisms for enhanced durability. The hold back cylinder function allows key retraction of the latch with hold back capability, making it ideal for commercial, multi-family, office and retail installations.

Professional Features & Benefits

• Door Compatibility: Designed specifically for 1-3/4" aluminum doors with narrow stile applications for optimal fit and performance.
• Heavy-Duty Construction: Built with steel operating mechanisms, hardened steel latch bolts, and sturdy aluminum push bars for exceptional durability in commercial environments.
• Grade 1 Certification: ANSI/BHMA A156.3 Grade 1 standards compliance ensures professional-grade performance and reliability.
• Hold Back Cylinder Function: Key retracts latch and holds latch back with 159CA-NL cylinder and rim cylinder configuration for enhanced access control.
• Concealed Vertical Rod Design: 2-3/4" projection with concealed mounting screws provides clean aesthetics while maintaining security functionality.
• Hurricane Rating Option: Available as hurricane-rated device for coastal code requirements when used with select door manufacturers.
• Electrification Ready: Designed to interface with building security systems for integrated access control solutions.
• Manufacturer Warranty: 10-year limited warranty provides long-term protection and confidence in product reliability.

Technical Specifications

• ANSI/BHMA: ANSI A156.3-2001
• Commercial/Residential: Commercial
• Department: Door Hardware
• Door Strike: PB48 top
• Door Thickness Range: 1-3/4"
• Fasteners: All mounting screws are concealed
• Grade: Grade 1
• Latch Specification: RL - Rod bottom latch (standard), Hex bottom latch (standard for EL), PL - Pullman bottom latch (optional), ES - electric strike top latch (optional). Device needs to be less bottom rod (LBR).
• Lock Function: Exit Only
• Product Category: Exit Devices and Trim
• Product Function: Exit Only
• Product Group: Exit Devices and Trim
• Product Projection: 2-3/4"
• Product Size: 36"
• Product Subgroup: Exit Devices - Vertical Rod
• Product Type: Exit Devices - Concealed Vertical Rod
• Series: 1490 Series
• Stile Type: Narrow Stile
• Subcategory: Concealed Vertical Rod
• Trim Hardware: Less Trim

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including 1-3/4" door thickness, narrow stile width, and handing as applicable to this concealed vertical rod device.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces for proper vertical rod alignment.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions, ensuring adequate clearance for concealed vertical rod operation.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications, ensuring concealed fasteners are properly seated.
5. Adjust operational components including vertical rod alignment, latch engagement, and cylinder function for proper operation throughout the full range of motion.
6. Test device operation including touch bar activation, cylinder hold back function, and vertical rod engagement to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Multi-Family Residential Properties
• Retail Establishments
• Educational Facilities
• Healthcare Institutions
• Industrial and Warehouse Facilities
• Government and Municipal Buildings

Why Choose Falcon Quality?

Falcon 1490 Series exit devices deliver professional-grade reliability with steel operating mechanisms and hardened steel latch bolts rated to ANSI/BHMA A156.3 Grade 1 standards. The 10-year limited warranty provides added confidence and long-term protection. Engineered for demanding commercial applications where dependable egress performance and aluminum door compatibility are essential.
