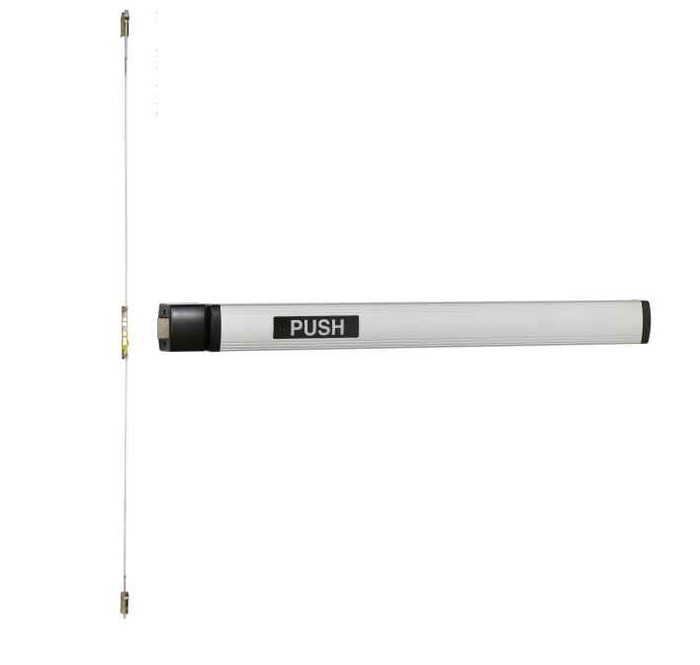

Falcon 1495HB-P Narrow Stile Concealed Vertical Rod Exit Device with Hold Back Function and Pull Trim

Falcon 1495HB-P Narrow Stile Concealed Vertical Rod Exit Device with Hold Back Function and Pull Trim

(No reviews yet) Write a Review

Model: 1495HB-P 42IN US28
$1,706.00
$1,304.54
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,706.00
$1,304.54
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Falcon 1495HB-P Narrow Stile Concealed Vertical Rod Exit Device with Hold Back Function and Pull Trim

Professional Grade 1 Exit Device for Aluminum Door Applications

The Falcon 1495HB-P is a narrow stile concealed vertical rod exit device engineered for 1-3/4" aluminum doors in commercial applications. This Grade 1 certified device features hold back cylinder functionality that allows key operation to retract the latch and hold it back, combined with pull trim for exterior access. Built with steel operating mechanisms and hardened steel latch bolts, this exit device delivers reliable egress performance with a 10-year limited warranty.

Professional Features & Benefits

  • Door Compatibility: Designed specifically for 1-3/4" aluminum doors with narrow stile construction for optimal fit and performance.
  • Heavy-Duty Construction: Steel operating mechanisms with hardened steel latch bolts and sturdy aluminum push bars provide exceptional durability for commercial applications.
  • Hold Back Cylinder Function: Key retracts latch and holds latch back for extended access periods, with integrated pull trim for exterior operation.
  • Grade 1 Certification: ANSI/BHMA A156.3 Grade 1 standards compliance ensures professional-grade performance and reliability.
  • Concealed Vertical Rod Design: 2-3/4" projection with concealed mounting screws provides clean aesthetics and tamper resistance.
  • Hurricane Rating Option: Available as hurricane-rated device for coastal applications when used with select door manufacturers.
  • Electrification Ready: Compatible with building security systems for integrated access control applications.
  • Manufacturer Warranty: 10-year limited warranty provides long-term protection and confidence.

Technical Specifications

  • ANSI/BHMA: ANSI A156.3-2001
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Door Strike: PB48 top
  • Door Thickness Range: 1-3/4"
  • Fasteners: All mounting screws are concealed
  • Grade: Grade 1
  • Latch Specification: RL - Rod bottom latch (standard), Hex bottom latch (standard for EL), PL - Pullman bottom latch (optional), ES - electric strike top latch (optional). Device needs to be less bottom rod (LBR).
  • Lock Function: Dummy/Pull Trim
  • Product Category: Exit Devices and Trim
  • Product Function: Pull Trim
  • Product Group: Exit Devices and Trim
  • Product Projection: 2-3/4"
  • Product Size: 42"
  • Product Subgroup: Exit Devices - Vertical Rod
  • Product Type: Exit Devices - Concealed Vertical Rod
  • Series: 1490 Series
  • Stile Type: Narrow Stile
  • Subcategory: Concealed Vertical Rod
  • Trim Hardware: Pull Trim

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Multi-Family Residential Properties
  • Industrial and Warehouse Facilities
  • Government and Municipal Buildings

Why Choose Falcon Quality?

Falcon 1495HB-P exit devices deliver professional-grade reliability with steel operating mechanisms and hardened steel latch bolts rated to ANSI/BHMA A156.3 Grade 1 standards. Backed by a 10-year limited warranty, this concealed vertical rod device is engineered for demanding commercial applications where dependable egress performance and security integration are essential.

Manufacturer Resources

Falcon Exit Devices Catalog

Product Specs

Product Group:
Exit Devices and Trim
Series:
1490 Series
Fasteners:
All mounting screws are concealed
ANSI/BHMA:
ANSI A156.3-2001
Product Subgroup:
Exit Devices - Vertical Rod
Product Type:
Exit Devices - Concealed Vertical Rod
Subcategory:
Concealed Vertical Rod
Commercial/Residential:
Commercial
Grade:
Grade 1
Stile Type:
Narrow Stile
Lock Function:
Dummy/Pull Trim
Product Function:
Pull Trim
Door Thickness Range:
1-3/4"
Product Size:
42"
Latch Specification:
RL - Rod bottom latch (standard), Hex bottom latch (standard for EL), PL - Pullman bottom latch (optional), ES - electric strike top latch (optional). Device needs to be less bottom rod (LBR).
Product Projection:
2-3/4"
Trim Hardware:
Pull Trim
Door Strike:
PB48 top
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Falcon 1495HB-P 42IN US28 – Frequently Asked Questions

1) Will the Falcon 1495HB-P fit a 1-3/4 inch aluminum storefront door?
Yes. The 1495HB-P is built for 1-3/4 inch doors only, and it is a narrow stile device, which is what aluminum storefront stiles require. Projection off the door face is 2-3/4 inches, so check your door swing clearance against adjacent walls or a second leaf. If your opening is a wide stile hollow metal or wood door, this is the wrong device.
2) What does the hold back function on the Falcon 1495HB do?
Key operation retracts the latch and holds it back, so the door stays push-pull free for as long as you want it that way. That is how you keep a storefront entrance unlocked through business hours without dogging the touch bar. Turn the key back and the latch returns to normal panic operation. Exterior side is a pull only, with no lever or thumbpiece, so the door cannot be unlatched from outside unless it is held back.
3) Does the 1495HB-P need to be ordered less bottom rod?
Yes, the device needs to be less bottom rod (LBR). Standard bottom latch is the RL rod bottom latch, with a hex bottom latch standard on the EL electric latch retraction version. A PL Pullman bottom latch is optional, and an ES electric strike top latch is also optional. Top strike is the PB48.
4) Is the 1495HB exit device handed?
Yes. You order it right hand reverse or left hand reverse, which for an exit device means the hand of the door as it swings out toward you. Get this wrong and the latch and cylinder land on the wrong edge. Stand outside the door: if it is hinged on your right and swings away from you, that is RHR.
5) What are the alternatives to the Falcon 1495 for a narrow stile aluminum door?
Several narrow stile concealed vertical rod devices cover the same opening. The Von Duprin 3347A-3ft is a Grade 1 narrow stile device for 1-3/4 inch doors in a 36 inch size, and the 5547-3ft and 7547-3ft are the crossbar and 75 Series narrow stile equivalents at the same thickness. Corbin Russwin ED4800 is a Grade 1 narrow stile device for 1-3/4 inch doors that accepts trim, with the ED7800 as the crossbar version. Adams Rite 8600 Series is narrow stile for aluminum doors, and the DORMA 9600BB is a narrow stile pushpad device.
6) I need a fire rated concealed vertical rod exit device. Can I use the Falcon 1495HB-P?
No. Hold back function retracts and holds the latch back by key, which is not permitted on a fire door, and the 1495HB-P carries no fire rating in its specs. For a rated opening look at the Adams Rite 3600 Series or the 3900 Series with a 1-1/2 hour rating, both Grade 1 fire rated but wide stile, or the Sargent 12-MD8613 classroom function fire rated device. Those are hollow metal and wide stile products, so they will not drop into an aluminum narrow stile opening.
7) What is a simpler exit-only alternative to the Falcon 1495HB-P if I do not need keyed hold back and a pull?
The Falcon 1495HB-P pairs a hold back cylinder function with pull trim for exterior access. If the opening needs egress only with no outside operation, exit-only concealed vertical rod devices include the Von Duprin 3347A-EO, which is exit only less bottom rod in narrow stile, the BEST Precision 2601 Series, a non-handed narrow stile exit-only device, and the CRL Jackson 1285 push pad device, which is exit only and fits narrow, medium or wide stiles.
8) Can the Falcon 1495 be tied into an access control system?
Yes, two ways. Order the EL option for electric latch retraction, which lets a card reader or remote release pull the latch back electrically, and note that the EL build uses the hex bottom latch as standard. Or order the S option for a signal switch that monitors the latch bolt, which is what you want for door position and forced-entry monitoring at the head end. An ES electric strike top latch is available as well.
9) Does the Falcon 1495HB-P meet Grade 1 for a commercial exit?
It is ANSI/BHMA Grade 1 under ANSI A156.3-2001, the commercial exit device standard, and is classified for commercial use. That is the grade most institutional and government specs call for on an egress opening. All mounting screws are concealed, which also helps on high-traffic or tamper-prone entrances.
10) Is there a hurricane rated version of this Falcon exit device?
Yes, order it with the HH hurricane device option, available in all three anodized finishes. Falcon lists the hurricane rating as applying when the device is used with select door manufacturers, so verify the door line on your coastal job supports the rating.
11) Should I use a concealed vertical rod device or a rim device on my aluminum doors?
Concealed vertical rod, like the 1495HB-P, latches into the header and hides the rods inside the stile, so it works on a pair of doors without a center mullion and leaves a clean face with no exposed rod to catch on. It demands a prepped door, the rods run inside the stile and the door has to be built for it. A rim device is far easier to retrofit onto an existing door but needs a mullion or a second latching leaf and leaves hardware on the face. If the doors are already prepped for concealed rod, stay with concealed rod.
12) My doors are thicker than 1-3/4 inch. What concealed vertical rod device works?
The Falcon 1495HB-P will not, it is a single thickness device at 1-3/4 inches. The DORMA 9100 Series wide stile pushpad and the 9600BB narrow stile pushpad both cover 1-3/4 inch through 2-1/4 inch doors and are Grade 1 heavy duty, non fire rated. Match stile type to your door: 9600BB for narrow stile, 9100 for wide.
13) Which concealed vertical rod devices look like a match for the Falcon 1495HB-P but are not?
Wide stile devices are the common mis-pick: the BEST Precision 2801 Series, Adams Rite 3600 and 8500 Series, Corbin Russwin ED5800, Sargent 12-MD8613, and the CRL Jackson 1085 Series 48 inch exit-only device are all wide stile or wide stile prep, while the Falcon 1495HB-P is narrow stile for 1-3/4 inch aluminum doors. The Sargent MD8613F-LTRIM is a metal door device in the 80 Series with hex dogging rather than a keyed hold back function.
14) How does the Falcon 1495HB-P differ from the Von Duprin 5547 and Corbin Russwin ED7800?
All three are Grade 1 narrow stile concealed vertical rod devices for 1-3/4 inch doors. The Falcon 1495HB-P uses a touch bar actuator with a 2-3/4 inch projection and hold back cylinder function with pull trim. The Von Duprin 5547 in the 55 Series and the Corbin Russwin ED7800 in the ED7000 Series are crossbar devices, the ED7800 being exit only that accepts operator trim.
15) Can I substitute a DORMA 9600BB for the Falcon 1495HB-P on a narrow stile aluminum storefront?
They are close in class but not identical. Both are Grade 1 narrow stile concealed vertical rod devices; the DORMA 9600BB is a 36 inch non-fire-rated heavy duty narrow stile pushpad device covering 1-3/4 to 2-1/4 inch doors. The Falcon 1495HB-P is built specifically for 1-3/4 inch doors, uses a touch bar, and includes hold back cylinder function with pull trim, so verify device length, actuator style and outside trim before swapping.
16) Which finishes does the Falcon 1495HB-P come in?
Three anodized aluminum finishes: US28 aluminum anodized, DC13 dark bronze anodized, and DC35 black anodized. All three are available with any of the device options, so you can match existing storefront in clear, dark bronze, or black regardless of whether you take EL, HH, or the signal switch.
