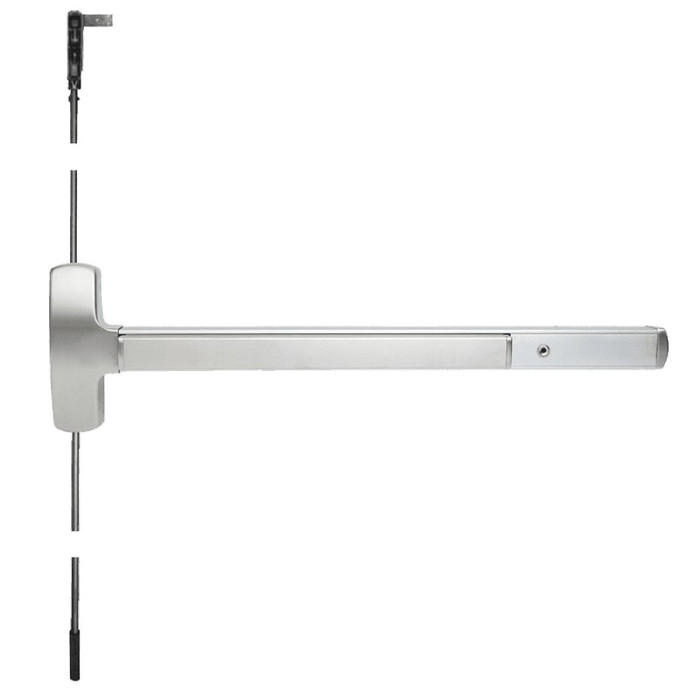

Falcon Falcon 25-C Series - Exit Only (No Trim) - Concealed Vertical Rod Exit Device - 4FT FAL-25-C-EO-4FT

Falcon 25-C Series Concealed Vertical Rod Exit Device - Exit Only - 48" Wide Stile

(No reviews yet) Write a Review

Model: 25-C-EO 4 313AN
$1,978.00
$946.45
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,978.00
$946.45
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Falcon 25-C Series Concealed Vertical Rod Exit Device - Exit Only - 48" Wide Stile

Grade 1 Commercial Exit Device for High-Traffic Applications

The Falcon 25-C Series concealed vertical rod exit device delivers professional-grade egress control for commercial applications requiring reliable performance. This 48" wide stile device features extruded aluminum construction with 3/4" latch throw and meets ANSI A156.3-2001 Grade 1 standards. Designed for 1-3/4" door thickness with field reversible operation, this exit-only device provides streamlined concealed vertical rod functionality for demanding commercial environments.

Professional Features & Benefits

  • Door Size Compatibility: 48" width designed for wide stile applications with 1-3/4" door thickness requirements.
  • Heavy-Duty Construction: Extruded aluminum construction delivers greater strength and impact resistance for high-traffic installations.
  • Grade 1 Performance: ANSI A156.3-2001 Grade 1 certification ensures reliable operation under continual use and abuse.
  • Concealed Design: No exposed screws or rivets on the back of the device for streamlined design and clean lines.
  • Field Reversible Operation: Adaptable to various door configurations for installation flexibility.
  • Stainless Steel Push Surface: Stainless steel push pad cover provides scratch-resistant pushing surface for long-term durability.
  • Flush-End Cap Design: Flush-end caps help prevent damage or removal in abusive situations.
  • UL Listed Fire Rating: UL listed A or B label fire rating for code compliance applications.

Technical Specifications

  • ANSI/BHMA: ANSI A156.3-2001
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Door Hand Direction: Field Reversible
  • Door Thickness Range: 1-3/4"
  • Grade: Grade 1
  • Latch Throw: 3/4"
  • Lock Function: Exit Only
  • Product Category: Exit Devices and Trim
  • Product Function: Exit Only
  • Product Group: Exit Devices and Trim
  • Product Size: 48"
  • Product Subgroup: Exit Devices - Vertical Rod
  • Product Type: Exit Devices - Concealed Vertical Rod
  • Series: 25 Series
  • Stile Type: Wide Stile
  • Subcategory: Concealed Vertical Rod
  • Trim Hardware: Less Trim

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Falcon Quality?

Falcon 25-C Series exit devices deliver professional-grade reliability with extruded aluminum construction rated for Grade 1 performance standards. ANSI A156.3-2001 certification and UL fire rating ensure code compliance and dependable operation. Engineered for demanding commercial applications where reliable egress performance is essential.

Product Specs

Product Group:
Exit Devices and Trim
Series:
25 Series
Product Subgroup:
Exit Devices - Vertical Rod
Product Type:
Exit Devices - Concealed Vertical Rod
Subcategory:
Concealed Vertical Rod
Latch Throw:
3/4"
Commercial/Residential:
Commercial
ANSI/BHMA:
ANSI A156.3-2001
Grade:
Grade 1
Stile Type:
Wide Stile
Lock Function:
Exit Only
Product Function:
Exit Only
Door Hand Direction:
Field Reversible
Door Thickness Range:
1-3/4"
Product Size:
48"
Trim Hardware:
Less Trim
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Falcon 25-C-EO 4 313AN – Frequently Asked Questions

1) Do I have to order the Falcon 25-C left or right hand?
No handing call is needed. The 25-C is field reversible, so one device covers both hands and you set it at install. That matters if you are stocking spares for a building with doors swinging both ways, since one part number covers the fleet.
2) Does the Falcon 25-C exit only device come with outside trim or a lever?
It ships less trim. Exit only means there is no outside operating trim at all, so the door is push-to-exit from the inside and has no key or lever entry from the outside unless you add a separate pull or a cylinder-operated device. If people need to get back in through that opening, this is the wrong function and you want a device that accepts trim, such as the Corbin Russwin ED5800, which is a wide stile concealed vertical rod listed as exit only or accepts trim.
3) Can I use a concealed vertical rod device like the Falcon 25-C on a pair of doors with no mullion?
Yes, that is what a vertical rod device is for. It latches into the head frame and the threshold rather than into a strike on the edge of the door, so a pair of doors can be secured with no center mullion. On the 25-C the rods run inside the door, so nothing is exposed on the face. If you would rather keep a mullion and use a simpler device, a rim device is the cheaper route; concealed rod is what you pick when you need the clear opening and a clean face.
4) Is the Falcon 25-C rated for a fire door?
It can be. The 25-C is offered non rated or fire rated, and the fire rated build carries a UL listed A or B label rating. Order the fire rated version, specify less dogging with it, and the device suits a labeled opening. The non rated build is fine for a standard egress door with no label.
5) Can the Falcon 25-C be tied into an access control system?
Yes, several ways. Electric latch retraction is offered as FSA fail safe or FSE fail secure, so you choose whether the opening releases or stays secure when power drops, which is usually driven by your fire alarm and code requirements. You can add an RX request to exit switch for the alarm panel, latchbolt monitoring (DM or LM) to report whether the door is actually latched, MEL motorized electric latch retraction for card reader control, or a built in exit alarm. Specify these when you order, since they are built into the device.
6) What else could I use instead of the Falcon 25-C on a wide stile door?
Several wide stile concealed vertical rod devices cover the same opening. The Corbin Russwin ED5800 is a Grade 1 wide stile unit for 1-3/4 inch doors, offered exit only or accepting trim. The DORMA 9100 is a Grade 1 wide stile pushpad device with a wider 1-3/4 to 2-1/4 inch thickness range, useful if your door is thicker than 1-3/4 inches, which the Falcon 25-C will not take. If the opening is a labeled fire door, the Adams Rite 3900 and the Sargent 12-MD8613 are both fire rated Grade 1 wide stile options, the Sargent in classroom function rather than exit only.
7) The Falcon 25-C is too wide for my narrow stile aluminum storefront door - what concealed vertical rod device should I use instead?
The Falcon 25-C is a wide stile device, so on a narrow stile aluminum door look at the Adams Rite 8600 Series, a Grade 1 non-fire-rated narrow stile concealed vertical rod device built for aluminum doors. Other narrow stile Grade 1 options for 1-3/4 inch doors include the Von Duprin 3347A and the Corbin Russwin ED4800. If you want a crossbar rather than a push pad on the narrow stile, the Von Duprin 5547 and 7547 and the Corbin Russwin ED7800 are crossbar concealed vertical rod devices.
8) For a fire-rated opening, what are the alternatives to the Falcon 25-C concealed vertical rod device?
The Falcon 25-C can be ordered fire rated or non rated, and carries a UL A or B label fire rating in the fire-rated build. Among comparable wide stile Grade 1 concealed vertical rod devices sold as fire rated, the Adams Rite 3600 Series is built for hollow metal doors and the Adams Rite 3900 Series carries a 1-1/2 hour rating. The Sargent 12-MD8613 is a fire-rated Grade 1 wide stile device in classroom function if the opening also needs outside key access. The Adams Rite 8500 Series is the same style of wide stile Grade 1 device but is non-fire-rated, so it is not a swap on a labeled door.
9) What is the Less Bottom Rod option on the Falcon 25-C and should I take it?
Less bottom rod deletes the bottom rod and floor strike, so the device latches only at the head. Crews specify it where the floor is uneven, where carts and wheelchairs would catch a floor strike, or where the bottom latch keeps fouling with dirt. It is a common choice in schools and hospitals. If you are on a fire rated opening, less bottom rod has to be confirmed against the listing for that specific fire door assembly before you commit.
10) What dogging choices are there on the Falcon 25-C, and which one works on a fire door?
Three: hex dogging, cylinder dogging, or less dogging. Hex dogging holds the push pad down with an allen wrench so the door stays push-pull during business hours. Cylinder dogging does the same with a key, which is what you want when you do not want maintenance staff dogging doors at will. Less dogging is the one to order on a fire rated opening, since a fire device cannot be held in the retracted position.
11) Does the Falcon 25-C meet Grade 1 for a high traffic commercial opening?
Yes. The 25-C is certified to ANSI A156.3-2001 Grade 1, which is the top durability grade for exit devices and the one normally specified on schools, hospitals, and other high cycle commercial openings. The case is extruded aluminum with a stainless steel push pad cover.
12) Will the Falcon 25-C latch into the strikes already in my frame?
The top and bottom latchbolts throw 3/4 inch. A vertical rod device needs its own top strike in the head frame and, if you keep the bottom rod, a floor strike, so it does not reuse an edge strike from a lockset. If you are swapping out an existing concealed rod device, check that the existing head prep and strike location line up with the Falcon template before you cut anything.
13) Why pick a concealed rod device like the Falcon 25-C over a surface vertical rod?
Both latch at the head and the floor, so both handle a pair of doors without a mullion. The difference is where the rods live. On the 25-C they run inside the door, which keeps the face clean, keeps the rods out of reach of vandals and carts, and is what most architects specify on a visible opening. Surface rods bolt to the door face, which is easier to retrofit and easier to service later, but exposed. Concealed rods need the door to be prepped for them, so they are a better fit on new doors than on an existing door that was never bored for them.
14) I am putting a concealed vertical rod device on a wood door - is the Falcon 25-C the right choice or is there a better fit?
The Falcon 25-C is specified for 1-3/4 inch doors and is field reversible, but the comparable built specifically for wood is the BEST Precision 2701 Series, a wide stile reversible concealed vertical rod device for wood doors. Note that the Von Duprin 7547 is listed as not wood door compatible, so it is not an alternate for that opening. The BEST Precision 2801 is another wide stile concealed vertical rod device to consider.
15) Is a BEST Precision 2601 a direct substitute for the Falcon 25-C exit-only device?
Not on a wide stile door. The BEST Precision 2601 is an exit-only, non-handed concealed vertical rod device built for narrow stile, while the Falcon 25-C is a wide stile device. The exit-only function matches, but the stile width does not, so the two prep to different door types. For a like-for-like wide stile exit-only device, the BEST Precision 2801 or the Corbin Russwin ED5800 are the closer looks.
16) What else comes in a 48 inch concealed vertical rod exit device besides the Falcon 25-C?
The Falcon 25-C in question is the 48 inch wide stile size. The CRL Jackson 1085 Series is also a 48 inch non-handed concealed vertical rod panic device in exit-only function with a wide stile design. The CRL Jackson 1285 push pad concealed vertical rod panic device is offered for narrow, medium or wide stile, which gives it a broader stile fit if the door widths on the job vary.
17) My opening is less bottom rod - does the Falcon 25-C do that, or do I need a different device?
The Falcon 25-C can be ordered less bottom rod, so it handles that opening directly without changing brands. If you are cross-shopping, the Von Duprin 3347A-EO is also an exit-only less bottom rod concealed vertical rod device, Grade 1 for 1-3/4 inch doors, though it is a narrow stile device rather than the Falcon's wide stile.
18) What finishes does the Falcon 25-C come in for matching the rest of my building?
Twelve finishes: 313AN dark bronze anodized, 643E aged bronze, US3 bright brass, US4 satin brass, US10 satin bronze, US15 satin nickel, US19 matte black, US26 bright chrome, US26D satin chrome, US28 aluminum anodized, US32 bright stainless, and US32D satin stainless. US26D and US32D are the two you will see most often on commercial openings, so those are the safe match if the rest of the building is already satin chrome or satin stainless.
19) What is the AX option on the Falcon 25-C?
AX is the accessible device option, which reduces the force needed to operate the push pad. Specify it on openings where you are working to accessibility requirements for operating force, common in healthcare, education, and public buildings.
