Falcon Falcon 25-R Series - Pull Trim - Rim Exit Device - 4 FT FAL-25-R-Pull-4FT

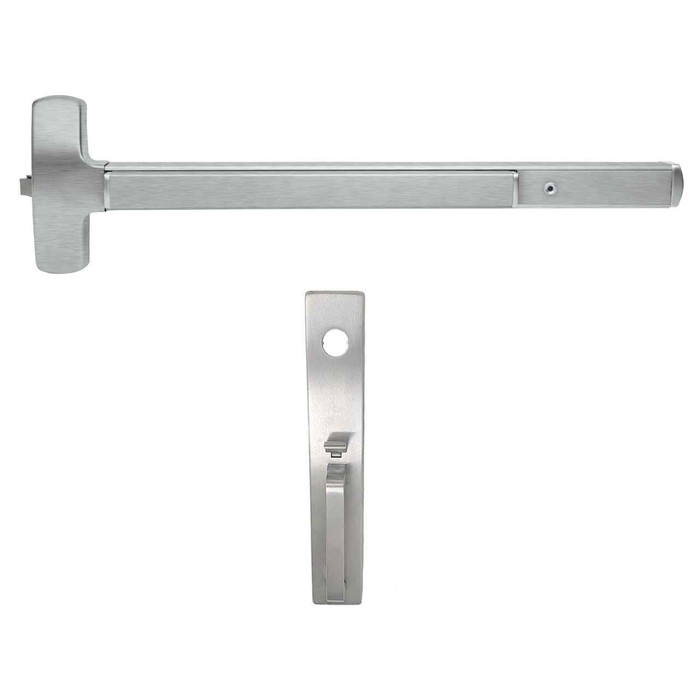

Falcon 25-R Series Pull Trim for Rim Exit Device - 48" Wide Stile Commercial Grade

(No reviews yet) Write a Review

Model: 25-R-TP 4 US26D
$1,992.00
$1,324.83
Selected Finish is
Selected Trim Function is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,992.00
$1,324.83
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Falcon 25-R Series Pull Trim for Rim Exit Device - 48" Wide Stile Commercial Grade

Professional Pull Trim Hardware for High-Traffic Commercial Applications

The Falcon 25-R Series Pull Trim is designed for use with Falcon rim exit devices in demanding commercial environments. This 48" pull trim features Grade 1 construction with 1-3/4" door thickness compatibility and 2-3/4" projection for wide stile applications. Built to ANSI A156.3-2001 standards, this non-handed trim provides reliable operation for offices, retail stores, assisted living facilities, and other high-traffic commercial buildings.

Professional Features & Benefits

  • 48" Length: Designed for 48" wide doors with wide stile construction for comprehensive commercial door coverage.
  • Grade 1 Performance: ANSI A156.3-2001 certified construction delivers professional-grade durability for high-traffic commercial applications.
  • Wide Stile Compatibility: Engineered for wide stile door applications with 2-3/4" projection and 1-3/4" door thickness range.
  • Heavy-Duty Construction: Extruded aluminum construction provides greater strength and impact resistance for demanding commercial use.
  • Streamlined Design: No exposed screws or rivets on the back of the device for clean lines and attractive installation appearance.
  • Versatile Trim Input: One trim input design provides maximum versatility and ability to use various trim configurations with 25-R Series rim devices.
  • Commercial Applications: Ideal for offices, banks, assisted living facilities, retail stores, and other commercial buildings with constant traffic demands.

Technical Specifications

  • ANSI/BHMA: ANSI A156.3-2001
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Door Hand Direction: Non-Handed
  • Door Strike: 299 Strike standard
  • Door Thickness Range: 1-3/4"
  • Fasteners: Sheet metal screws and machine screws standard
  • Grade: Grade 1
  • Latch Throw: 3/4"
  • Lock Function: Dummy/Pull Trim
  • Product Category: Exit Devices and Trim
  • Product Function: Pull Trim
  • Product Group: Exit Devices and Trim
  • Product Model: 25-R-Pull-4FT
  • Product Projection: 2-3/4"
  • Product Size: 48"
  • Product Subgroup: Exit Devices - Rim
  • Product Type: Exit Devices - Rim
  • Series: 25 Series
  • Stile Type: Wide Stile
  • Subcategory: Rim Exit Devices
  • Trim Hardware: Pull Trim
  • Wood Door Compatible: No

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness of 1-3/4" and wide stile compatibility for this pull trim application.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door surfaces for proper trim alignment with rim exit device.
  3. Prepare door by drilling required holes per manufacturer specifications using appropriate fasteners including sheet metal screws and machine screws as standard.
  4. Install pull trim hardware and secure to door per manufacturer torque specifications ensuring proper alignment with rim exit device mechanism.
  5. Adjust trim components for proper alignment and smooth operation with the rim exit device throughout the full range of motion.
  6. Test trim operation to verify proper function with rim exit device and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Falcon Quality?

Falcon 25-R Series pull trim hardware delivers professional-grade reliability with extruded aluminum construction and Grade 1 ANSI A156.3-2001 certification for demanding commercial applications. The streamlined design with no exposed screws or rivets provides both durability and attractive appearance for high-traffic installations. Engineered for commercial environments where dependable performance and professional appearance are essential.

Product Specs

Product Group:
Exit Devices and Trim
Series:
25 Series
Fasteners:
Sheet metal screws and machine screws standard
ANSI/BHMA:
ANSI A156.3-2001
Product Subgroup:
Exit Devices - Rim
Product Type:
Exit Devices - Rim
Subcategory:
Rim Exit Devices
Latch Throw:
3/4"
Commercial/Residential:
Commercial
Grade:
Grade 1
Stile Type:
Wide Stile
Lock Function:
Dummy/Pull Trim
Wood Door Compatible:
No
Product Model:
25-R-Pull-4FT
Product Function:
Pull Trim
Door Hand Direction:
Non-Handed
Door Thickness Range:
1-3/4"
Product Size:
48"
Product Projection:
2-3/4"
Trim Hardware:
Pull Trim
Door Strike:
299 Strike standard
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Falcon 25-R-TP 4 US26D – Frequently Asked Questions

1) Does the Falcon 25-R pull trim lock the door, or is it just a pull?
As supplied in dummy/pull trim function it does not retract the latch; it is a pull for the outside of the door while the rim device handles egress from the inside. If you need outside entry, the trim function choices include NL night latch (512-NL), TP thumb piece (512TP) and TP-BE thumb piece with blank escutcheon (512TP-BE), alongside DT dummy trim (512DT).
2) Will a Falcon 25-R rim device latch into my existing strike?
The 25-R uses a 3/4 inch latch throw and ships against the 299 strike as standard. If your frame is prepped for a different rim strike, plan on changing the strike or verifying the prep matches the 299 footprint before install.
3) Is the Falcon 25-R wide stile or narrow stile, and how much does it stick out from the door?
Wide stile. Projection off the face of the door is 2-3/4 inches, which matters where the door swings past a wall return or an adjacent leaf. On a narrow aluminum stile you want a narrow stile device instead, such as the Corbin Russwin ED4200 or the TownSteel ED3700.
4) Can I get the Falcon 25-R fire rated, and what dogging options are there?
Both non-rated and fire rated builds are offered. Dogging choices are hex dogging, cylinder dogging, or less dogging. Fire rated openings cannot be dogged, so pair a fire rated build with less dogging.
5) What electrified options can I specify on the Falcon 25-R for an access control job?
Electric locking is available as FSA fail safe or FSE fail secure, with an optional RX request to exit switch. Device options add DM or LM latchbolt monitoring, MEL motorized electric latch retraction, or EA exit alarm. Fail safe unlocks the outside trim on power loss, fail secure keeps it locked; egress from inside is always free either way.
6) What is the closest equivalent to the Falcon 25-R 48 inch rim exit device from another manufacturer?
For a 48 inch wide stile rim device in Grade 1, the Corbin Russwin ED3200 is the nearest match: it is a Grade 1 wide stile 48 inch crossbar rim exit device rated for 1-3/4 inch doors, the same door thickness the Falcon 25-R is built for. The Dormakaba 9300A is another 48 inch Grade 1 wide stile rim device, exit only, with a wider 1-3/4 inch to 2-1/4 inch door thickness range. The practical difference is actuation and trim: the Falcon 25-R carries pull trim in dummy, night latch, thumb piece and thumb piece with blank escutcheon functions, while the ED3200 is a crossbar device supplied as a panic device only and the 9300A is exit only.
7) My door is aluminum storefront with a narrow stile - what should I use instead of the Falcon 25-R?
The Falcon 25-R is built for wide stile doors with a 2-3/4 inch projection, so it will not suit a narrow stile storefront rail. Narrow stile Grade 1 rim devices include the Corbin Russwin ED4200, a 36 inch narrow stile device for 1-3/4 inch doors that is exit only and accepts trim, and the TownSteel ED3700, a 36 inch Grade 1 heavy duty narrow stile rim device. Adams Rite also offers the 8800 Series 30 inch narrow stile rim device with starwheel interlocking for 1-3/4 inch to 2-1/4 inch doors.
8) Can I use an SDC switch bar or the Securitron EMB in place of the Falcon 25-R?
Not as a direct swap. The Falcon 25-R is a mechanical rim exit device with a 3/4 inch latch throw working against a 299 strike, so it latches the door on its own. The SDC MSB550 is a mechanical switch bar that releases an electromagnetic lock, and the SDC PSB560 SureExit is a pressure sense bar - both signal a separate locking device rather than carrying a latch. The Securitron EMB is an electromechanical exit bar listed for 2-1/4 inch doors, against the 1-3/4 inch the Falcon is prepped for. Use those only where the opening is designed around a mag lock or electrified bar.
9) Is Falcon 25-R pull trim handed, or do I need to specify left and right?
Non-handed. One part covers both left and right hand openings, which is why property managers standardizing a building on Falcon 25 Series exit hardware can stock a single trim rather than a pair of handed SKUs.
10) Is the Falcon 25 Series exit hardware Grade 1, and to which standard?
Grade 1, certified to ANSI A156.3-2001. That is the exit device standard institutional and MRO specs normally call out for schools, healthcare and government openings running constant traffic.
11) Is there a frame material option I have to pick with the Falcon 25-R?
Yes, an optional frame material selection of ALF for aluminum frame or WDF for wood frame. This covers the frame the strike mounts to; the door leaf itself still must be non-wood for this device.
12) I need a 48 inch rim panic device that is fire rated - is the Falcon 25-R the right pick?
The Falcon 25-R can be ordered in a fire rated configuration, so it stays on the table for a rated opening. If you want alternates, the Marks USA M9900F 48 inch rim panic device is fire rated and exit only with a panic protector end cap, and the Dexter ED1000-R-F-EO is a Grade 1 fire rated rim exit device. Note that fire rated devices are ordered without dogging, so the hex and cylinder dogging choices on the Falcon apply to the non-rated build.
13) Is there a lighter duty alternative if I do not need Grade 1 on a 48 inch door?
Yes. The Cal-Royal 5500 is a 48 inch rim exit device with a push bar built to Grade 2 and rated heavy duty, and the Cal-Royal A9820 is a 48 inch heavy duty exit only rim device also listed at Grade 2. The Falcon 25-R is Grade 1 to ANSI A156.3-2001, so if your spec sheet calls out Grade 1 the Cal-Royal units will not satisfy it.
14) What is the difference between the Falcon 25-R with pull trim and a device sold as exit only?
The Falcon 25-R here is supplied with outside pull trim, so the exterior gets a pull in dummy, night latch, thumb piece or thumb piece with blank escutcheon form. Devices listed as exit only, such as the Sargent 2828 Grade 1 reversible wide stile rim device for 48 inch minimum door width, the Sargent 3828 standard push bar version, and the CRL Jackson 1095 48 inch crossbar rim panic device, are furnished as the device alone with no outside operating trim. Choose exit only when the door is egress out with no re-entry from the exterior.
15) I need electrified latch retraction and request to exit on a wide stile door - how does the Falcon 25-R compare to other options?
The Falcon 25-R can be configured with motorized electric latch retraction, a request to exit switch, fail safe or fail secure electric locking, and latchbolt monitoring. Comparable electrified wide stile devices include the Sargent 12-8810-LTRIM, a fire rated Grade 1 wide stile rim device supplied with RX and MELR in a dummy function, and the SDC S6136 Spectra, a 36 inch electrified architectural rim device with a 4 inch wide stile for doors 1-3/4 inch to 2 inch. The Falcon is the one to stay with if you need the 48 inch length.
16) What finishes does the Falcon 25-R pull trim come in to match the rest of my doors?
Twelve finishes: 313AN dark bronze anodized, 643E aged bronze, US10 satin bronze, US15 satin nickel, US19 matte black, US26 bright chrome, US26D satin chrome, US28 aluminum anodized, US3 bright brass, US32 bright stainless, US32D satin stainless, and US4 satin brass. US26D and US32D are the usual commercial defaults for matching existing building hardware.
17) Do I need to order fasteners separately for the Falcon 25-R trim?
No. Sheet metal screws and machine screws come standard, so the trim mounts with what is in the box once the door is prepped from the manufacturer template.
