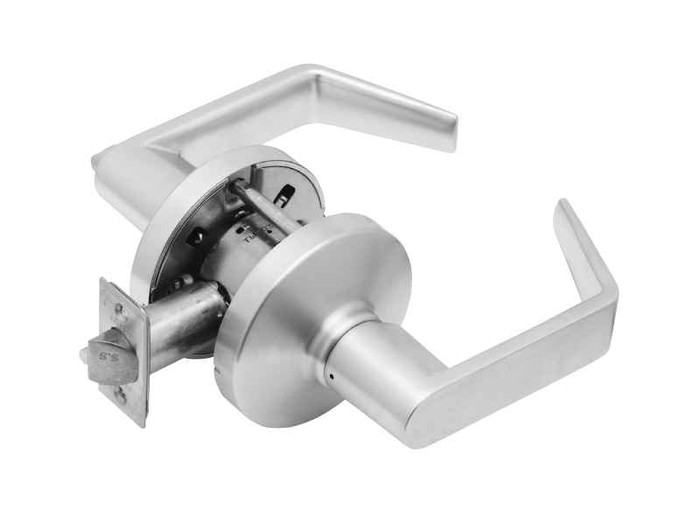

Falcon K301 Grade 1 Privacy Cylindrical Lock with Non-Handed Levers

Falcon K301 Grade 1 Privacy Cylindrical Lock with Non-Handed Levers

Professional Privacy Lock Solution for Commercial Applications

The Falcon K301 delivers Grade 1 certified performance in a privacy lock configuration designed for commercial bed/bath applications. This non-keyed cylindrical lock accommodates door thickness from 1-3/8" to 2-1/4" with a standard 2-3/4" backset and features UL10C 3-hour fire rating certification. Built with heavy-duty brass or steel construction and stainless steel springs, the K301 provides reliable operation in high-traffic commercial environments.

Professional Features & Benefits

• Door Compatibility: Accommodates door thickness from 1-3/8" to 2-1/4" with 2-3/4" backset for versatile installation requirements.
• Heavy-Duty Construction: Brass or steel substrate with zinc plating and dichromate coating provides rust resistance and long-term durability in demanding applications.
• Grade 1 Certified Performance: ANSI/BHMA Grade 1 certification ensures reliable operation under heavy-duty commercial use conditions.
• Fire-Rated Safety: UL10C 3-hour A label certification provides code-compliant fire protection for commercial applications.
• Clutching Lever Design: Allows lever movement when locked without unlatching the door, preventing chassis damage from forced operation.
• Through-Bolt Security: Four screws through-bolted construction provides added strength and tamper resistance.
• Non-Handed Installation: Non-handed levers simplify field installation and reduce inventory requirements.
• Manufacturer Warranty: 10-year warranty provides long-term protection and confidence in product reliability.

Technical Specifications

• ANSI/BHMA: F76
• Backset (Distance): 2-3/4"
• Commercial/Residential: Commercial
• Department: Door Hardware
• Door Hand Direction: Non-Handed
• Door Thickness Range: 1-3/8" to 2-1/4"
• Duty Level: Heavy Duty
• Electronic: No
• Fire Rating: Yes
• Grade: Grade 1
• Keyed: No
• Keyed Function: Non-Keyed
• Lock Function: Privacy/Bed/Bath
• Lock Type: Cylindrical
• Product Attribute: Cylindrical Locks
• Product Category: Mechanical Locks
• Product Function: Privacy/Bed/Bath
• Product Group: Mechanical Locks
• Product Model: K301
• Product Subgroup: Bored Locksets
• Product Substrate: Brass or Steel, Zinc plated and dichromated for rust resistance. Springs are Stainless Steel.
• Product Type: Leversets
• Series: K Series
• Standard Latch: 1-1/8" x 2-1/4", Square corner faceplate, 1" housing diameter, 1/2" Throw, 2-3/4" backset
• Standard Strike: 1-1/4" x 4-7/8", ANSI, Square curved lip corner, no box
• Subcategory: Cylindrical Locks
• UL Listing Type: UL Listed (3 Hour A Label)

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness range of 1-3/8" to 2-1/4" and 2-3/4" backset compatibility.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door surfaces for proper alignment.
3. Prepare door by drilling required holes per manufacturer specifications for cylindrical lock installation.
4. Install latch assembly with 1-1/8" x 2-1/4" faceplate and secure strike plate to frame using provided hardware.
5. Mount lock chassis through door using four through-bolt screws for maximum security and stability.
6. Test privacy function operation to verify proper locking and unlocking from interior side and smooth lever operation throughout full range of motion. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Healthcare Facility Patient Rooms
• Educational Institution Restrooms
• Hotel and Hospitality Guest Rooms
• Multi-Tenant Residential Properties
• Government and Municipal Buildings
• Industrial Facility Break Rooms

Why Choose Falcon Quality?

Falcon K301 cylindrical locks deliver professional-grade reliability with heavy-duty brass or steel construction rated for Grade 1 commercial applications. The 10-year manufacturer warranty and UL10C 3-hour fire rating certification provide added confidence for demanding commercial installations. Engineered with clutching lever design and through-bolt security features, the K301 ensures dependable performance in high-traffic environments where reliable privacy function is essential.
