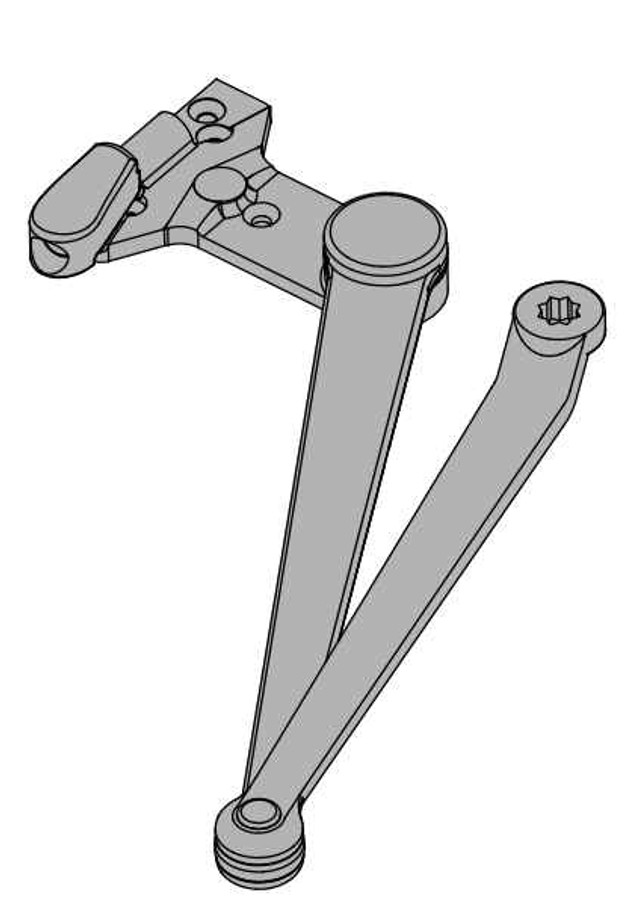

Falcon SC60A-3077SS Spring-n-Stop Arm for SC60A Series Door Closers

Heavy-Duty Replacement Arm Assembly for High-Traffic Applications

The Falcon SC60A-3077SS Spring-n-Stop Arm is an optional replacement component designed specifically for SC60A Series door closers. This non-handed, extra heavy-duty forged parallel arm features an integral spring stop and non-adjustable forearm assembly, engineered for high volume traffic or potentially abusive installation conditions where standard arms may not provide adequate durability.

Professional Features & Benefits

  • Extra Heavy-Duty Construction: Forged parallel arm design provides exceptional strength and durability for demanding commercial applications.
  • Integral Spring Stop: Built-in spring stop mechanism eliminates the need for separate components and ensures consistent door control performance.
  • Non-Adjustable Forearm Assembly: Fixed configuration reduces maintenance requirements and prevents tampering in high-traffic environments.
  • Non-Handed Design: Universal configuration works with both left-hand and right-hand door installations for simplified inventory management.
  • Abuse-Resistant Engineering: Specifically designed to withstand potentially abusive conditions and high-volume traffic applications.
  • SC60A Series Compatibility: Direct replacement component for existing SC60A Series door closers ensuring proper fit and function.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Parts and Accessories Type: Replacement Parts
  • Product Attribute: Parts and Accessories
  • Product Category: Door Controls
  • Product Group: Door Controls
  • Product Subgroup: Parts and Accessories
  • Product Type: Door Closer Arms
  • Series: SC60A Series

Installation & Operation

This replacement arm assembly is designed for use with compatible SC60A Series door closers. Refer to the parent device installation instructions and manufacturer documentation for proper integration. Ensure compatibility with existing hardware before installation.

Professional Applications

  • High-Traffic Commercial Buildings
  • Educational Facilities with Heavy Door Usage
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Government and Municipal Buildings
  • Multi-Tenant Residential Properties

Why Choose Falcon Quality?

Falcon door closer components deliver professional-grade reliability with forged construction engineered for demanding commercial applications. The SC60A-3077SS spring-n-stop arm provides enhanced durability specifically designed for high-volume traffic and potentially abusive conditions where dependable performance is essential.

Manufacturer Resources

Falcon Closers Catalog

Product Specs

Product Group:
Door Controls
Product Subgroup:
Parts and Accessories
Commercial/Residential:
Commercial
Product Type:
Door Closer Arms
Series:
SC60A Series
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Product Category:
Door Controls
Department:
Door Hardware

Falcon SC60A-3077SS AL – Frequently Asked Questions

1) Will the Falcon SC60A-3077SS arm fit any door closer, or only the SC60A Series?
It's a replacement arm for Falcon SC60A Series closers only. The spring-n-stop arm assembly mounts to the SC60A closer body, so it isn't a universal arm for other Falcon families or other brands. If your closer body is something else, match the arm to that series instead.
2) Do I need to order a left-hand or right-hand version of this Falcon spring-n-stop arm?
Neither. The SC60A-3077SS is non-handed, so the same arm works on left-hand and right-hand openings. Property managers stocking spares only need one part number across the building.
3) What does a spring-n-stop arm do that a standard closer arm doesn't?
It builds the door stop into the arm. The SC60A-3077SS is a forged parallel arm with an integral spring stop, so the arm itself limits how far the door swings and cushions the stop. That removes the need for a separate overhead or floor stop, which matters where a wall stop isn't practical or keeps getting torn off.
4) Does this arm hold the door open, or just stop it?
Stop only. The SC60A-3077SS is a spring stop arm with no hold-open function. If you need the door to stay open at a set angle, look at a hold-open arm instead, such as the Sargent 25-CPSH heavy-duty hold-open parallel arm with compression stop, or the Sargent 25-H hold-open arm for standard and top jamb mount.
5) What is the closest equivalent to the Falcon SC60A-3077SS spring stop arm if the closer on the door is a Sargent 351 or 281?
The Falcon SC60A-3077SS is a forged parallel arm with an integral spring stop built for SC60A Series closers, so it will not carry over to a Sargent body. For a Sargent 351 or 281 closer, the Sargent 25-CPS is the matching heavy duty parallel arm with a compression stop, and the Sargent 25-CPSH is the same compression stop arm with hold-open added. Both are Grade 1 heavy duty. The functional idea is the same - stop the door at the arm instead of relying on a separate overhead stop - but the Falcon unit uses a spring stop and the Sargent units use a compression stop.
6) I need the door to stay open, not just stop. What arm should I use instead of a spring stop arm?
A spring stop arm like the Falcon SC60A-3077SS stops the swing but does not latch the door open. For hold-open, the Sargent 25-CPSH combines a compression stop with hold-open on 351 and 281 closers, the Sargent 25-H is a hold-open arm for 351 and 281 in regular and top jamb mount, and on LCN bodies the 1250-3049/PA is a non-handed hold-open arm assembly with a parallel arm shoe and adjustable hold open while the 4010-3049 is a hold-open arm with an adjustable elbow. Match the arm to the closer family you already have on the door.
7) Is the LCN 1260-3077 the same arm as the Falcon SC60A-3077SS since the part numbers both end in 3077?
No. The shared 3077 digits are coincidence across two manufacturers' numbering. The LCN 1260-3077 is a regular arm with a parallel arm bracket for 1260 Series closers, with no stop feature. The Falcon SC60A-3077SS is an extra heavy-duty forged parallel arm with an integral spring stop and a non-adjustable forearm, built for SC60A Series closers. Different closer body, and the SS suffix is what carries the stop.
8) Is this Falcon arm worth it for a high-abuse door like a school corridor or a loading area?
That is exactly what it's built for. The extra heavy-duty forged construction and non-adjustable forearm are intended for high volume traffic or potentially abusive conditions where a standard arm won't hold up. Schools, healthcare, retail, warehouses and multi-tenant residential are the typical applications.
9) Can I adjust the stop position on the SC60A-3077SS forearm?
No. The forearm assembly is non-adjustable, so the stop angle is fixed by the arm and the mounting position. That's deliberate for high-traffic doors, it cuts maintenance and keeps people from tampering with the setting. If you need a field-adjustable stop point, this isn't the arm.
10) What is the equivalent stop arm from another brand if I'm not running Falcon closers?
Arms are series-specific, so match the closer you have. For Sargent 351 or 281 closers, the 25-CPS is the heavy-duty parallel arm with compression stop. On LCN closers, the arm follows the body: the 1260-3077 regular arm with parallel arm bracket suits 1260 Series, and the 4000T-3077T is the standard arm component for 4000T Series. None of those bolt onto a Falcon SC60A.
11) Is the SC60A-3077SS a parallel arm or a regular arm mount?
Parallel arm. It mounts on the push side with the arm running parallel to the door face, which is the usual commercial arrangement and the one that keeps the arm tucked against the door instead of projecting into the opening. If your closer is set up for regular (pull side) mounting, this arm won't apply.
12) Can I order a spring stop arm to fix a door that has no closer on it at all?
No - the Falcon SC60A-3077SS is a replacement part, an arm assembly that mounts to an existing SC60A Series door closer body. If there is no closer on the opening, you need a complete unit: the Sargent 25-CPS is a heavy duty Grade 1 parallel arm closer with compression stop, and the Sargent 1431-CPS TB EN is a heavy duty Grade 1 surface door closer supplied with parallel arm and compression stop.
13) The opening does not need a stop at the arm - what is the plainer replacement arm?
Where an overhead stop or wall bumper already controls the swing, a standard arm is the simpler choice. On LCN closers that is the 1260-3077 regular arm with parallel arm bracket for 1260 Series bodies, or the 4000T-3077T standard arm replacement component for 4000T Series. The Falcon SC60A-3077SS is the heavier route, with a forged body and integral spring stop intended for high volume traffic or potentially abusive conditions on SC60A Series closers.
14) My closer is top jamb mounted, not parallel arm. Does the Falcon spring stop arm work?
The Falcon SC60A-3077SS is a parallel arm assembly, so it is intended for parallel arm mounting on SC60A Series closers. For a top jamb application on a Sargent 351 or 281 closer, the Sargent 25-H hold-open arm is listed for standard and top jamb mount. Confirm the mounting orientation of the closer body before ordering an arm.
15) What finishes does the Falcon SC60A-3077SS spring-n-stop arm come in?
Four: 689 aluminum, 695 dark bronze, 696 brass, and 622 matte black. Pick the one matching the closer body already on the door so the replacement arm doesn't stand out on the opening.
16) Do any of these arms need to be ordered handed?
The Falcon SC60A-3077SS is non-handed, so one part covers both left-hand and right-hand doors and you only stock a finish, not a hand. The LCN 1250-3049/PA hold open arm assembly is likewise a non-handed design. Non-handed arms simplify carrying spares across a building where openings swing both ways.
