OVERVIEW

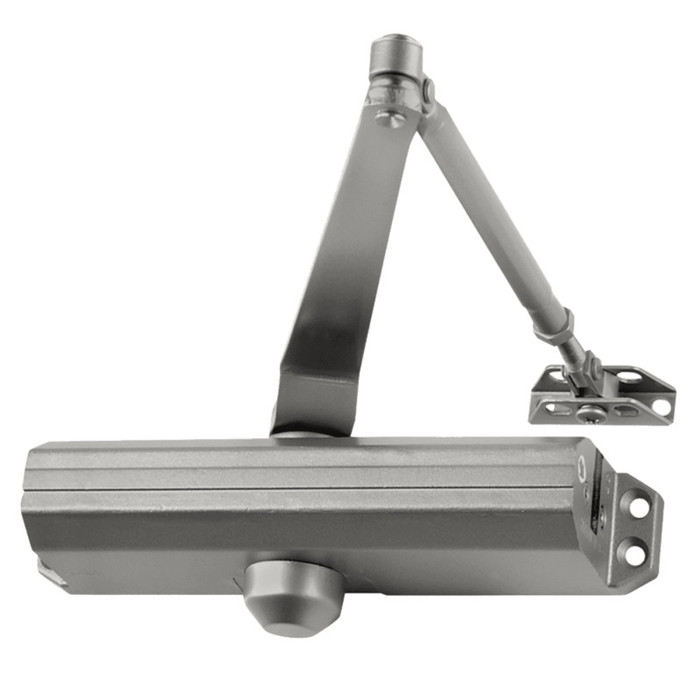

The SC60A Series is designed for light- to medium-duty applications, like a small business or office building. It is intended for interior use with aluminium storefronts and mixed-use complexes. It mounts three ways and features the most common hole pattern in the door control industry, making it ideal for a variety of retrofit needs.
The SC60A Series features a single-piece cast aluminium body and a 1-3/8” heat-treated steel piston, a heat-treated pinion and staked valves. The SC60A Series standard door closer is certified ANSI/BHMA A156.4 Grade 1, is UL listed and is backed by a 10-year warranty.
FEATURES & BENEFITS
Body construction
- Single-piece cast aluminium body
- Heat-treated steel pinion and piston
- Industry common hole pattern that can retrofit to Norton 1600
Quality and durability
- UL 10C approved fluid
- Separate adjustable general speed, latch speed and backcheck
- 10-year warranty
Installation
- Universal non-handed
- Universal screw pack
- Adjustable spring sizes 1-5
SPECIFICATIONS
- UL listed and compliant with the UL 10C and UBC 7-2 (1997) fire test
- Certified ANSI/BHMA A156.4 Grade 1
- The SC61A meets the American Disabilities Act (ADA) and ANSI A117.1
DESIGNS & FINISHES
- Available in:
- Aluminium
- Dark bronze
- Matte black*
- Brass
NOTE: Matte Black (622) is only available on standard cylinders and RW/PA, HW/PA, DS and HD
- Optional slim line cover
MOUNTING/ARM OPTIONS
The SC60A Series mounts hinge pull side, push side top jamb, push side parallel arm, heavy duty parallel arm and hold open parallel arm.
Visit the SC60A Series catalog pages for mounting details, arm options and accessories.
RESOURCES & DOWNLOADS
Falcon Closers Catalog
Falcon SC60A Data Sheet
Multi-Family Suiting Solutions
REFERENCE NOTES:
1) SC61 HD, DS/HO, SS, and SS/HO are not available in matte black.
2) SC61/SC61A ships standard as LESS cover.
3) SC61/SC61A is fully adjustable 1-5
REFERENCE NOTES:
4) SC61, SS, and SS/HO arms are not available in matte black.
5) Matte Black finish will transition to SC61A in Q3 2017.
6) Matte Black and Dark Bronze Closers share the same screw finish.
