OVERVIEW

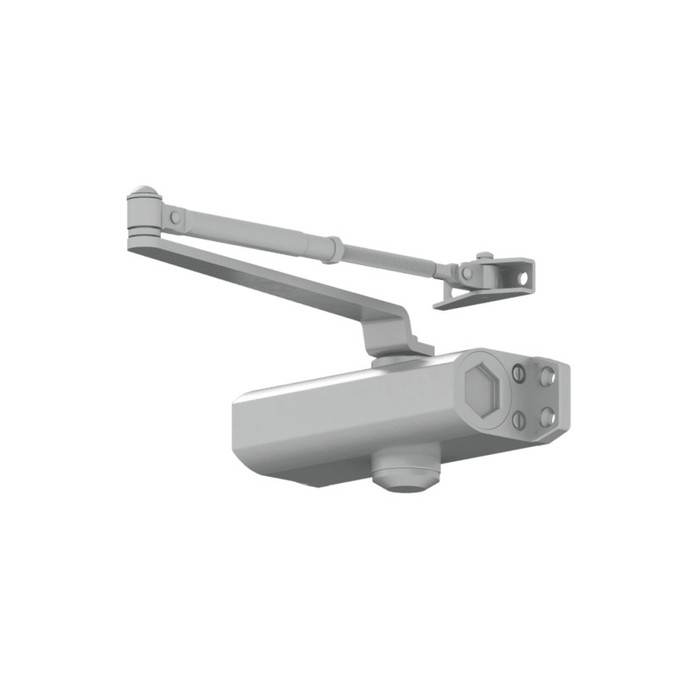

Designed for light-duty residential and interior applications, the SC90A Series closers deliver a smooth and reliable performance. A pre-set spring size provides easy installation. The closer has three mounting options and is non-handed for left- and right-swinging doors for versatility. A single-piece cast aluminum body minimizes leaks, the most common door control failure. Materials include sturdy heat-treated steel pistons and heat-treated pinions.
The SC90A Series includes fixed sizes 1, 3 and 4. Specific models available are the SC91A, SC93A, and SC94A. These closers are ANSI/BHMA A156.4 Grade 3 certified for durability and backed by a 10-year warranty.
FEATURES & BENEFITS
Body construction
- Single-piece cast aluminum body
- Comes standard with adjustable backcheck; optional no backcheck available
- Heat-treated pinion and steel piston
Quality and durability
- SC93A/94A is UL listed and compliant to UL10C and UBC 7-2 (1997)
- Separate adjustable general speed and latch speed
- 10-year warranty
Installation
- Universal non-handed for left or right swinging doors
- Universal screw pack comes standard with the SC93A and SC94A
- Fixed spring sizes 1, 3 and 4
SPECIFICATIONS
- SC93A and SC94A are UL listed and compliant with the UL 10C and UBC 7-2 (1997) fire test
- SC90A Series is certified ANSI/BHMA A156.4 Grade 3
- The SC91 meets ADA and ANSI A117.1
DESIGN AND FINISHES
- Available in aluminum and dark bronze
- Optional slim line cover available
For more information on the finishes and cover, view the data sheet or catalog.
MOUNTING/ARM OPTIONS
- The SC90A closer series mounts hinge side, top jamb, or parallel arm when the RW/PA arm is specified
- Visit the Falcon Door Controls catalog for SC90A Series mounting details, arm options and accessories.
DOWNLOADS & RESOURCES
Falcon Closers Catalog
Falcon SC90A Series Data Sheet
Multi-Family Suiting Solutions
REFERENCE NOTES:
1) SC90 series ship standard as LESS Cover.
2) Less Back Check option is available on SC91 RWPA AL, SC93 RWPA AL, SC94 RWPA AL & DKB at $10 Less List.
