Falcon SC71A Series Heavy-Duty...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$466.00
$197.85

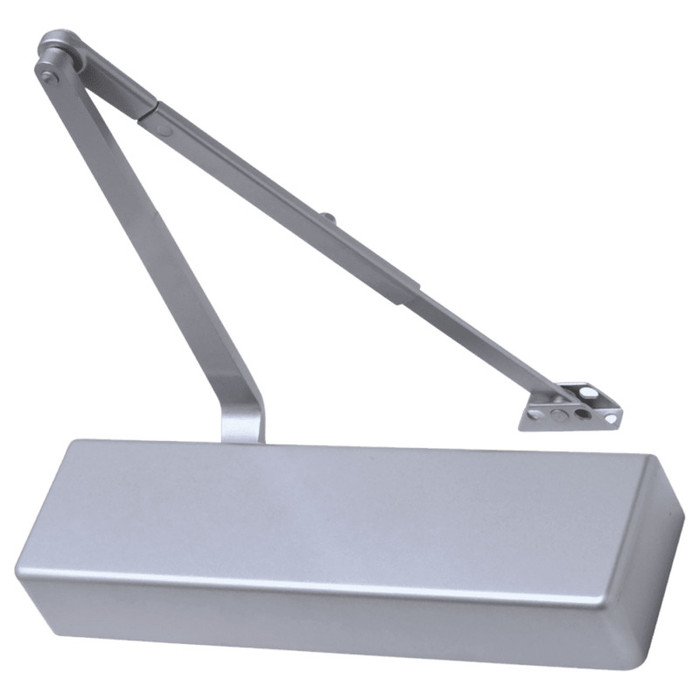

Falcon SC71A Series Heavy-Duty Surface-Mount Door Closer in Aluminum (689) finish with parallel arm, cast aluminum body, white background product view

Falcon SC71A Series Heavy-Duty Surface-Mount Door Closer

(No reviews yet) Write a Review

Model: SC71A RWPA 689
Selected Finish is
Selected Arm is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$466.00
$197.85
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Falcon SC71A Series Heavy-Duty Surface-Mount Door Closer

The Falcon SC71A is a Grade 1 commercial surface-mount door closer built for high-traffic institutional and commercial applications. Its single-piece cast aluminum body houses a 1-1/2" diameter heat-treated forged steel piston and double heat-treated pinion — the same heavy-duty internals specified for schools, hospitals, government buildings, and multi-family properties where a closer is expected to perform for decades, not years. Non-handed design installs on left- or right-swinging doors without modification. Backed by a 10-year manufacturer warranty.

Key Features

  • Single-piece cast aluminum body with 1-1/2" heat-treated forged steel piston and double heat-treated pinion
  • ANSI/BHMA A156.4 Grade 1 certified — the highest performance grade for commercial door closers
  • Adjustable spring sizes 1–6 with separate general speed, latch speed, and backcheck controls
  • Non-handed (universal) — mounts on left or right swinging doors; common industry hole pattern with self-reaming and tapping screws included
  • UL listed and compliant with UL 10C and UBC 7-2 (1997) fire test standards; UL-approved cover for fire-rated door assemblies
  • ADA and ANSI A117.1 compliant — meets barrier-free accessibility requirements
  • BAA Qualified — eligible for Buy American Act procurement
  • Standard non-handed full plastic cover included; available in 689 Aluminum, 622 Matte Black, 695 Dark Bronze, and 696 Brass

Arm Configurations

The SC71A is available in eight arm configurations to match your door and frame conditions:

  • RWPA — Regular Arm with PA Bracket (standard parallel arm mount)
  • HWPA — Hold-Open Arm with PA Bracket
  • HDPA — Heavy Duty Parallel Arm
  • FA — Forged Parallel Arm
  • FAHO — Hold-Open Forged Parallel Arm
  • DS — Dead Stop Parallel Arm
  • DSHO — Hold-Open Dead Stop Parallel Arm
  • SS — Spring Stop Arm
  • SSHO — Hold-Open Spring Stop Arm

Select your arm type and finish using the options above. Refer to the Falcon SC70A Series Data Sheet (linked below) for door size ranges, stile width minimums, and template dimensions by arm configuration.

Certifications & Compliance

  • ANSI/BHMA A156.4 Grade 1
  • UL Listed — UL 10C and UBC 7-2 (1997) fire test standards
  • ADA Compliant / ANSI A117.1
  • BAA Qualified

Technical Specifications

  • Body: Single-piece cast aluminum
  • Piston: 1-1/2" diameter heat-treated forged steel
  • Pinion: Double heat-treated
  • Spring Sizes: Adjustable 1–6
  • Handing: Non-handed (universal)
  • Duty Level: Heavy Duty
  • Grade: Grade 1
  • Application: Commercial
  • Warranty: 10 years

Typical Applications

  • Commercial office buildings and corporate campuses
  • K–12 schools, colleges, and universities
  • Hospitals, clinics, and healthcare facilities
  • Government and municipal buildings
  • Multi-family and mixed-use residential properties
  • Retail, hospitality, and industrial facilities

Product Specs

Subcategory:
Surface Mounted Closers
Series:
SC70A Series
Duty Level:
Heavy Duty
ADA Compliant:
Yes
BAA Qualified:
Yes
Grade:
Grade 1
Product Group:
Door Controls
Product Subgroup:
Door Closers - Surface Mounted
Product Type:
Surface Mounted Door Closers
Commercial/Residential:
Commercial
Tags:
falcon sc71a, falcon sc71, falcon sc71a door closer, sc71a ss, sc71a closer, falcon sc71 closer, falcon sc71 ss, sc71, sc71a
Door Hand Direction:
Non-Handed
Product Category:
Door Controls
Product Substrate:
Aluminum
Department:
Door Hardware

Falcon SC71A RWPA 689 – Frequently Asked Questions

1) What door sizes and weights does the Falcon SC71A series handle?
The SC71A series is designed for heavy-duty applications on doors up to 48 inches wide and 250 pounds. Verify your specific door dimensions and weight before ordering to ensure proper operation.
2) Is this closer suitable for exterior doors?
Yes, the cast aluminum construction provides excellent weather resistance for exterior applications. The heavy-duty design handles wind loads and frequent use common in commercial exterior doors.
3) How do I determine the correct handing for installation?
Stand on the pull side of the door. If hinges are on your right, order right-hand. If hinges are on your left, order left-hand. The closer mounts on the pull side of the door.
4) What finishes are available for the SC71A series?
Common finishes include aluminum, bronze, and painted options. Check the specific model number for available finishes. Different finishes may affect lead times.
5) What power size classification does this closer provide?
The SC71A series typically provides Size 4-6 power depending on the specific model. This covers most commercial door applications. Verify the exact power rating for your specific model number.
6) Does this closer meet ADA and building code requirements?
The SC71A series includes adjustable closing and latching speeds to help meet ADA requirements. Check local building codes for specific compliance requirements in your area.
7) What mounting template should I use for installation?
Use the manufacturer's template specific to the SC71A series. Standard surface mount templates may not align properly. Contact us if you need the correct template for your model.
8) Are replacement parts available for the SC71A series?
Common replacement parts like arms, shoes, and adjustment screws are typically available. Keep your model number for ordering correct parts. Browse our door hardware section for compatible components.
9) How do I adjust the closing speed on this closer?
The SC71A features separate adjustment valves for sweep and latch speeds. Turn clockwise to slow, counterclockwise to speed up. Make small quarter-turn adjustments and test operation.
10) Can this closer be used with electromagnetic hold-open devices?
Yes, the SC71A series is compatible with magnetic hold-open devices when properly coordinated. Ensure the closer power is adequate to overcome the magnetic force during fire alarm release.
11) What are similar models I could consider as alternatives?
Consider other heavy-duty surface mount closers in our Falcon collection. Compare power ratings, finishes, and features to find the best match for your application.
12) How does this closer perform in high-traffic environments?
The heavy-duty cast aluminum construction handles high-frequency use well. The robust internal mechanism provides reliable operation in schools, offices, and retail environments with proper maintenance.
