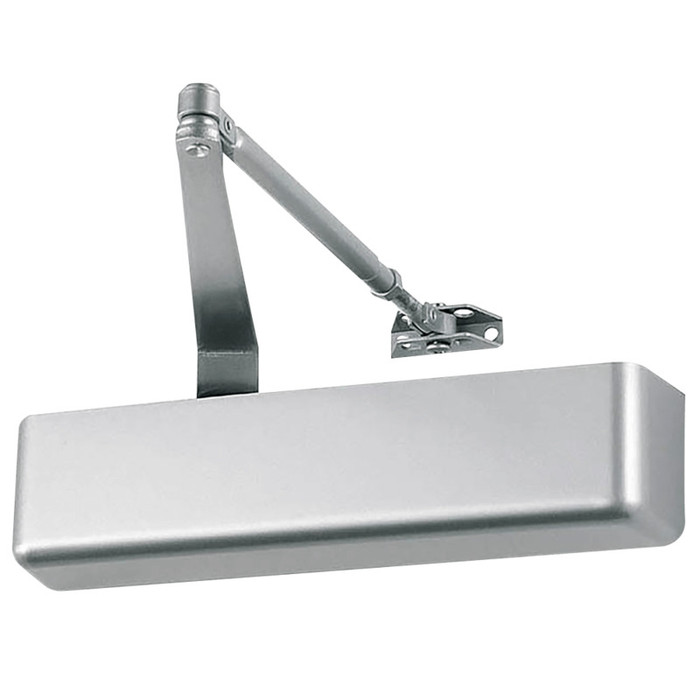

Falcon SC81A Series Surface-Mount Medium Duty - Cast Aluminum - Door Closer

OVERVIEW

The SC80A Series is a medium-duty closer made for light- to medium-duty applications, both interior and exterior. It is ideal for side doors, closets and bathrooms in schools, retail shops, restaurants and small office buildings.

The closer’s adjustable design provides flexible installation and ADA compliance, including adjustable spring sizes and a non-handed design. The SC80A Series also features 1-1/4” heat-treated steel pistons and heat-treated pinions. The single-piece aluminium body is designed and tested to ANSI/BHMA A156.4 Grade 1 standards and is also backed by a 10-year warranty.

FEATURES & BENEFITS

Body construction

• Single-piece cast aluminium body
• Heat-treated pinion and steel piston
• Industry common hole pattern that retrofits to Norton 8000



Quality and durability

• UL 10C approved fluid
• Separate adjustable general speed, latch speed and backcheck
• 10-year warranty



Installation

• Universal non-handed
• Universal screw pack
• Adjustable spring sizes 1-6

SPECIFICATIONS

• UL listed and compliant with the UL 10C and UBC 7-2 (1997) fire test
• Tests to ANSI/BHMA A156.4 Grade 1 standards
• The SC81A meets the American Disabilities Act (ADA) and ANSI A117.1

DESIGNS & FINISHES

• Available in:
• Aluminium
• Dark bronze
• Brass
• Matte Black*

• Standard non-handed slim line cover and optional non-handed full plastic cover

MOUNTING/ARM OPTIONS

The SC80A Series mounts hinge pull side, push side top jamb, push side parallel arm and hold open parallel arm. Visit the SC80A Series catalog pages for mounting details, arm options and accessories.

DOWNLOADS & RESOURCES

Falcon Closers Catalog
Falcon SC80A Data Sheet
Multi-Family Suiting Solutions

REFERENCE NOTES:

1) SC81 delay action, SS, and SS/HO arms are not available in matte black.
2) SC81/SC81A ships standard with a SLIM Cover.
3) SC81/SC81A is fully adjustable 1-6

IMPORTANT ORDERING INFORMATION:

SC81 - SS, SSHO and Delayed Action Cylinder Not Available in Matt Black (622)
