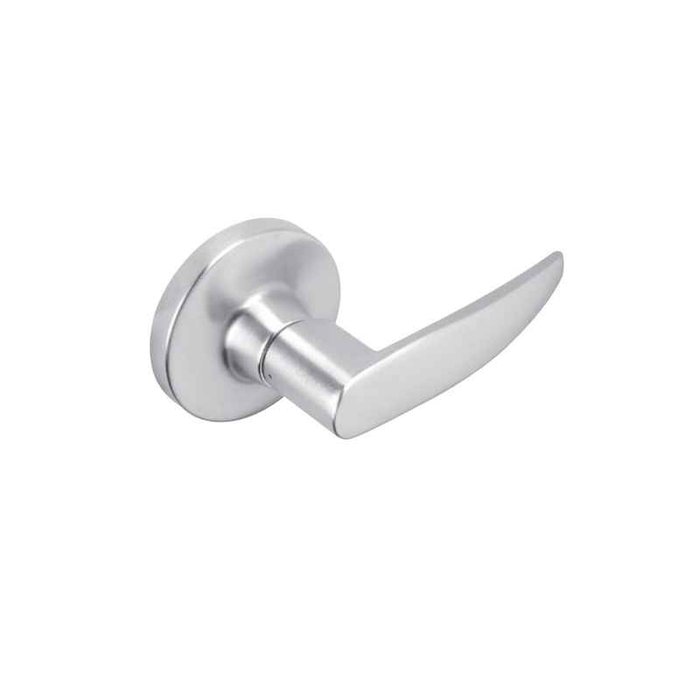

Falcon T12 Grade 1 Heavy-Duty Cylindrical Dummy Lever Lock with Non-Handed Design

Falcon T12 Grade 1 Heavy-Duty Cylindrical Dummy Lever Lock with Non-Handed Design

Professional Grade 1 Cylindrical Lock Solution

The Falcon T12 dummy trim cylindrical lever lock delivers Grade 1 performance with heavy-duty compression spring construction designed for high-traffic commercial applications. This non-handed design accommodates door thicknesses from 1-3/4" to 2-1/8" and features a 3-1/2" diameter rose with 2-3/4" backset configuration. UL 3-hour fire rated and ANSI/BHMA A156.2 Series 4000 Grade 1 certified for demanding institutional and commercial environments.

Professional Features & Benefits

• Adjustable Door Compatibility: Accommodates door thicknesses from 1-3/4" to 2-1/8" for versatile installation across common door specifications.
• Heavy-Duty Compression Springs: Compression spring design behind the rose provides consistent lever return and prevents lever sag, exceeding ANSI/BHMA cycle test requirements for long-lasting performance.
• Pressure Release Lever Protection: Standard Pressure Release™ lever rotation prevents damage to internal lock components when subjected to excessive force, ideal for high-abuse applications.
• Through-Bolt Construction: Trim secured with two 10-32 screws coated with thread sealant for robust mounting and tamper resistance.
• Non-Handed Design: Does not require field disassembly for re-handing, simplifying installation and inventory management.
• Universal Cylinder Compatibility: Accepts most manufacturers’ conventional key systems, small format interchangeable cores (SFIC), and Schlage full size interchangeable cores (FSIC).
• Vandal-Resistant Features: Inside levers attached by Allen-head set screw prevents tampering and unauthorized removal.
• ADA Compliance: Lever designs exceed ADA and state disability requirements for accessible operation.

Technical Specifications

• Commercial/Residential: Commercial
• Department: Door Hardware
• Door Hand Direction: Non-Handed
• Duty Level: Heavy Duty
• Electronic: No
• Grade: Grade 1
• Handle Type: Lever
• Keyed: No
• Keyed Function: Non-Keyed
• Lock Function: Dummy
• Lock Type: Cylindrical
• Product Attribute: Cylindrical Locks
• Product Category: Mechanical Locks
• Product Function: Dummy
• Product Group: Mechanical Locks
• Product Model: T12
• Product Subgroup: Bored Locksets
• Product Type: Leversets
• Rose Diameter: 3-1/2"
• Series: T Series
• Subcategory: Cylindrical Locks

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness from 1-3/4" to 2-1/8", 2-3/4" backset, and standard cylindrical lock bore dimensions.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door surfaces for proper alignment.
3. Prepare door by drilling required 2-1/8" bore hole and 1" edge bore according to ANSI A115 standards for cylindrical locks.
4. Install all mounting hardware and secure the device to door with through-bolt construction using two 10-32 screws per manufacturer torque specifications.
5. Adjust operational components for proper alignment and smooth lever operation throughout the full range of motion, ensuring ADA compliance.
6. Test device operation to verify proper function and Pressure Release™ lever rotation. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Multi-Family Residential Properties
• Retail Establishments
• Educational Institutions
• Government and Military Facilities
• Commercial Office Buildings
• Healthcare Facilities
• Industrial and Warehouse Applications

Why Choose Falcon Quality?

Falcon T12 cylindrical locks deliver professional-grade reliability with heavy-duty compression spring construction that exceeds ANSI/BHMA Grade 1 cycle test requirements. UL 3-hour fire rated and certified to ANSI/BHMA A156.2 Series 4000 Grade 1 standards for demanding commercial applications. Engineered for high-traffic institutional environments where dependable performance and vandal resistance are essential.
