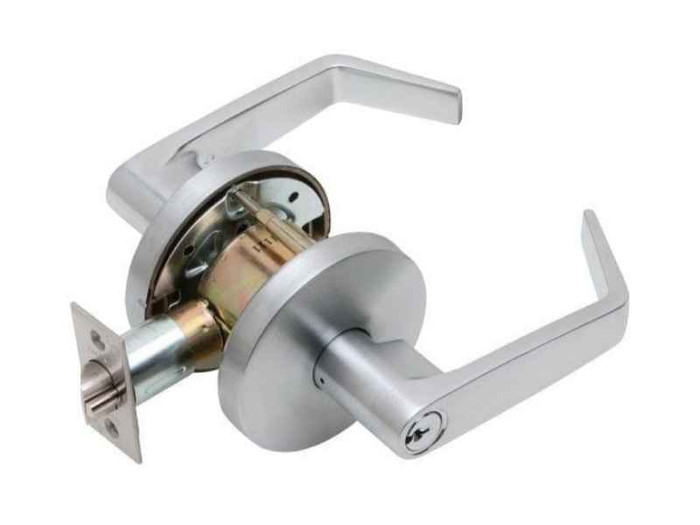

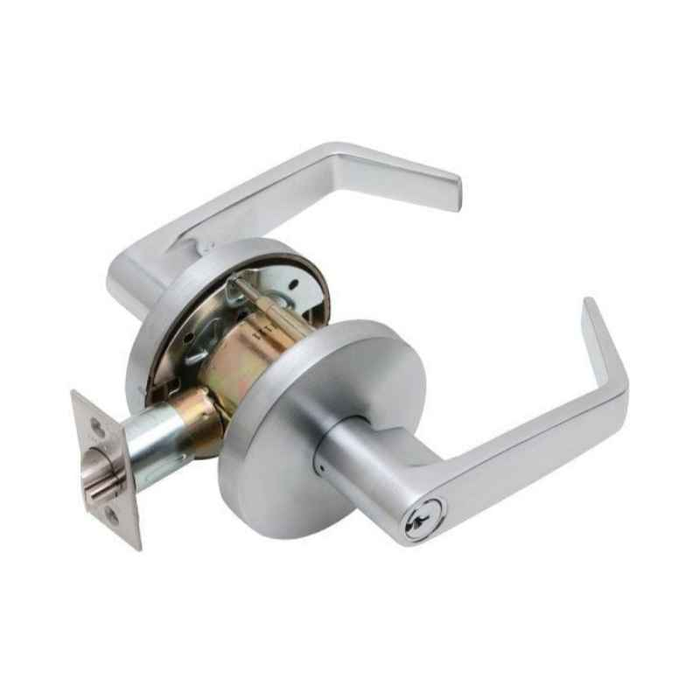

Falcon W511 Grade 2 Entry/Office Cylindrical Lever Lock
The Falcon W511 Grade 2 cylindrical lever lock delivers reliable entrance/office function for commercial applications requiring medium-duty performance. Designed for door thickness 1-3/8" to 1-3/4" with a standard 2-3/4" backset, this non-handed lock accepts interchangeable cores for fast re-keying and meets ANSI/BHMA A156.2 Series 4000 Grade 2 standards. UL listed for 3-hour fire door applications with heavy-duty torsion springs to prevent lever sag.
Key Features
- Door Compatibility: Fits door thickness 1-3/8" to 1-3/4" with standard 2-3/4" backset.
- Grade 2 Construction: ANSI/BHMA A156.2 Series 4000 Grade 2 certified for reliable commercial performance.
- Heavy-Duty Torsion Springs: Prevent lever sag and maintain consistent operation over the lock's service life.
- Non-Handed Design: Installs on any door without field disassembly for re-handing.
- Interchangeable Core System: Compatible with SFIC and conventional 6-pin cylinders; cores from other manufacturers accepted for flexible key management.
- 3-Hour Fire Rating: UL listed for 3-hour fire door applications with A label certification.
- Stainless Steel Latch: 1/2" throw with self-adjusting fronts to accommodate beveled or flat doors.
- 10-Year Limited Warranty: Manufacturer-backed coverage for commercial installations.
Technical Specifications
- ANSI/BHMA: F109
- Backset: 2-3/4"
- Door Thickness: 1-3/8" to 1-3/4"
- Duty Level: Medium Duty
- Grade: Grade 2
- Lock Function: Entrance/Office
- Lock Type: Cylindrical
- Handle Type: Lever
- Keyed Function: Single Cylinder
- Cylinder and Keyways: G Keyway
- Door Hand Direction: Non-Handed
- Standard Latch: 1/2" Throw
- Standard Strike: ANSI 1-1/4" x 4-7/8" Curved Lip
- Series: W Series
- Model: W511
Installation Overview
- Verify door preparation: thickness 1-3/8" to 1-3/4", backset 2-3/4".
- Use manufacturer templates to mark mounting hole locations on door and frame.
- Drill and rout required holes per manufacturer instructions.
- Install mounting hardware and secure to door and frame per torque specifications.
- Adjust latch and lever alignment for smooth operation.
- Test full operation and make final adjustments. Refer to manufacturer documentation for complete details.
Typical Applications
- Commercial Office Buildings
- Educational Facilities
- Healthcare Institutions
- Retail Establishments
- Multi-Family Residential Properties
- Government and Municipal Buildings
- Industrial and Warehouse Facilities
Why Falcon W511?
The W511 combines Grade 2 durability, a 3-hour UL fire rating, and interchangeable core flexibility in a non-handed cylindrical lever lock backed by a 10-year limited warranty — a dependable choice for property managers, contractors, and facilities teams specifying commercial entrance hardware.
Manufacturer Resources
Falcon Locks Catalog
Product Specs
- Series:
- W Series
- Grade:
- Grade 2
- Duty Level:
- Medium Duty
- Keyed Function:
- Single Cylinder
- Standard Latch:
- 1/2" Throw
- Standard Strike:
- ANSI 1-1/4" x 4-7/8" Curved Lip
- ANSI/BHMA:
- F109
- Product Group:
- Mechanical Locks
- Product Subgroup:
- Bored Locksets
- Product Type:
- Leversets
- Subcategory:
- Cylindrical Locks
- Keyed:
- Yes
- Electronic:
- No
- Commercial/Residential:
- Commercial
- Cylinder and Keyways:
- G Keyway
- Lock Type:
- Cylindrical
- Handle Type:
- Lever
- Lock Function:
- Entrance/Office
- Product Attribute:
- Cylindrical Locks
- Tags:
- falcon w511, w511 falcon
- Product Model:
- W511
- Product Function:
- Entrance/Office
- Door Hand Direction:
- Non-Handed
- Collection:
- W511 series
- Product Category:
- Mechanical Locks
- Backset (Distance):
- 2-3/4"
- Department:
- Door Hardware
Falcon W511PD-D 626 – Frequently Asked Questions
1) What is the primary use for the Falcon W511 cylindrical lever lock?
The W511 is designed for entry office applications where controlled access is required. It provides keyed entry from the outside with free egress from the inside. Suitable for interior office doors, conference rooms, and administrative areas.
2) What door thickness does the W511 accommodate?
Standard Falcon cylindrical locks typically fit doors from 1-3/8" to 1-3/4" thick. Verify your specific door thickness before installation. Extended spindles may be available for thicker doors.
3) How do I determine the correct handing for this lock?
Stand on the side where the door swings away from you. If hinges are on the right, it's right-handed. If hinges are on the left, it's left-handed. Most cylindrical locks are reversible in the field.
4) What finish options are available for the W511?
Falcon typically offers finishes including satin chrome, bright brass, satin brass, and dark bronze. Verify available finishes for your specific model number. Choose finishes that match existing hardware for consistency.
5) What does Grade 2 certification mean for this lock?
Grade 2 meets ANSI/BHMA standards for medium-duty commercial use. It provides 400,000 cycle life, specific torque requirements, and security testing. Suitable for most office and light commercial applications.
6) Can the W511 be keyed to match existing locks?
Yes, the cylinder can be keyed alike or different. Provide your existing key code to match current locks. Master keying systems are also possible with proper planning and professional keying services.
7) What backset does this lock require?
Standard backset is typically 2-3/4" for most cylindrical locks. Some models offer adjustable backsets or 2-3/8" options. Check the manufacturer template for exact measurements and door prep requirements.
8) What tools are needed for installation?
Basic installation requires a screwdriver and door prep tools if needed. Use a 2-1/8" hole saw for the cross bore and 1" spade bit for the edge bore. Follow the manufacturer template for precise measurements.
9) How do I adjust the latch if it doesn't align properly?
Check strike plate alignment first. Adjust strike position if needed. Verify door prep dimensions match template. Latch should extend fully and retract smoothly. File strike opening slightly if binding occurs.
10) What other Falcon models are similar to the W511?
Other Falcon W-series locks offer different functions like passage, privacy, or classroom functions. Browse our door hardware section for compatible Falcon cylindrical locks and related products.
11) Can this lock be used on fire-rated doors?
Check the lock's fire rating and door manufacturer requirements. Fire-rated applications may require specific hardware listings. Consult local codes and the door manufacturer before installation on fire-rated assemblies.
12) What maintenance does the W511 require?
Regular cleaning with mild soap and water maintains finish. Lubricate moving parts annually with graphite or light oil. Check mounting screws periodically. Avoid harsh chemicals that can damage finishes or internal components.
