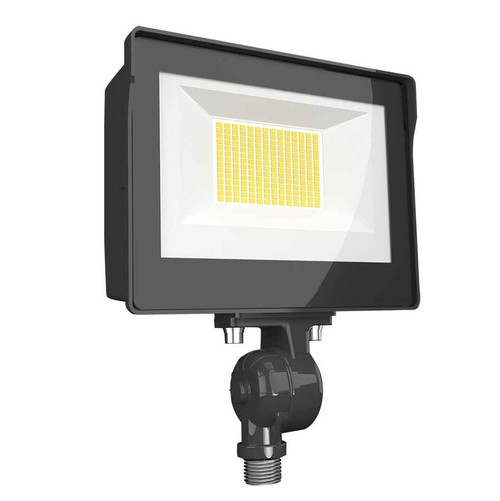

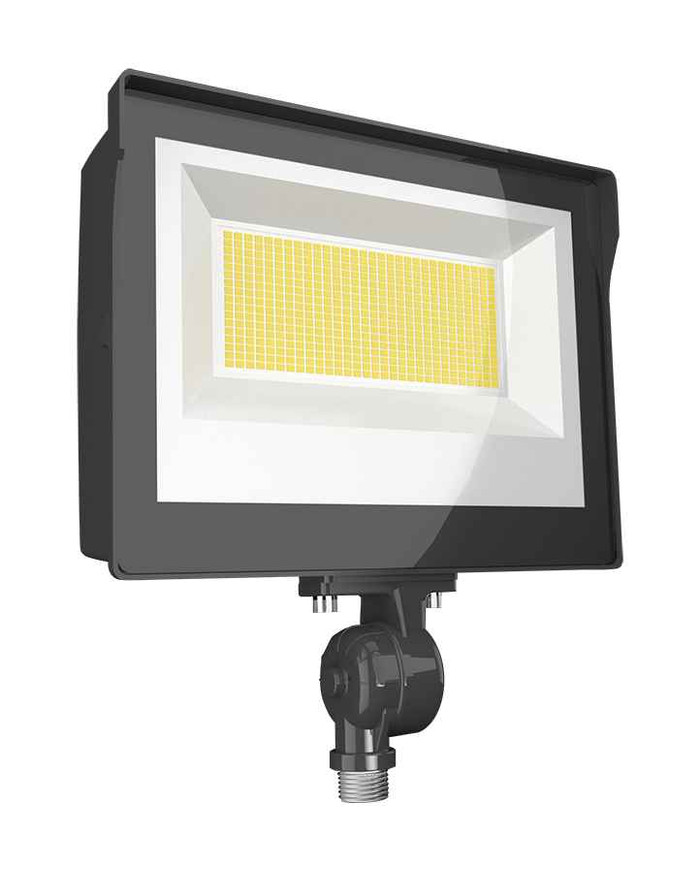

RAB X17 80W LED Floodlight with Field Adjustable CCT 5000K/4000K/3000K Knuckle Mount Bronze

RAB X17 80W LED Floodlight with Field Adjustable CCT 5000K/4000K/3000K Knuckle Mount Bronze

Professional LED Floodlight with Field Adjustable Color Temperature Technology

The RAB X17 80W LED Floodlight delivers exceptional versatility with field adjustable color temperature technology, allowing selection between 5000K, 4000K, and 3000K to match specific application requirements. This professional-grade floodlight features a durable bronze finish knuckle mount design with 120-277V input voltage compatibility and DLC Premium 5.1 certification for energy efficiency programs.

Professional Features & Benefits

• Field Adjustable CCT Technology: Switch between 5000K, 4000K, and 3000K color temperatures on-site to optimize lighting for specific environments and preferences.
• High Lumen Output: Delivers 10,712/11,509/11,325 lumens depending on CCT selection, providing powerful illumination for large area coverage.
• Universal Voltage Compatibility: 120-277V input voltage accommodates diverse electrical systems with efficient operation across all voltages.
• DLC Premium 5.1 Certification: Qualifies for utility rebates and energy efficiency programs while ensuring superior performance standards.
• 100,000 Hour LED Life: Long-lasting LED technology reduces maintenance costs and provides reliable operation for years of service.
• Durable Bronze Finish: Weather-resistant bronze finish with knuckle mount design ensures reliable outdoor performance and flexible positioning.
• High Efficacy Performance: Achieves 130.7/146.1/138 lumens per watt efficiency across CCT settings for optimal energy utilization.

Technical Specifications

• Amps 120: 0.80A
• Amps 208: 0.45A
• Amps 240: 0.40A
• Amps 277: 0.32A
• Department: Electrical
• Dlc Type: DLC Premium
• Dlc Version: 5.1
• Driver Info: Constant Current
• Efficacy: 130.7/146.1/138
• Height: 3.82
• Input Voltage: 120-277V
• Input Watts: 82/78.8/82.1
• Lamp Hours: 100000
• Lamp Info: LED
• Lamp Lumens: 10712/11509/11325
• Product Finish: Bronze
• Product Group: Lighting
• Product Length: 15.16
• Product Subgroup: Flood Lights
• Watts: 80
• Weight: 5.07
• Width: 12.4

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial Building Perimeter Lighting
• Parking Lot and Garage Illumination
• Warehouse and Industrial Facility Lighting
• Retail and Office Building Exterior
• Security and Area Lighting Applications
• Architectural and Landscape Accent Lighting
• Municipal and Public Space Illumination

Why Choose RAB Quality?

RAB delivers professional-grade LED floodlight technology with DLC Premium 5.1 certification and 100,000-hour LED life rating. The durable bronze finish construction and constant current driver ensure reliable performance in demanding outdoor environments, backed by field-proven engineering and quality manufacturing standards.
