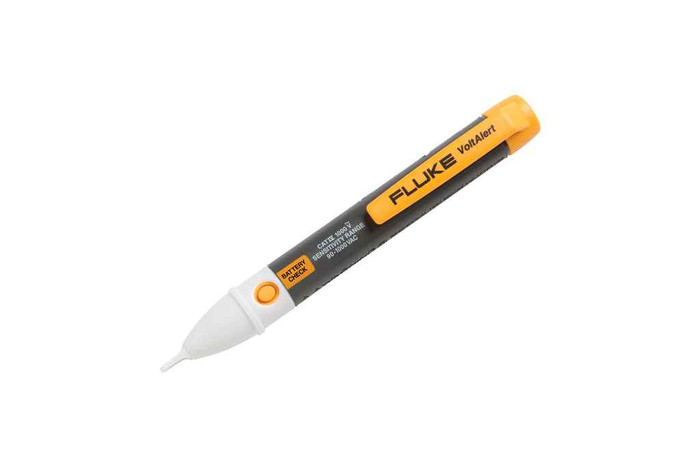

Fluke 2AC Non-Contact Voltage Tester 90-1000V AC CAT IV Professional Detection System

Fluke 2AC Non-Contact Voltage Tester 90-1000V AC CAT IV Professional Detection System

Always-On Professional Voltage Detection for Electrical Safety

The Fluke 2AC Non-Contact Voltage Tester delivers reliable voltage detection from 90V to 1000V AC with CAT IV 1000V safety rating for professional electrical applications. This pocket-sized tester features innovative always-on technology using special low power circuitry to ensure readiness when you need it most. Built with Fluke's renowned ruggedness and reliability, the 2AC includes integrated clip design optimized for convenient pocket storage and powered by 2x AAA batteries for extended field use.

Professional Features & Benefits

• 90-1000V AC Detection Range: Wide voltage range suitable for residential, commercial, and industrial electrical applications with comprehensive coverage.
• CAT IV 1000V Safety Rating: Best-in-class overvoltage protection ensures maximum user safety in demanding electrical environments.
• Always-On Technology: Special low power circuitry maintains continuous readiness while extending battery life for reliable field performance.
• Battery Check Function: Innovative button ensures battery condition for confident operation and reduces unexpected downtime.
• Integrated Clip Design: Optimized pocket storage solution provides convenient portability and quick access during electrical work.
• Two-Year Warranty: Professional warranty coverage demonstrates Fluke's commitment to quality and long-term reliability.
• Non-Contact Operation: Safe voltage detection through insulation without requiring direct contact with energized circuits.

Technical Specifications

• Altitude: 2000 m (CAT IV 1000 V)
• Battery Life: Typical battery life of greater than one year
• Cleaning: Clean with damp cloth
• Emc Compliance: Meets IEC 61326-1:2006
• Operating: 90 V AC to 1000 V AC, CAT IV 1000 V rated
• Operating Humidity Ranges: 0% to 45% (40�C to 55�C)
• Operating Principles: Senses the steady state electrostatic �eld produced by AC voltage through insulation without requir
• Safety Compliance: Meets IEC 61010-1:2001, UL 61010-1 (2nd ed.), CAN/CSA-C22.2 No. 61010-1-04, and ISA-82.02.01 Pollut
• Temperature Operating And Storage : -10�C to 50�C (-14�F to 122�F)
• Warranty Period: Two years

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential Electrical Maintenance and Troubleshooting
• Commercial Building Electrical Systems
• Industrial Facility Power Distribution
• Electrical Contractor Field Work
• Maintenance and Repair Operations
• Safety Verification Before Electrical Work
• Educational and Training Environments

Why Choose Fluke Quality?

Fluke delivers professional-grade reliability with CAT IV 1000V safety rating and comprehensive safety compliance including IEC 61010-1:2001 and UL 61010-1 standards. The two-year warranty and typical battery life exceeding one year demonstrate Fluke's commitment to long-term performance and user confidence in demanding electrical applications.
