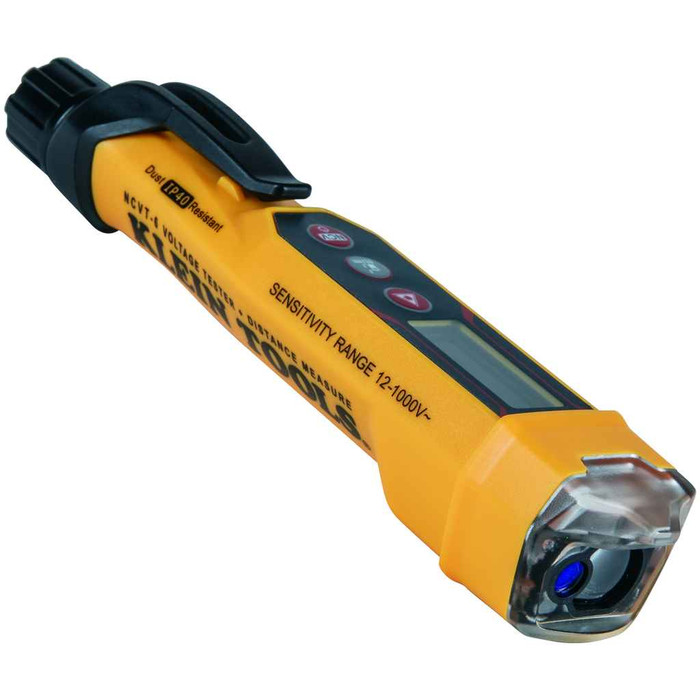

Klein Tools Non-Contact Voltage Tester with Laser Distance Meter 12-1000V AC CAT IV Professional Detection System

Klein Tools Non-Contact Voltage Tester with Laser Distance Meter 12-1000V AC CAT IV Professional Detection System

Professional dual-function testing tool with 66-foot laser measurement capability

Klein Tools delivers professional-grade voltage detection and distance measurement in one compact tool. This non-contact voltage tester detects AC voltage from 12 to 1000V with CAT IV 1000V safety rating, while the integrated 66-foot laser distance meter provides precise measurements with accuracy up to 1/16-inch. Built with IP40 dust resistance and 6.6-foot drop protection for reliable field performance.

Professional Features & Benefits

• 12-1000V AC Detection Range: Comprehensive voltage sensing capability covers residential through industrial applications with CAT IV 1000V safety rating for maximum protection.
• 66-Foot Laser Distance Meter: Integrated measurement system delivers 1/16-inch accuracy from 2 inches to 32.8 feet, extending to 1/8-inch accuracy up to 65.6 feet for versatile job site applications.
• Audible Frequency Response: Variable beep frequency increases with higher voltage detection or closer proximity to voltage source, providing intuitive feedback for safe operation.
• IP40 Dust Resistance: Professional ingress protection rating ensures reliable performance in dusty work environments while maintaining precision detection capabilities.
• 6.6-Foot Drop Protection: Rugged construction withstands job site impacts and drops up to 6.6 feet, ensuring continued accuracy and reliability in demanding conditions.
• Auto Power-Off Function: Intelligent power management extends battery life through automatic shutdown, reducing maintenance requirements and ensuring tool availability.
• High-Visibility Reverse Contrast Display: Enhanced LCD readability in low-light conditions improves measurement accuracy and reduces eye strain during extended use.

Technical Specifications

• Accuracy: 1/16" from 2" to 32.8'; 1/8" from 32.8' to 65.6'
• Batteries: 2 x AAA
• Department: Electrical
• Drop Protection: 6.6' (2 m)
• Frequency: 50 - 500 Hz
• Ingress Protection: IP40 Dust Resistant
• Item Depth: 6.4500 in
• Item Height: 1.2100 in
• Item Weight: 0.1560 lbs
• Item Width: 1.3200 in
• Material: Plastic and Electronic Assemblies
• Overall Height: 1.32" (3.4 cm)
• Overall Length: 6.45" (16.4 cm)
• Overall Width: 1.21" (3.1 cm)
• Pollution Degree: 2
• Product Details: Non-Contact Voltage Tester
• Product Group: Test & Measurement
• Product Subgroup: Electrical Testers
• Product Type: Non-Contact Voltage Tester
• Product Voltage: 12-1000V AC
• Standard: CATIV 1000V, Laser: Class II, 630nm to 670nm, Max. Power <1mW
• Weight: 2.5 oz (72 g)

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential electrical troubleshooting and maintenance
• Commercial facility electrical inspections
• Industrial equipment voltage verification
• Security and entertainment system testing
• Environmental control system diagnostics
• Irrigation system electrical verification
• Professional electrical contractor services

Why Choose Klein Tools Quality?

Klein Tools delivers trusted professional-grade reliability with CAT IV 1000V safety certification and IP40 dust resistance. The rugged construction withstands 6.6-foot drops while maintaining precision accuracy, ensuring dependable performance for demanding electrical testing applications.
