Arlington Industries Zinc Die-Cast MC Feeder Cable Connector with Steel Strap - 2-1/2" Knockout

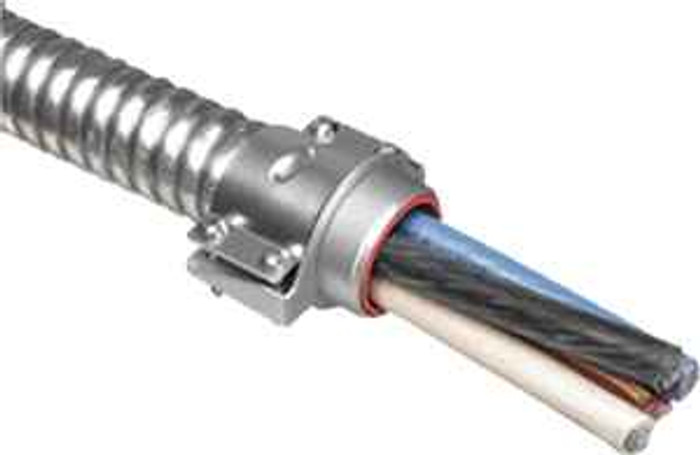

Arlington Industries Zinc Die-Cast MC Feeder Cable Connector with Steel Strap

Professional-Grade MC Cable Connection Solution

The Arlington Industries Zinc Die-Cast MC Feeder Cable Connector is an innovative cable connection system designed to solve complex steel and aluminum MC cable termination challenges. This zinc die-cast connector features an integrated steel strap and adjustable end stop system for 2-1/2" knockouts, delivering the reliability and versatility that electrical professionals demand for feeder installations.

Innovative Features & Benefits

Advanced Connection Technology

• Zinc Die-Cast Construction - Superior corrosion resistance and long-lasting durability in demanding environments
• Steel Strap Design - Provides secure mechanical connection and enhanced gripping strength
• Adjustable End Stop System - Accommodates wider range of cable sizes with included additional bushings
• 2-1/2" Knockout Compatibility - Perfect fit with steel locknut for professional installations

Installation Efficiency

• Concrete Tight Capability - Achieves watertight seal when properly taped for below-grade applications
• Universal Cable Compatibility - Works with both steel and aluminum MC feeder cables
• cULus Listed - Meets rigorous safety and performance standards

Technical Specifications

Knockout Size: 2-1/2", Material: Zinc die-cast body with steel components, Height: 3.218", Color: Silver finish, Listing: cULus certified, Standard Packaging: 5 pieces per package. Includes additional end stop bushings for expanded cable range compatibility.

Quick Installation Process

1. Select appropriate end stop bushing for your specific cable diameter
2. Insert MC feeder cable through connector and position end stop
3. Secure steel strap around cable for mechanical connection
4. Insert connector into 2-1/2" knockout opening
5. Tighten steel locknut from inside to secure connection
6. Apply appropriate tape for concrete tight applications when required

Perfect Applications

Ideal for:

• Commercial Feeder Systems - Office buildings, retail centers, and institutional facilities
• Industrial Power Distribution - Manufacturing plants, warehouses, and processing facilities
• Underground Applications - Concrete tight capability for below-grade installations
• Panel and Switchgear Connections - Main distribution panels and electrical switchgear
• Service Entrance Applications - Building service entrance and meter connections
• Heavy-Duty MC Cable Runs - Large diameter steel and aluminum MC cable terminations
• Wet Location Installations - Areas requiring moisture protection when properly sealed
• Code Compliance Projects - Applications requiring cULus listed components

Adjustable End Stop Advantage

Arlington's innovative end stop system with additional bushings eliminates the need for multiple connector sizes, reducing inventory requirements while ensuring proper cable termination across a wider range of MC feeder cable diameters.

Why Choose Arlington Innovation?

Since 1949, Arlington Industries has engineered solutions that solve real-world electrical installation challenges. This MC feeder connector combines robust zinc die-cast construction with practical features like adjustable end stops, delivering the reliability and installation efficiency that electrical professionals trust for critical feeder applications.
