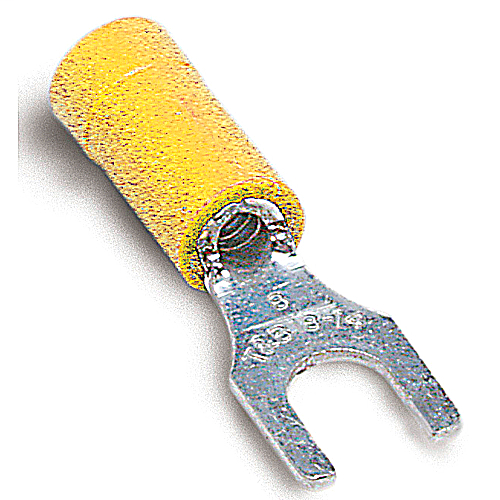

Fork Terminal
Features
- These fork terminals have extra-long PVC insulation sleeve for protection and stress relief at wire's flex point. Brazed seam barrel is serrated for high pull-out value. Insulation is color-coded.
Certifications
- CSA
- UL
Manufacturer Resources
Product Specs

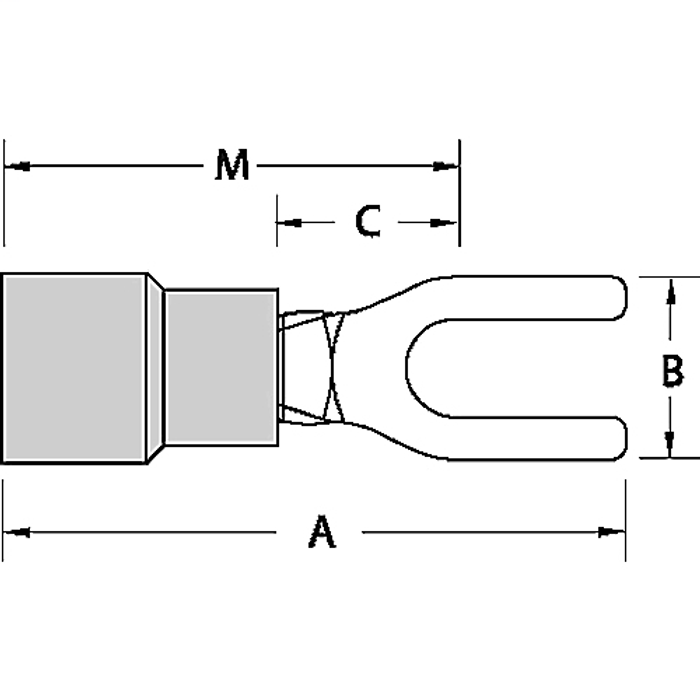

- A Inches :
- 1.15
- Alternate Package Qty:
- RC1167
- Application Tools:
- WT145C, WT2000, WT112M, ERG4001, ERG4003
- B Inches :
- 0.5
- C Inches :
- 0.37
- Color:
- Yellow
- Finish:
- Electro Tin-Plated
- Flammability Rating:
- UL 94 V-0
- Inner Package:
- 50
- Insulation Type:
- Insulated Vinyl
- M Inches :
- 0.9
- Material:
- Copper
- Maximum Insulation Inches :
- 0.21
- Order Multiple:
- 50
- Outer Package:
- 250
- Package Height:
- 8.9
- Package Length:
- 15
- Package Type:
- Standard
- Package Width:
- 9.5
- Product Group:
- Connectors
- Recommended Tool:
- ERG4001
- Rohs Compliance:
- Yes
- Stock Thickness:
- 0.04
- Stud Size:
- 4-Jan
- T B Sold In Uom:
- Each
- T B Weight Per Uom:
- 0.63 lbs. per 100
- Temperature Rating:
- 105°C
- Terminal Series:
- RC
- Voltage Rating:
- 600V
- Wire Range:
- 10-Dec
- Department:
- Electrical
- Product Subgroup:
- Terminals
