Fork Terminal
Features
- Inner bronze insulation grip sleeve lengthens flex radius of conductor and eliminates conductor creep. Nylon jacket is color-coded.
Certifications
- UL
- CSA
Manufacturer Resources
Product Specs

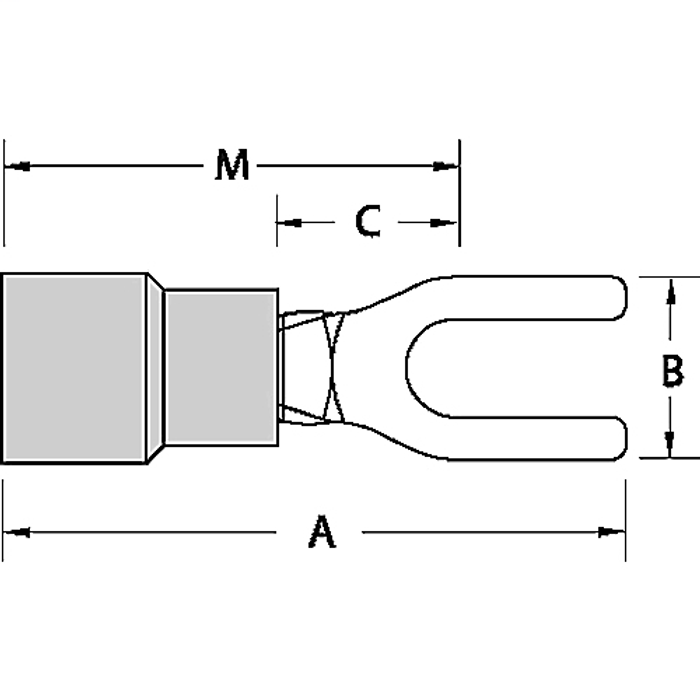

- A Inches :
- 0.95
- Alternate Package Qty:
- RA1163
- Application Tools:
- WT145C, WT2000, WT112M, ERG4001, ERG4003, WT145A
- B Inches :
- 0.44
- C Inches :
- 0.31
- Flammability Rating:
- UL 94 V-2
- Inner Package:
- 100
- Insulation Type:
- Insulated Nylon
- M Inches :
- 0.7
- Maximum Insulation Inches :
- 0.136
- Order Multiple:
- 100
- Outer Package:
- 500
- Package Height:
- 8.5
- Package Length:
- 12.5
- Package Type:
- Standard
- Package Width:
- 10
- Product Group:
- Connectors
- Recommended Tool:
- ERG4001
- Rohs Compliance:
- Yes
- Stock Thickness:
- 0.03
- Stud Size:
- 4-Jan
- T B Sold In Uom:
- Each
- T B Weight Per Uom:
- 0.31 lbs. per 100
- Temperature Rating:
- 105°C
- Terminal Series:
- RA
- Voltage Rating:
- 600V
- Wire Range:
- 22-16
- Department:
- Electrical
- Product Subgroup:
- Terminals
- Product Finish:
- Electro Tin-Plated
- Product Color:
- Red
- Product Material:
- Copper
