Fork Terminal
Features
- These fork terminals have extra-long PVC insulation sleeve for protection and stress relief at wire's flex point. Brazed seam barrel is serrated for high pull-out value. Insulation is color-coded.
Certifications
- UL
- CSA
Manufacturer Resources
Product Specs

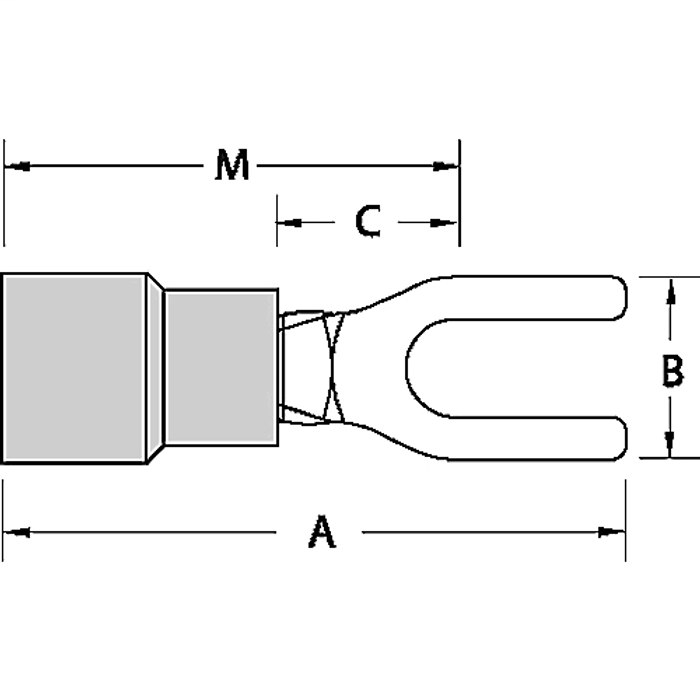

- A Inches :
- 0.97
- Alternate Package Qty:
- 14RB6F
- Application Tools:
- WT145C, WT2000, WT112M, ERG4001, ERG4003
- B Inches :
- 0.31
- C Inches :
- 0.27
- Color:
- Blue
- Finish:
- Electro Tin-Plated
- Flammability Rating:
- UL 94 V-0
- Inner Package:
- 20
- Insulation Type:
- Insulated Vinyl
- M Inches :
- 0.81
- Material:
- Copper
- Maximum Insulation Inches :
- 0.17
- Order Multiple:
- 20
- Outer Package:
- 100
- Package Height:
- 4.19
- Package Length:
- 16.7
- Package Type:
- Mini-Pack
- Package Width:
- 7.2
- Product Group:
- Electrical
- Recommended Tool:
- ERG4001
- Rohs Compliance:
- Yes
- Stock Thickness:
- 0.03
- Stud Size:
- #6
- T B Sold In Uom:
- Each
- T B Weight Per Uom:
- 3.75 lbs. per 1000
- Temperature Rating:
- 105°C
- Terminal Series:
- RB
- Voltage Rating:
- 600V
- Wire Range:
- 18-14
- parent sku:
- TB-14RB-6FCP
