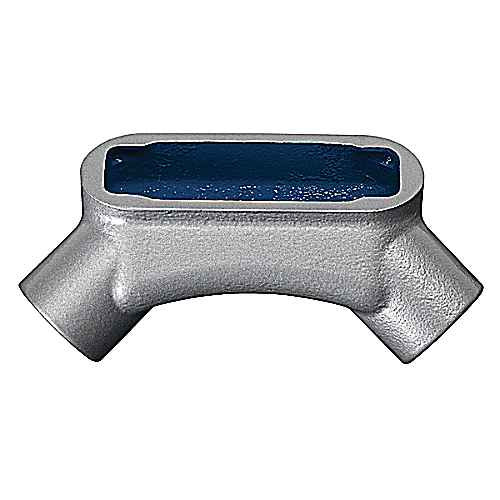

Form 7 Conduit Body
LU47 - spec sheet
Features
- Triple-layer protection...including two layers of epoxy coating which stops corrosion in its tracks.
- BlueKote Teflon based internal finish provides a slick, easy-glide internal surface which significantly lowers the amount of force necessary to pull wires.
- Eliminates rough internal surfaces that can cut into cable jacket, insulation and conductors during pulling and also reduces installation time and risk of installer strain.
LU47 - spec sheet
Manufacturer Resources
Product Specs
- Finish:
- Zinc-Plating with Acrylic Coating
- Form:
- 8
- Hub Size:
- 1-1/4 Inch
- Inner Dimensions Inches :
- 7.9x2.8x8.3
- Inner Quantity:
- 2
- Material:
- Iron
- Outer Dimensions Inches :
- 17x15.25x9.25
- Outer Quantity:
- 20
- Product Group:
- Conduit & Fittings
- Standard:
- UL E2969, CSA
- Type:
- Form 7 Conduit Body
- Unspsc:
- 39131708 Electrical conduit fitting body
- Weight Uom:
- 3.34 lbs. Each
- Department:
- Electrical
- Product Subgroup:
- Electrical Fittings
- Product Type:
- Form 7 Conduit Body
