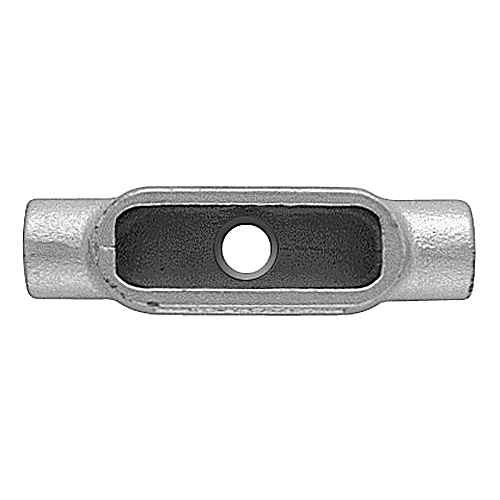

Form 7 Conduit Body
TB17-TB - spec sheet
Features
- T&B Form 7 bodies and covers are interchangeable with Crouse-Hinds and Appleton's Form 7 bodies and covers.
- Bodies are designed with a flat back, allowing more cubic inch capacity.
- Conduit bodies make 90 degree bends in conduit runs, act as mounting outlets for wiring devices and lighting fixtures and to provide access to conductors for maintenance and future system changes.
- Eliminates rough internal surfaces that can cut into cable jacket, insulation and conductors during pulling and also reduces installation time and risk of installer strain.
- Triple-layer protection...including two layers of epoxy coating which stops corrosion in its tracks.
TB17-TB - spec sheet
Manufacturer Resources
Product Specs
- Form:
- 7
- Hub Size:
- 1/2 Inch
- Outer Dimensions Inches :
- 9.5x3.5x7
- Outer Quantity:
- 5
- Product Group:
- Conduit & Fittings
- Standard:
- UL E2969, CSA
- Unspsc:
- 39131708 Electrical conduit fitting body
- Weight Uom:
- 137 lbs. per 100
- Department:
- Electrical
- Product Subgroup:
- Electrical Fittings
- Product Type:
- Form 7 Conduit Body
- Product Finish:
- Zinc Plated with Epoxy Powder Coat
- Product Details:
- Form 7 Conduit Body
- Product Material:
- Gray Iron
Thomas & Betts TB17-TB – Frequently Asked Questions
1) Will a Thomas & Betts TB17-TB Form 7 conduit body work with Crouse-Hinds or Appleton Form 7 bodies and covers?
Yes. T&B Form 7 bodies and covers are interchangeable with Crouse-Hinds and Appleton Form 7 bodies and covers, so the TB17-TB drops into a run where those brands are already installed and takes their Form 7 covers. That matters on repairs and additions where you need to match what is on the wall without re-piping.
2) Is the TB17-TB conduit body OK for a corrosive or damp industrial environment?
The body is gray iron finished zinc plated with an epoxy powder coat, and the T&B Form 7 line uses triple-layer protection including two layers of epoxy coating to stop corrosion. That is the finish package you want in wash-down areas, plants, and coastal exposure rather than a plain malleable fitting.
3) Why use a Form 7 conduit body instead of just bending the conduit?
A conduit body makes the 90 degree turn in a run without a field bend, and it leaves you a permanent access point for pulling and for future changes. It also serves as a mounting outlet for wiring devices and lighting fixtures. On the T&B Form 7, the flat back gives more cubic inch capacity than a rounded back, and the smooth interior avoids the rough surfaces that cut cable jacket and insulation during a pull.
4) Does the TB17-TB come with a cover and gasket?
The TB17-TB is the conduit body itself. Covers are ordered separately in the Form 7 line, and because T&B Form 7 covers interchange with Crouse-Hinds and Appleton Form 7 covers, you are not locked to one brand for the cover.
5) How is the TB17-TB packaged for a bulk order?
It ships in an outer quantity of 5 per carton, with the carton measuring 9.5 x 3.5 x 7 inches. Catalog weight for the item runs 137 lbs. per 100 pieces, which is useful if you are pricing freight on a large job order.
6) What is the exact part number to order this Thomas & Betts Form 7 conduit body under?
Order it as Thomas & Betts TB17-TB. That is the manufacturer part number for the 1/2 inch Form 7 gray iron body.
