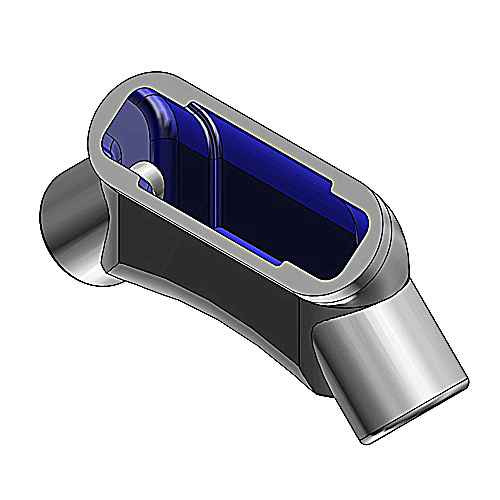

Form 8 Conduit Body
LU18 - spec sheet
Features
- Rated for 40% wire fill - avoids conduit system de-rating
- Angled cover port enables easier wire pulling and uses standard covers
- Radius is the same as the bend conduit. Pull wire through the body
- BlueKote four-layer protection provides internal and external corrosion resistance
- 4 to 1 SKU reduction - replaces LL, LR, LB, and C conduit bodies
- Uses standard covers
- UL Listed as an enclosure - splices are allowed inside the LU
LU18 - spec sheet
Manufacturer Resources
Product Specs
- Finish:
- Zinc-Plating with Acrylic Coating
- Form:
- 8
- Hub Size:
- 1/2 Inch
- Inner Dimensions Inches :
- 10.43x2.56x5.18
- Inner Quantity:
- 5
- Material:
- Iron
- Outer Dimensions Inches :
- 17.5x11.5x7.5
- Outer Quantity:
- 25
- Product Group:
- Conduit & Fittings
- Standard:
- UL E2969, CSA
- Type:
- Form 8 Conduit Body
- Unspsc:
- 39131708 Electrical conduit fitting body
- Weight Uom:
- 1.43 lbs. Each
- Department:
- Electrical
- Product Subgroup:
- Electrical Fittings
- Product Type:
- Form 8 Conduit Body
