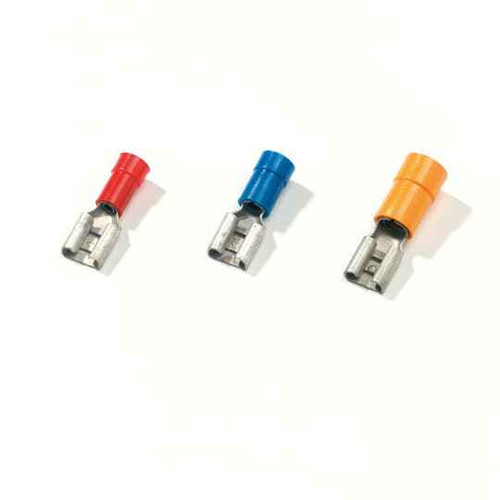

FULLY INSUL FEM NYL DISC 0.5-1.5MM2
Manufacturer Resources
Product Specs
- Country Of Origin:
- Sweden (SE)
- Product Subgroup:
- Disconnects
- Product Type:
- Polycarbonate Insulated Female Disconnect
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Red
- Product Material:
- Polycarbonate
Sta-Kon RA29V – Frequently Asked Questions
1) What wire size does the Sta-Kon RA29V insulated female disconnect accept?
The RA29V is sized for 0.5 to 1.5 mm2 conductor, which is the red color code range (roughly 22 to 16 AWG). The red insulation sleeve is the quick visual confirmation you have grabbed the small-wire terminal and not the blue 1.5-2.5 mm2 size.
2) Is the RA29V a male or female disconnect, and which one do I need?
The RA29V is the female half, the receptacle that slides onto a blade or tab. Use it on the wire going to a device that already has a male spade tab (switches, relays, solenoids). If your tab is on the wire end instead, you need the male disconnect, not this part.
3) Is the RA29V disconnect a fully insulated terminal, and does that matter for control panel work?
It is a fully insulated female disconnect, meaning the sleeve covers the barrel and the receptacle body rather than just the crimp barrel. That is what panel builders want where terminals sit close together on a terminal block or a stack of relay and switch tabs, because the mating end stays shrouded after it is pushed on.
4) What part number do I order for the Sta-Kon red fully insulated female disconnect?
Order Sta-Kon RA29V. That single manufacturer part number covers the red, fully insulated nylon/polycarbonate female disconnect for 0.5 to 1.5 mm2 wire; there are no size or finish options to specify with it.
5) What is the insulation on the Sta-Kon RA29V made of?
Polycarbonate (nylon type) insulation, not vinyl. Polycarbonate sleeves hold up better to heat and to crimping stress than PVC, which is why they get specified for appliance and control wiring rather than general automotive patch work.
6) Where is the Sta-Kon RA29V terminal made?
Country of origin is Sweden. That matters on jobs with origin documentation requirements, since the terminal ships with a non-US origin on record.
