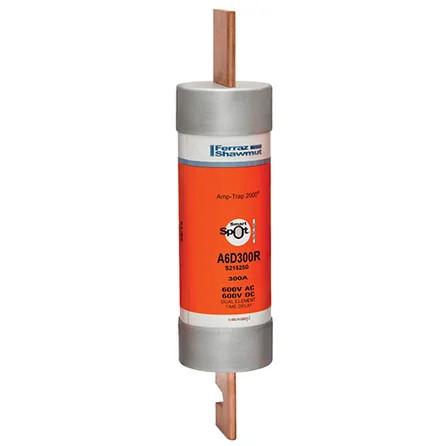

Mersen Class RK1 Time-Delay Fuse 300A 600VAC/600VDC with SmartSpot Indication System

Mersen Class RK1 Time-Delay Fuse 300A 600VAC/600VDC with SmartSpot Indication System

Professional Power Protection with Advanced Fault Indication Technology

The Mersen Class RK1 Time-Delay Fuse delivers reliable overcurrent protection for demanding electrical applications with 300A capacity and dual 600VAC/600VDC voltage rating. Featuring advanced SmartSpot indication technology and robust PolyTube construction with tin-plated copper blade terminals, this professional-grade fuse provides superior performance and visual fault indication for critical power systems.

Professional Features & Benefits

• 300A Current Rating: High-capacity protection suitable for heavy-duty electrical loads and industrial applications.
• Class RK1 Performance: Superior current-limiting characteristics with high interrupting capacity for enhanced system protection.
• Time-Delay Operation: Allows temporary overloads while providing fast protection against short circuits and sustained faults.
• SmartSpot Indication System: Visual fault indication technology enables quick identification of blown fuses for faster maintenance and reduced downtime.
• Dual Voltage Rating: 600VAC/600VDC compatibility provides versatility for both AC and DC power systems.
• 200kA Breaking Capacity: Exceptional fault current interruption capability ensures reliable protection under extreme conditions.
• Blade Terminal Design: Tin-plated copper terminals with clip mounting provide secure connections and easy installation.

Technical Specifications

• Ac Max I R Breaking Capacity I1: 200 kA
• Ac Or Dc: AC/DC
• Ampere Rating: 300 A
• Body Insulating Material: PolyTube
• Connection Terminal Material: Tin-Plated Copper
• Connection Terminal Type: Blade
• Frequency Hz : 50/60 Hz
• Fuse Class: Class RK1
• Indication System: Yes
• Indication System Type: SmartSpot�
• Mounting Method: Clip
• Product Length: 11.63 in
• Product Weight: 3.22 lb
• Rated Voltage Ac Ul: 600 V
• Rated Voltage Dc Ul: 600 V
• Rohs Compliant: Yes
• Speed Characteristic: Time Delay

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Industrial Motor Control Centers
• Commercial Power Distribution Systems
• Heavy-Duty Equipment Protection
• Manufacturing Facility Power Systems
• Data Center Electrical Infrastructure
• Process Control and Automation Systems
• Emergency Power and UPS Systems

Why Choose Mersen Quality?

Mersen fuses deliver proven reliability with RoHS compliant construction and advanced SmartSpot indication technology. The robust PolyTube body material and precision tin-plated copper terminals ensure long-term performance and dependable overcurrent protection for critical electrical systems.
